HPT-20T
Wireless Temperature Transmitter
Wireless temperature transmitter with a rotatable assembly, adjustable sampling and upload intervals, and a customizable probe length.
Rotatable antenna alignment4G / NB-IoT / LoRa / LoRaWANRemote parameter configuration
- Temperature range options
- -40 to 400 °C
- Additional temperature spans
- 0–100 °C / 0–200 °C / 0–400 °C configurations
- Radio options
- 4G, NB-IoT, LoRa or LoRaWAN
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview

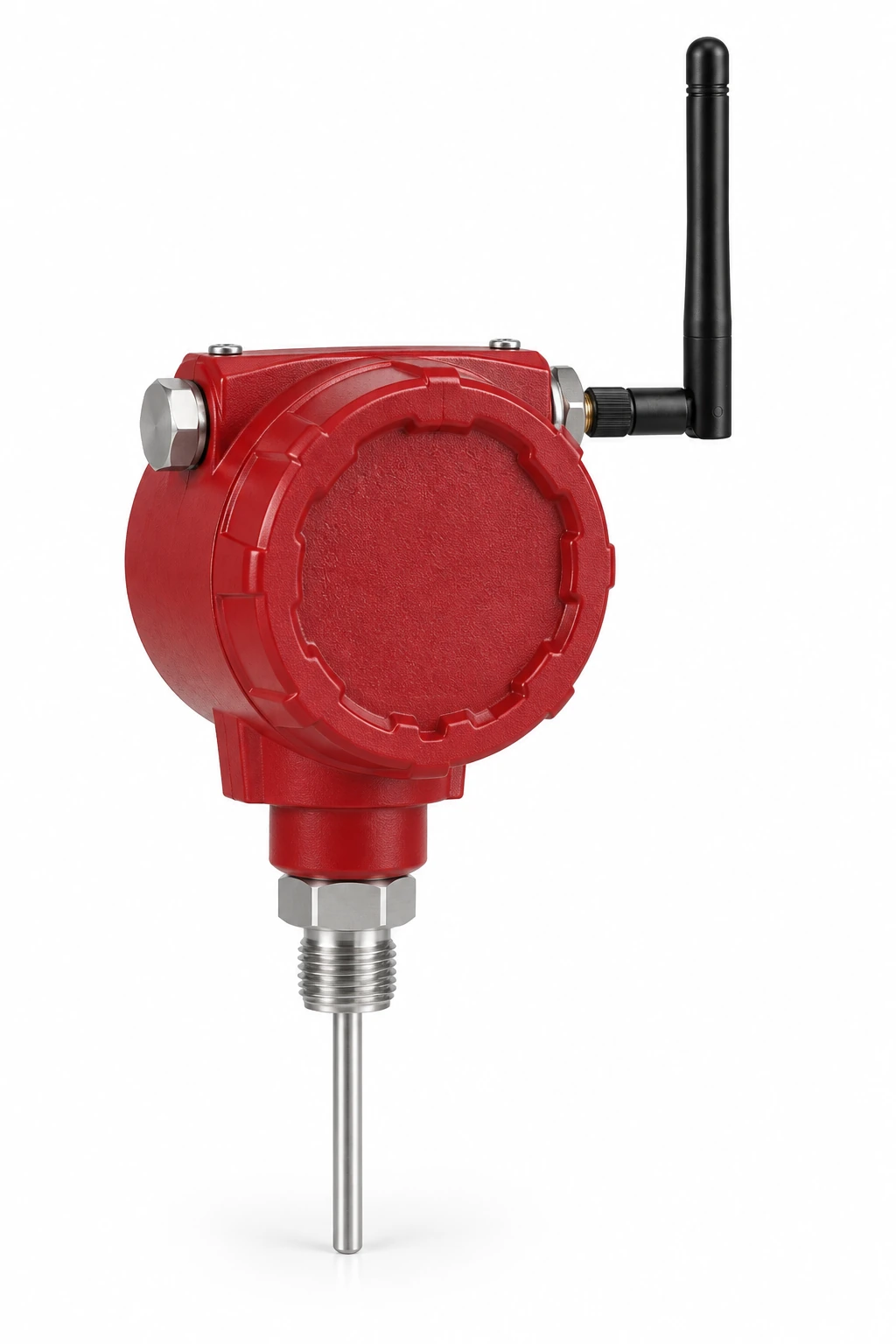

Wireless configuration and probe options
- Rotatable designRotatable assembly for antenna orientation.
- Remote configurationAdjustable sampling and upload intervals. Platform commands configure supported parameters.
- Optional alarm reportingOptional abnormal-condition and high/low temperature alarm reporting.
- Custom probe lengthCustom probe lengths from 10 mm.

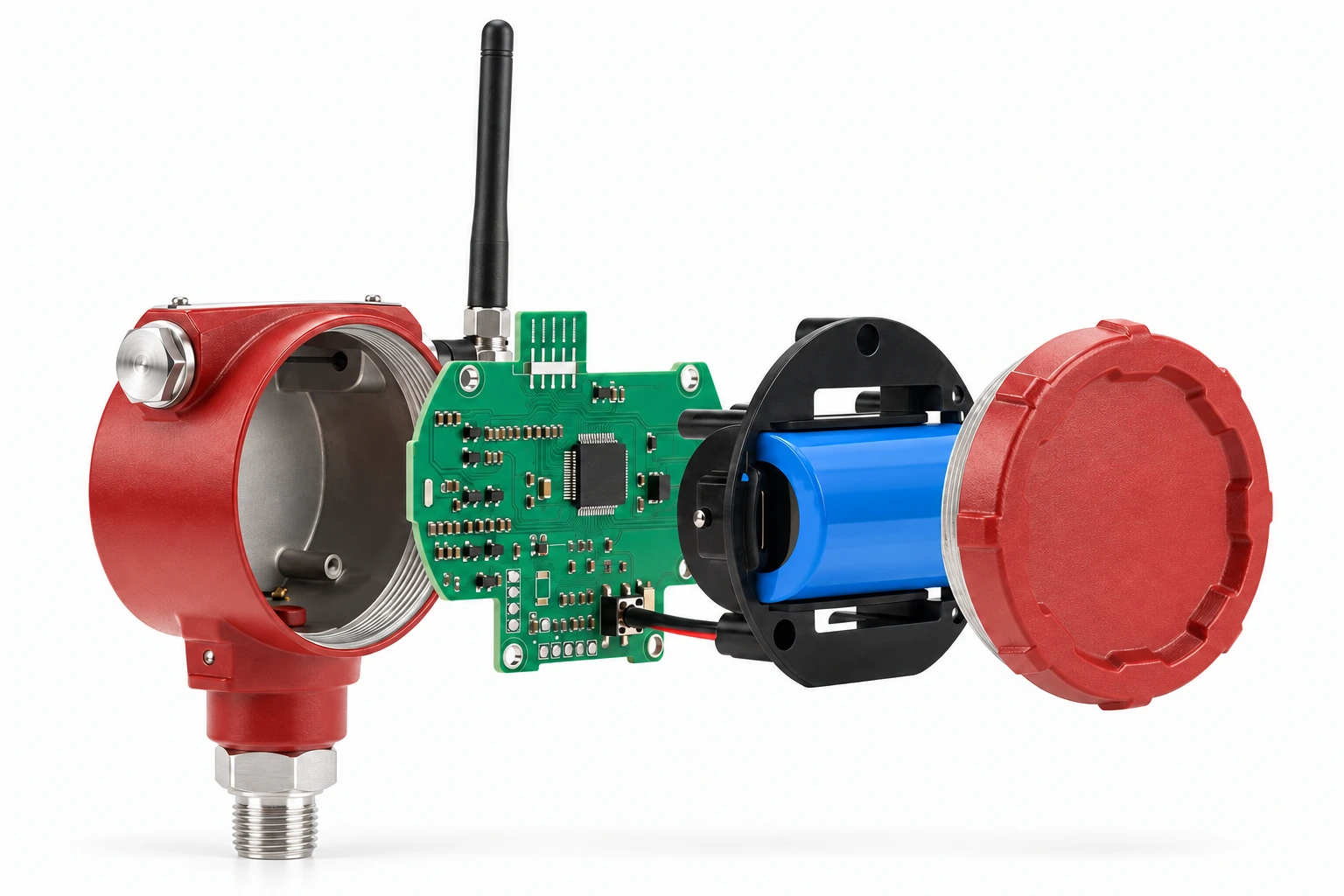

Enclosure components
- AntennaEnhances signal strength.
- Metal housingPainted metal housing.
- Main circuit boardLow-power design; 6 µA standby current.
- Battery compartmentShock-resistant design with reliable battery contacts and easy replacement.
- Metal coverIP67 protection for outdoor use.
- Threaded connectionThreaded interface.
Configuration and selection
- Temperature span
- 0–100 °C, 0–200 °C or 0–400 °C configuration.
- Wireless version
- 4G, NB-IoT, LoRa or LoRaWAN.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model and function | HPT-20T / Wireless Temperature Transmitter |
| Temperature range options | -40 to 400 °C |
| Additional temperature spans | 0–100 °C / 0–200 °C / 0–400 °C configurations |
| Sensor option | Pt100 RTD |
| Supply voltage | 3.6 V DC |
| Ingress protection | IP67 |
| Probe geometry | Custom probe length; options from 10 mm, configuration dependent |
| Antenna alignment | Rotatable assembly |
| Reporting settings | Adjustable sampling and upload intervals |
| Remote configuration | Supported parameters configurable by platform commands |
| Alarm options | Optional abnormal-condition and high/low temperature alarm reporting |
| Radio options | 4G, NB-IoT, LoRa or LoRaWAN |
| Brand | WKSENSOR |
| Product reference | HH-1011170707882 |
Application scenarios
Temperature monitoring for heating and steam pipelines, fermentation systems and liquid-cooling equipment.

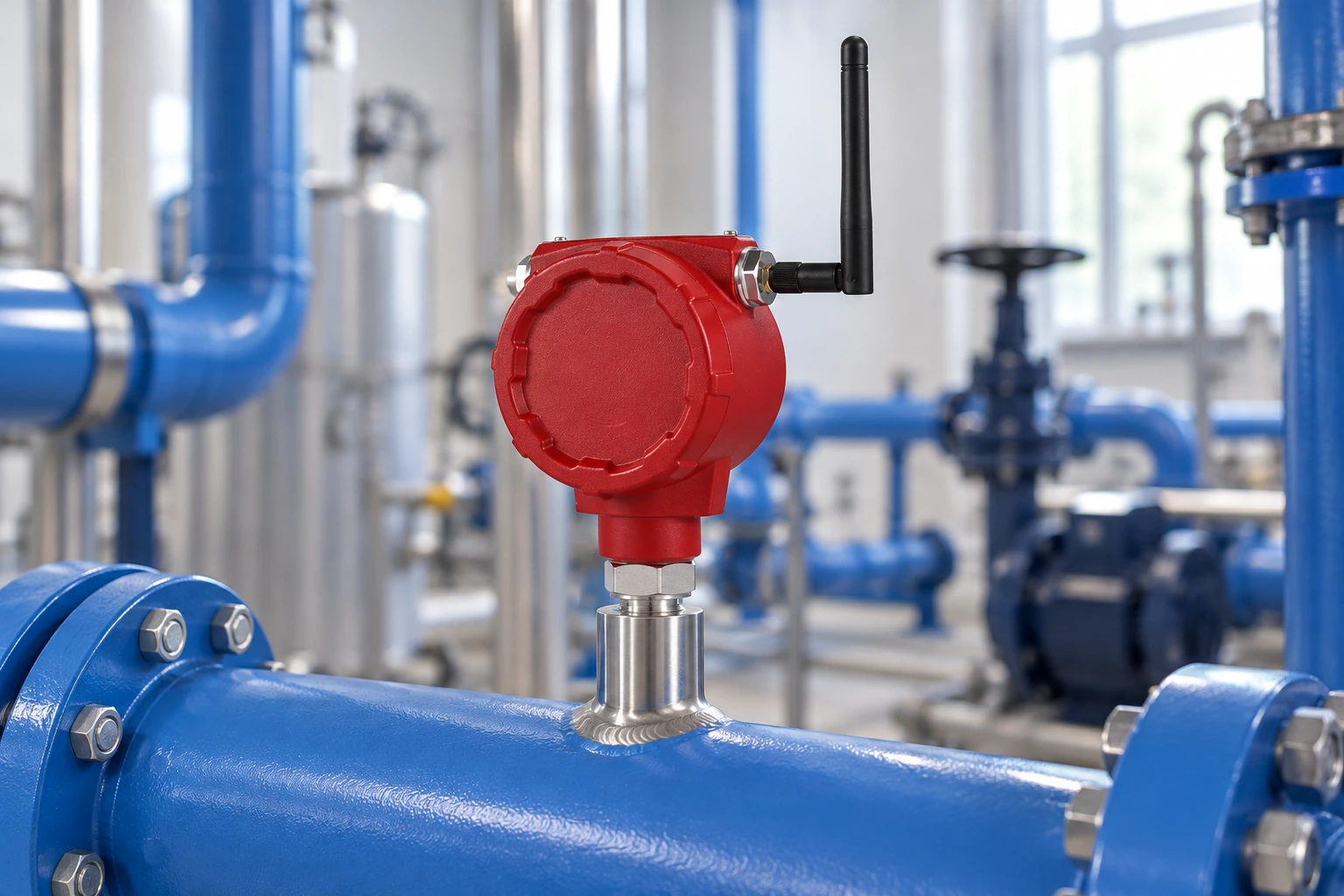

Smart buildings

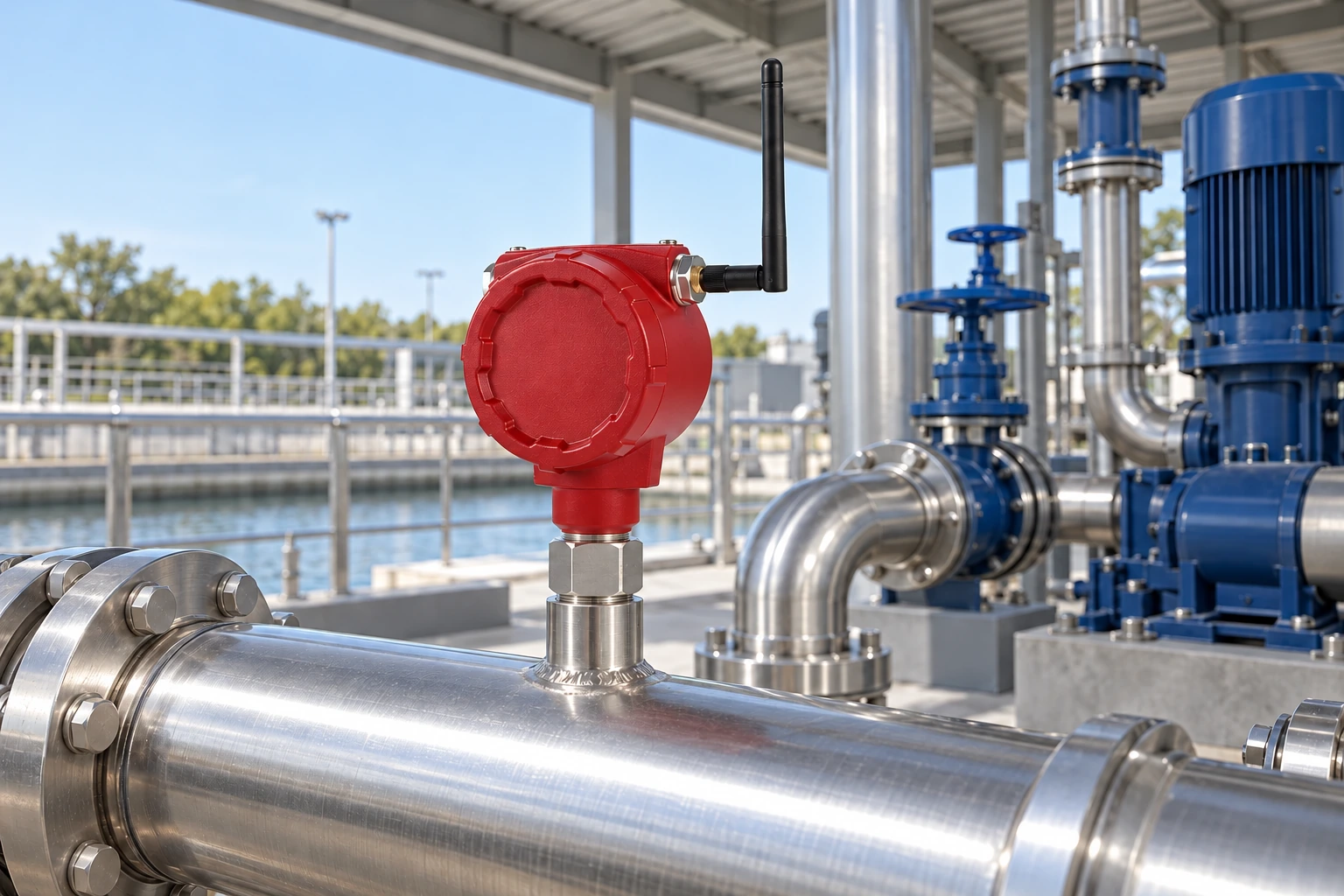

Smart water
Power systems, factories, oil and petrochemicals, and fire-protection monitoring.
