HPT-22TS
Wireless Temperature and Pressure Transmitter
The HPT-22TS provides local temperature and pressure indication, with wireless reporting and remote data viewing in the 4G configuration.
- Selected RTD configuration temperature range
- −40–125 °C
- Selected RTD configuration accuracy
- ±0.5 °C
- Radio options
- 4G / NB-IoT / LoRa / LoRaWAN
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Wireless temperature and pressure indication
Dual-row pressure and temperature readings, together with battery and signal indication. The head can be oriented through 340° and fixed in position.

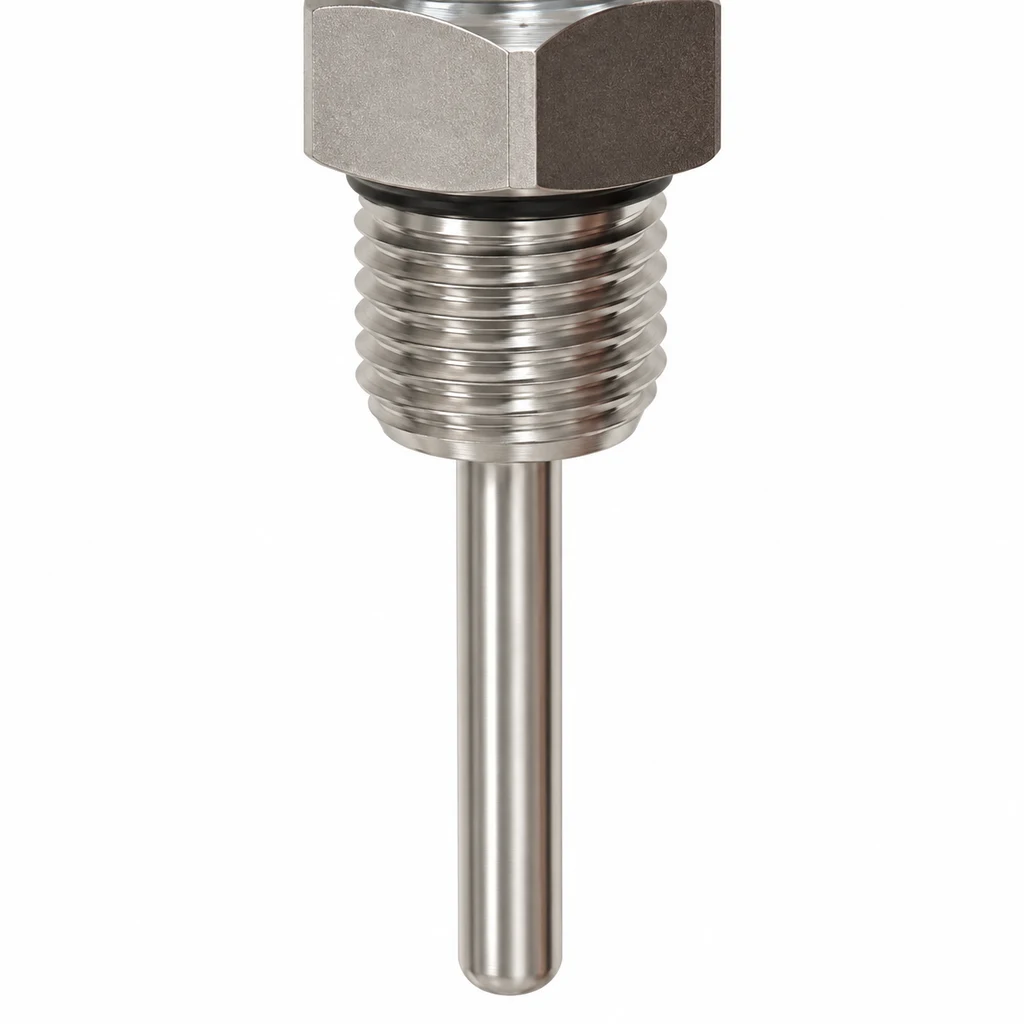

Temperature probe and process connection
Pt100 and Pt1000 RTD configurations are available. The selected RTD configuration specifies −40–125 °C with ±0.5 °C accuracy.
Probe length and material, plus thread specification and material, can be configured. Thread choices include M20×1.5 and G1/2.
Radio and probe selection
4G remote viewing
The 4G configuration uploads data to a cloud platform for viewing on a phone or computer.
The communication reference lists key or timer wake modes, with a 3 min sampling interval and a 30 min reporting interval.
- RTD element
- Pt100 or Pt1000.
- Radio interface
- 4G, NB-IoT, LoRa or LoRaWAN configuration.
- Thread
- M20×1.5 or G1/2.
- Probe
- Configurable material and length.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPT-22TS |
| Measurement roles | Temperature / pressure |
| RTD options | Pt100 / Pt1000 |
| Selected RTD configuration temperature range | −40–125 °C |
| Selected RTD configuration accuracy | ±0.5 °C |
| Radio options | 4G / NB-IoT / LoRa / LoRaWAN |
| Bluetooth connectivity | Available configuration |
| Supply voltage | 3.6 V DC |
| Battery configuration | Lithium battery, 19,000 mAh |
| Sleep current | < 30 µA |
| Indication | Dual-row segment LCD with battery and signal indication |
| Head orientation | Adjustable through 340° |
| Thread options | M20×1.5 / G1/2 |
| Communication protocol | MQTT, depending on selected communication configuration |
| Sampling configuration | 3 min |
| Reporting configuration | 30 min |
| Measuring media | Liquids or gases compatible with selected materials |
| Probe configuration | Custom probe length and material |
| Brand | WKSENSOR |
| Product reference | HH-1076208741834 |
Application scenarios
Oil and petrochemicals
Tall process towers, vessels and overhead pipes.
Power
Transformers, insulators and overhead structures.
Water conservancy
Reservoir water and spillways between wooded slopes.
Fire protection networks
Red pump-room pipes and handwheel valves.
Urban water and drainage
Roadside pipes and an open drainage channel.
Gas networks
Outdoor vessels, valves and gas-network pipework.
Liquefied natural gas
Coastal storage tanks and terminal pipes.
District heating
Large heating pipes and access platforms below ground.
Drinking-water networks
Blue supply pipes and valves beneath an access opening.
