HPT-33
Submersible Level Transmitter
The HPT-33 uses a cable-connected submersible probe for liquid-level measurement, with current, voltage, RS485 or switching output configurations.
- Measuring span
- Selected spans up to 500 m
- Span thermal drift
- < 0.02% FS
- Metal-probe accuracy
- 0.1–0.5% FS
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Cable-connected level probe
A cylindrical metal probe connects through a black boot to the coiled cable.

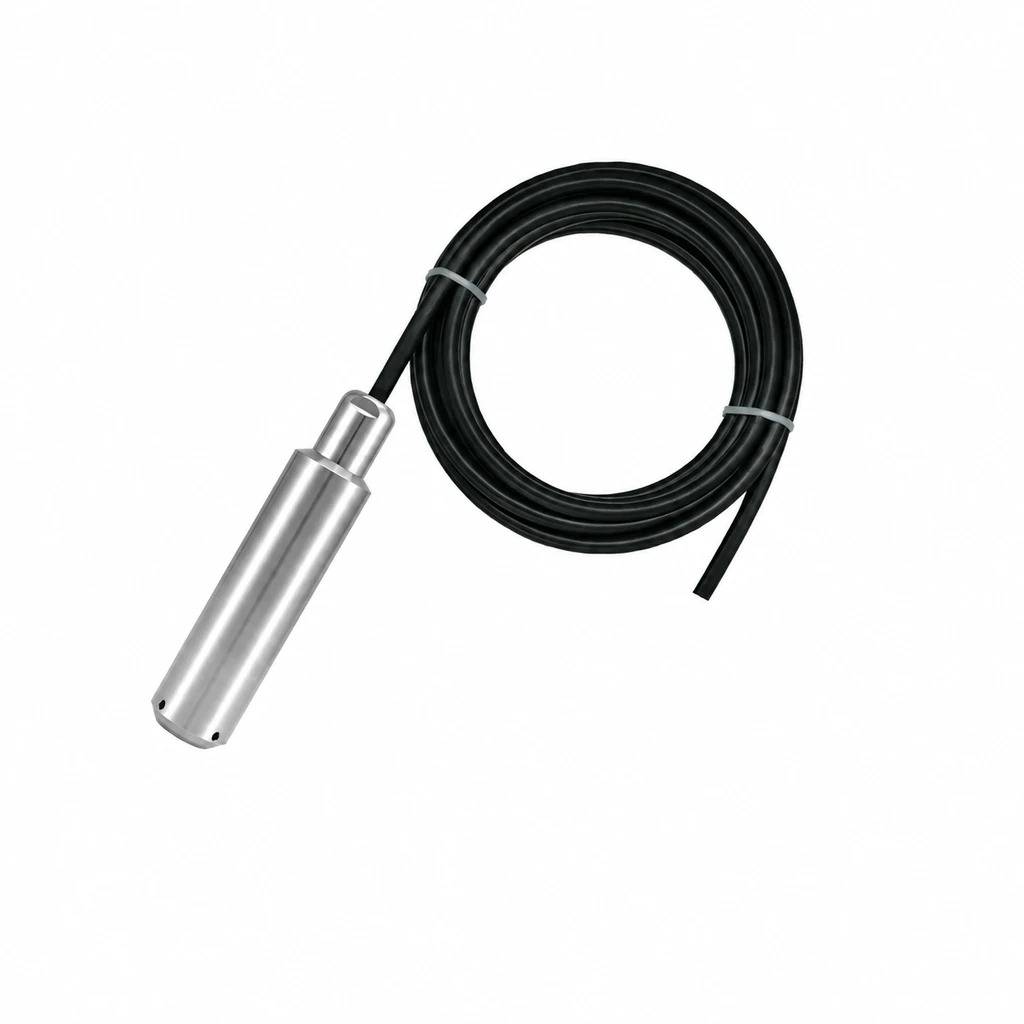

Metal-neck probe configuration
A raised metal neck joins the cable to the cylindrical probe, with two visible openings near the lower rim.

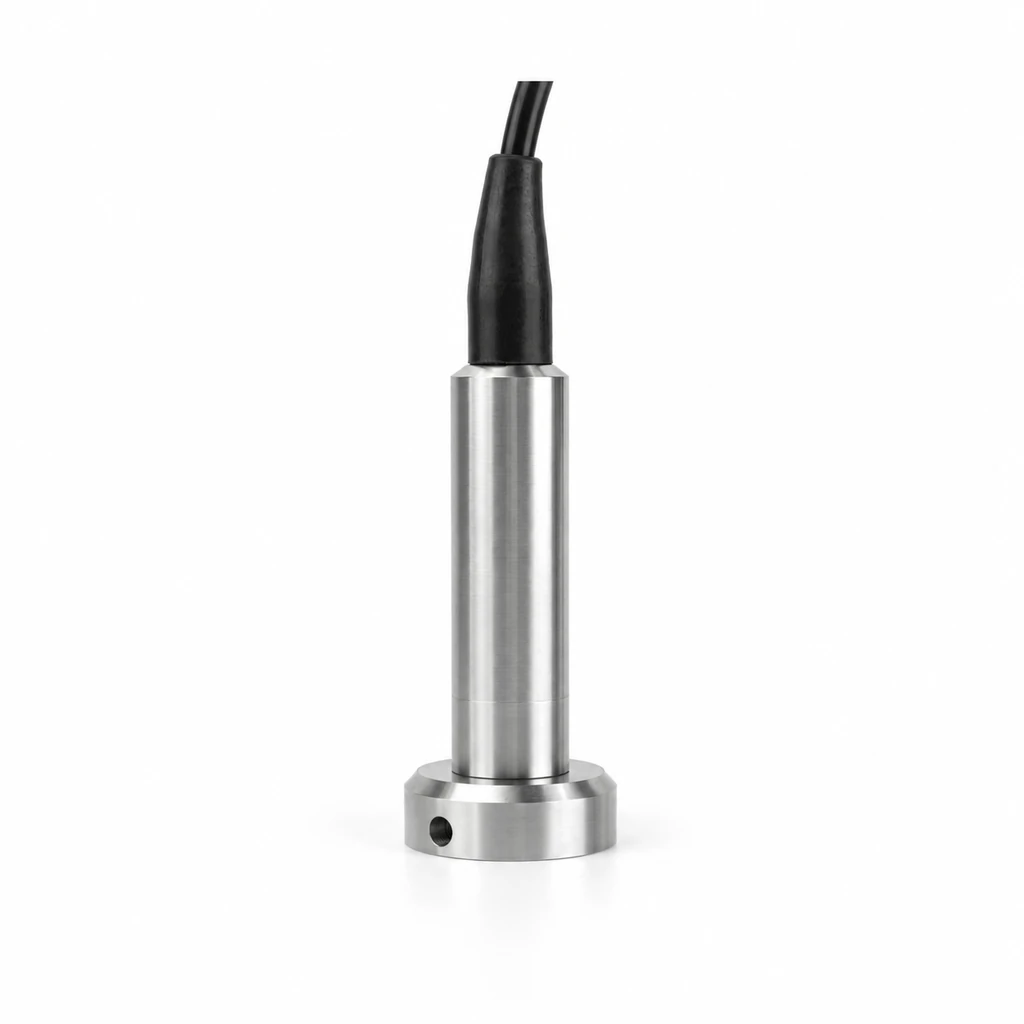

Filter-base configuration
A wider flat base sits below the metal cylinder, with a visible opening in its side.

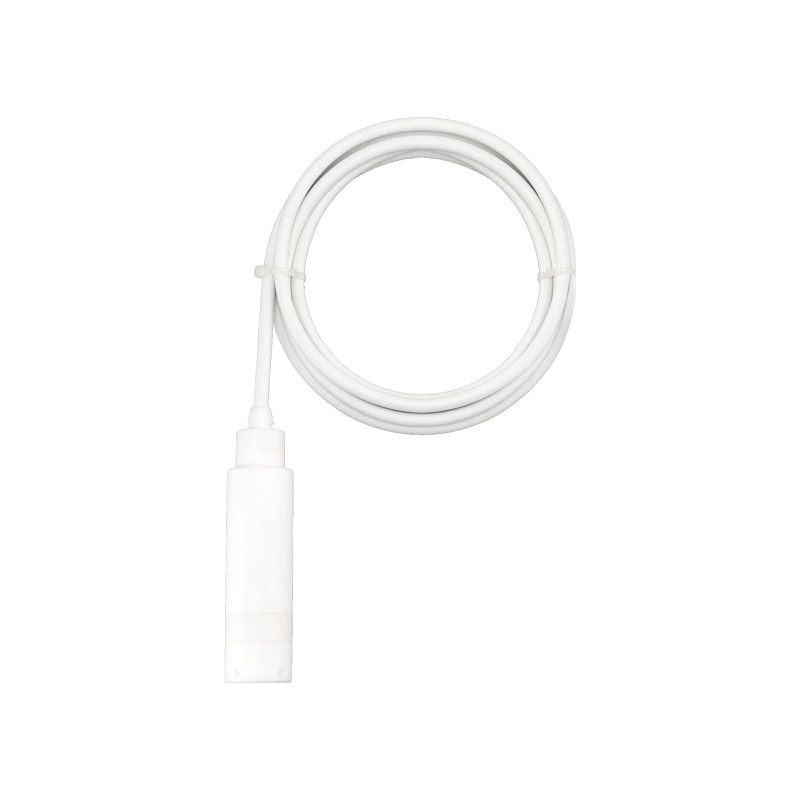

PTFE configuration
The white probe housing connects to a coiled white cable. PTFE is an alternative housing material to the metal configurations.
Booted metal probe dimensions
These values describe the cylindrical probe with a black cable boot. Confirm the dimensional units and installation drawing for the selected probe; the metal-neck, filter-base and PTFE versions need their own dimensions.
| Cylindrical body length | 100 |
|---|---|
| Body and cable-boot length | 145 |
| Body diameter | Ø27 |
Configuration and selection
- Measuring span
- Selected liquid-level spans up to 500 m.
- Output
- 4–20 mA, voltage, RS485 or switching configurations.
- Probe housing
- 304 or 316 stainless steel, titanium or PTFE options.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPT-33 |
| Product type | Submersible level transmitter |
| Measuring span | Selected spans up to 500 m |
| Sensing principle | Diffused silicon |
| Metal-probe accuracy | 0.1–0.5% FS |
| Metal-probe supply voltage | 12–36 V DC; 24 V DC nominal |
| Output options | 4–20 mA / voltage / RS485 / switching; alternative configurations |
| Zero thermal drift | < 0.02% FS/°C |
| Span thermal drift | < 0.02% FS |
| Long-term stability | < 0.25% FS/year |
| Compensated temperature | 0–60 °C |
| Ambient temperature | −20–60 °C |
| Response time | < 1 ms |
| Compatible media for the metal probe | Media compatible with 316L stainless steel |
| Metal-probe diaphragm material | 316L stainless steel |
| Probe-housing material options | 304 / 316 stainless steel / titanium / PTFE |
| Probe protection | IP68 |
| Brand | WKSENSOR |
| Product reference | HH-680282097060 |
Application scenarios
Submersible level measurement in compatible liquids, with metal or PTFE probe-housing configurations.
Water-level measurement
Water basins with access walkways and railings.
