HPT-5
High-Temperature Pressure Transmitter
The HPT-5 measures pressure in steam and other hot-process media, with a finned metal body and configurable process connection. Model references include HPT-5 and HPT-5-X.
- Pressure span configuration
- Selected spans up to 250 MPa
- Accuracy options
- 0.1 / 0.25 / 0.5% FS
- Output options
- 4–20 mA / 0–5 V / switching / communication
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Finned pressure-transmitter body
Five-fin and ten-fin cooling configurations are available, with a high-temperature version rated up to 300 °C depending on the selected assembly.
- Electrical connector
- An ABS Hirschmann-style connector with a side cable entry.
- Metal body
- 304 stainless-steel construction with configurable connection dimensions.
- Reverse-polarity protection
- Reverse-polarity protection for the electrical connection.

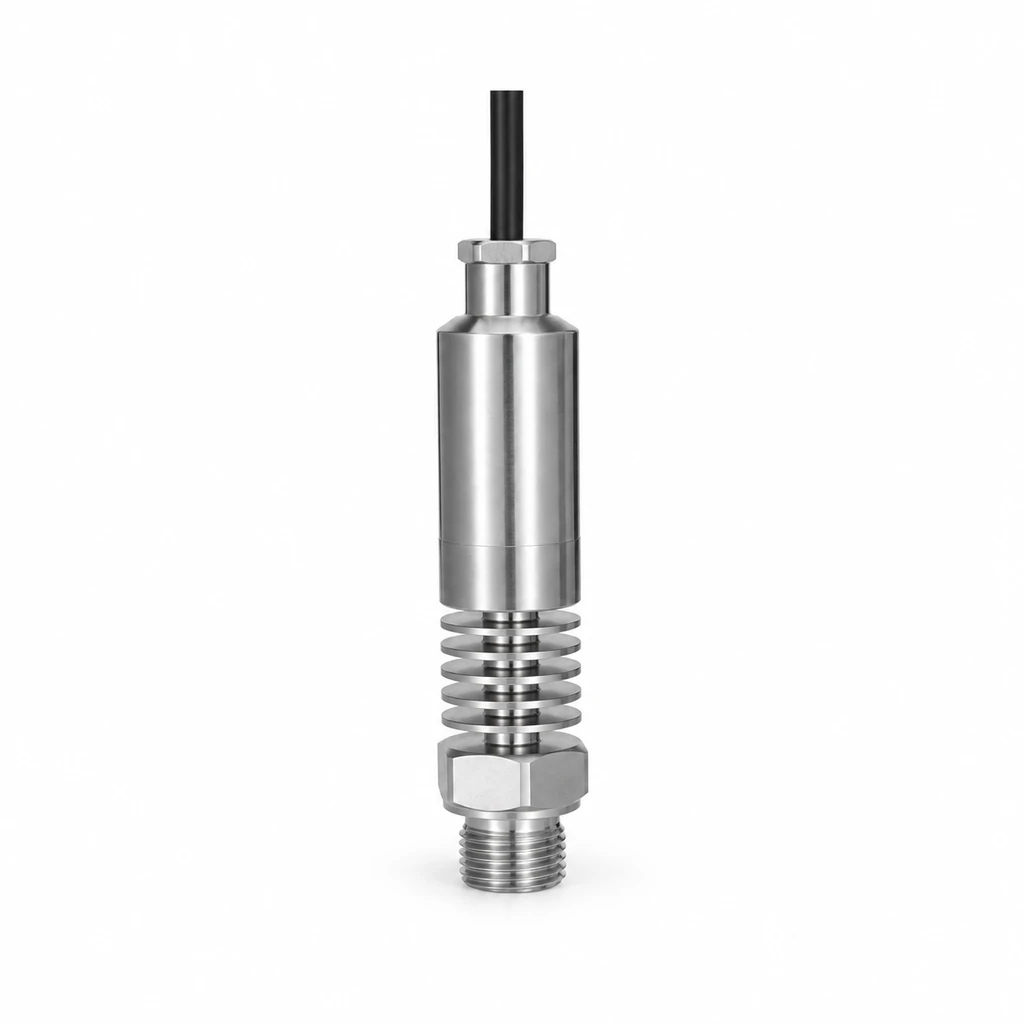

Direct-cable configuration
A short cable exits the cylindrical body above the cooling section and threaded pressure fitting.
Five-fin base dimensions
The pictured base is 169 mm overall with a 92 mm upper connector width. The finned section and hex fitting span 55 mm; the threaded section is 19 mm. The same reference lists 120 g and a 12–36 V DC supply configuration.

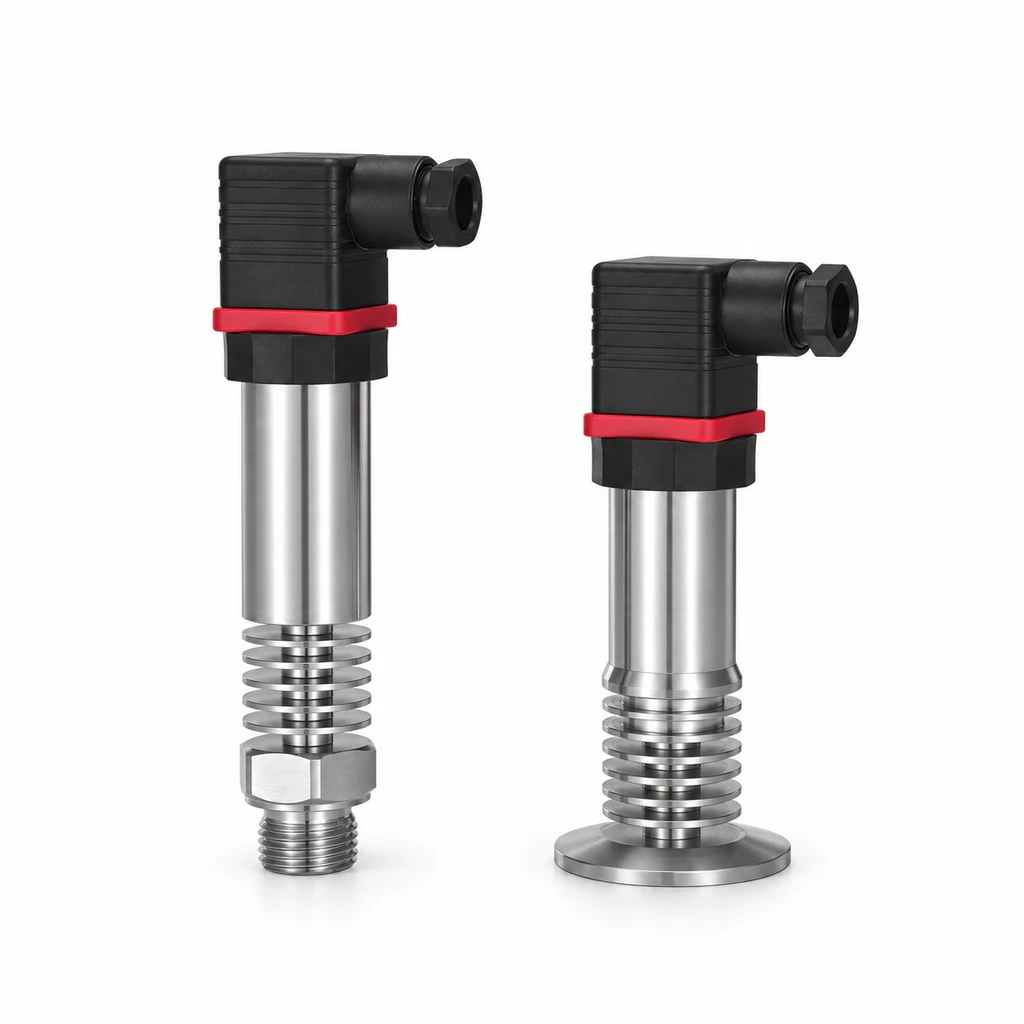

Threaded and clamp bodies
Threaded and clamp configurations
Alternative finned bodies with a threaded process fitting on the left and a wide clamp connection on the right.
Cooling and signal options
- Model references
- HPT-5 / HPT-5-X.
- Nominal supply option
- 24 V DC configuration.
- Assembly options
- Angled connector or direct cable; threaded or clamp process-connection configuration.
- Direct-cable configuration outputs
- 4–20 mA, 0–10 V or RS485 version; supply depends on the selected electrical configuration.
- Pressure reference
- Gauge or absolute configuration.
- Output
- 4–20 mA, 0–5 V, switching or communication configuration.
- Cooling section
- 5-fin or 10-fin configuration.
- Process-connection material
- 304 or 316 stainless steel, titanium or PTFE configuration.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPT-5 |
| Pressure span configuration | Selected spans up to 250 MPa |
| Pressure reference options | Gauge / absolute |
| Accuracy options | 0.1 / 0.25 / 0.5% FS |
| Ingress protection | IP65 |
| Ambient temperature | −20–60°C |
| Output options | 4–20 mA / 0–5 V / switching / communication |
| Metal body material | 304 stainless steel |
| Process-connection material options | 304 / 316 stainless steel / titanium / PTFE |
| Electrical connector material | ABS |
| Cooling-fin options | 5 / 10 fins |
| High-temperature configuration | Up to 300°C, depending on selected configuration |
| Pictured base overall height | 169 mm |
| Pictured upper connector width | 92 mm |
| Pictured finned section and hex fitting height | 55 mm |
| Pictured threaded section height | 19 mm |
| Pictured base mass | 120 g |
| Brand | WKSENSOR |
| Product reference | HH-752187872180 |
