HPT-12B
DIN Field Connector
Plastic field connector for Hirschmann-style transmitters, with a PG9 cable-entry designation and black or red gasket options.
- Cable-entry designation
- PG9
- Interface designation
- DIN 43650
- Connection designation
- GDM3009
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Right-angle field connector
The black plastic housing has a recessed top fixing screw and a side cable entry with a hexagonal nut. PG9 identifies the cable-entry configuration; the gasket at the housing interface is available in black or red.
ABS reference configuration
Flame-retardant ABS housing with an insulation voltage of 250 V.
| Outline dimensions | 35 × 41.2 mm |
|---|---|
| Upper interface | 30 × 30 mm |
| Lower interface | M16 |

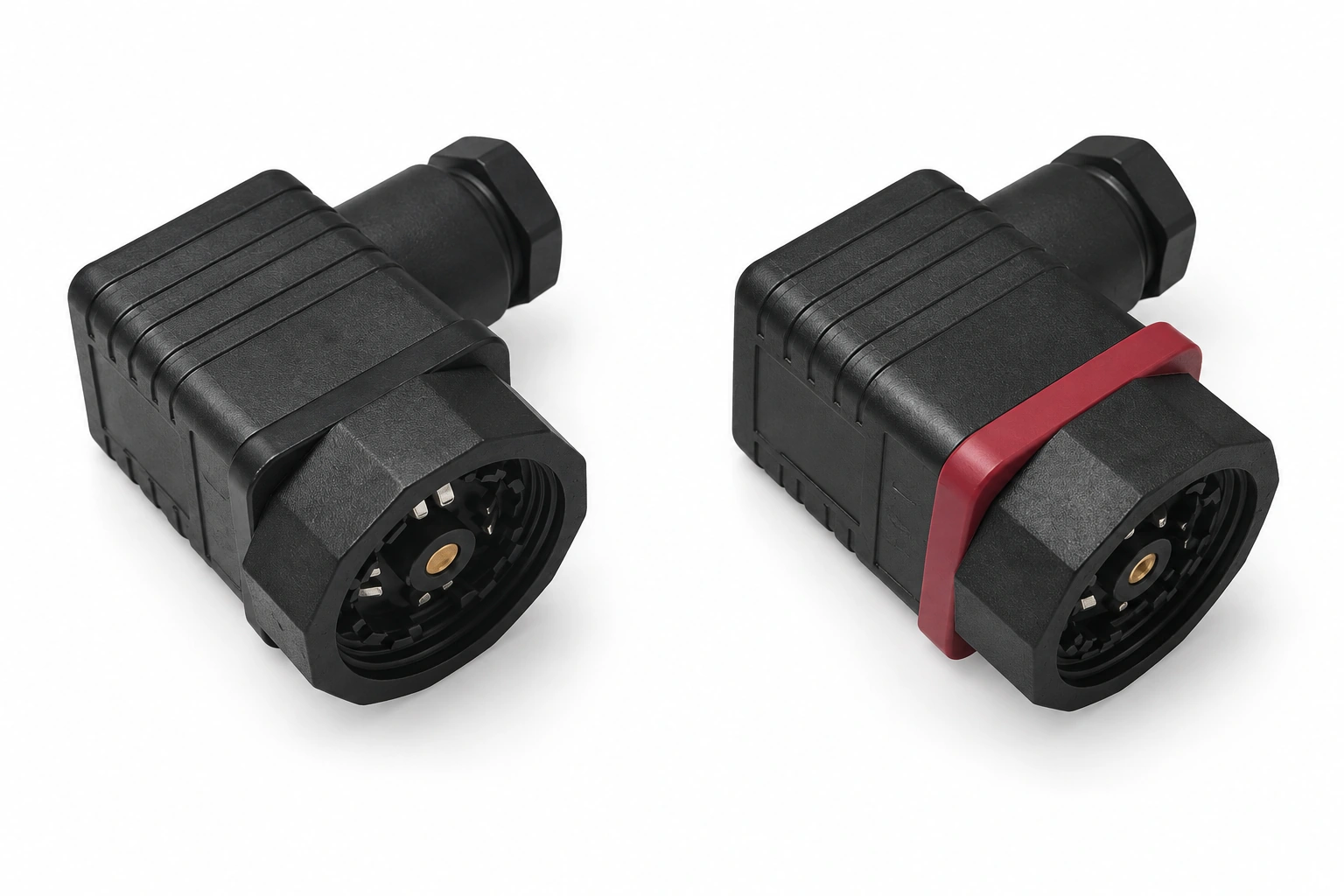

Black gasket
Red gasket

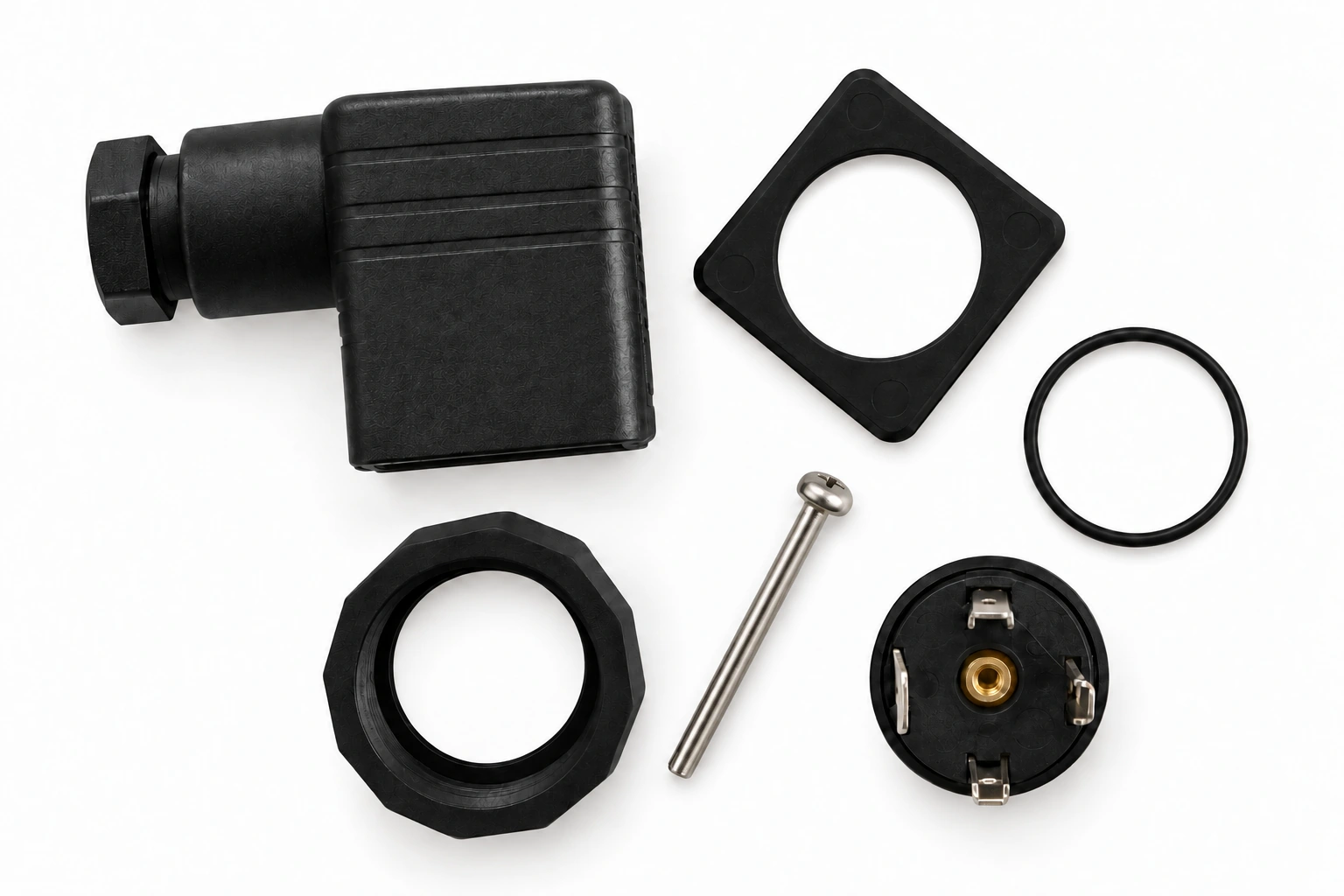

Separate connector components
| Body and contacts | Housing; contact insert |
|---|---|
| Seals | Square gasket; O-ring |
| Fastening parts | Hexagonal nut; fixing screw |
Configuration and selection
Interface designations: DIN 43650 and GDM3009. The PG9 cable entry and black or red gasket are selected separately.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPT-12B |
| Interface designation | DIN 43650 |
| Connection designation | GDM3009 |
| Cable-entry designation | PG9 |
| Housing material | Plastic |
| Gasket options | Black or red |
| Intended equipment | Hirschmann-style pressure, level and temperature transmitters |
| Brand | WKSENSOR |
| Product reference | HH-761308164713 |
Application scenarios
Oil
Oilfield equipment.
Chemicals
Process towers and pipework.
Power
Substation equipment.
Energy
Photovoltaic arrays.
Water
Water-treatment facilities.
For industrial automation and for pressure, level and temperature transmitters with the matching connector configuration.
