HPT-14
Transmitter Display Head
Local numerical indication for pressure, temperature and level transmitters, with LCD or four-digit LED versions and a connector supplied or omitted. The LCD branch includes HPT-14LCD.
- Display options
- LCD with white backlight / four-digit LED
- LCD signal options
- 4–20 mA / 0–10 V / RS485
- LED signal options
- 4–20 mA; optional single NPN output
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Two display technologies
The LCD version has a white backlight; the LED version uses a four-digit display. Both pictured heads have three front setting keys and a right-angle connector above the display.

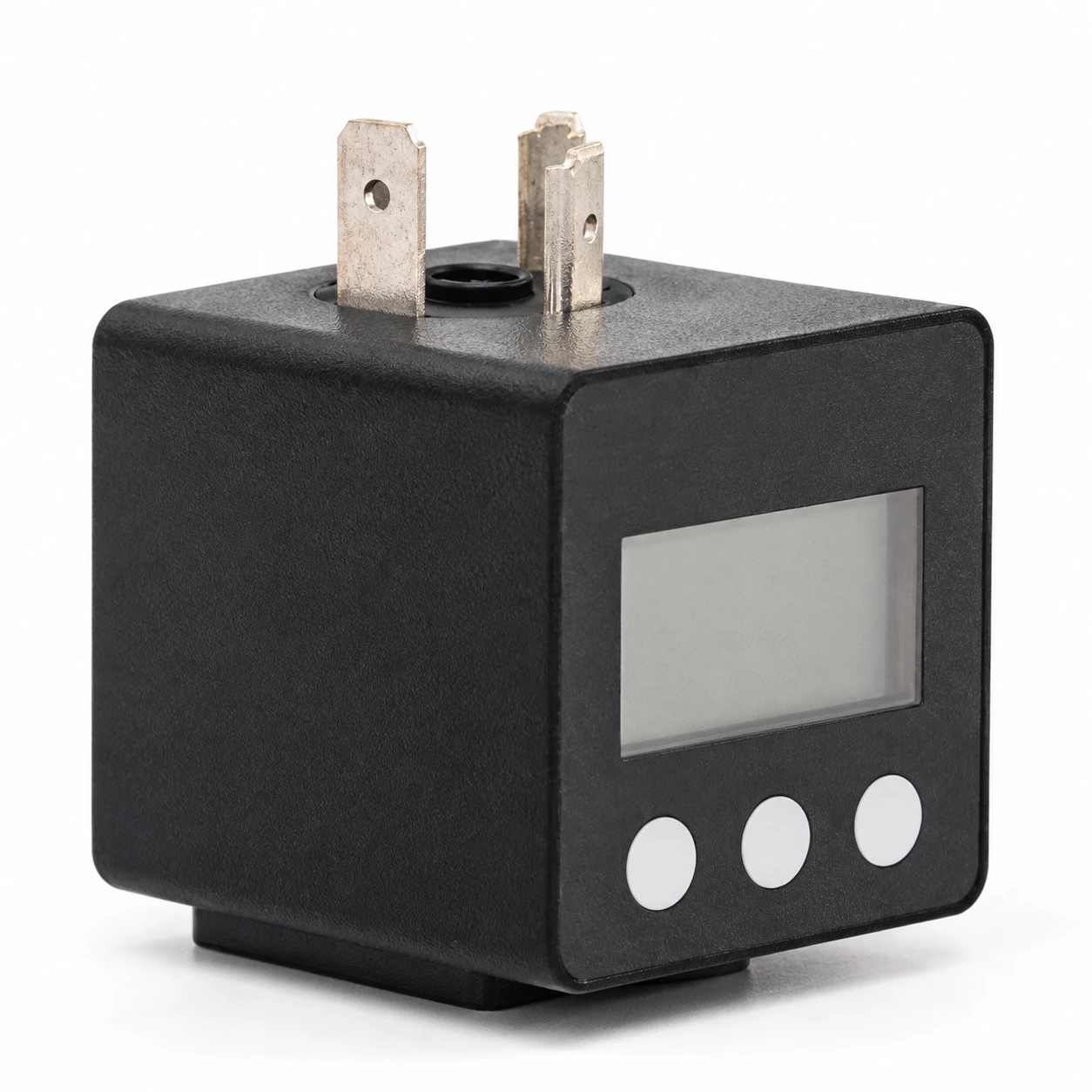

LCD head without the connector
The connector-omitted LCD configuration exposes the contact blades above the display housing.
Configuration and selection
The LCD branch includes HPT-14LCD. Signal direction and the optional LED switching output are separated by the version code below; the Hirschmann-style connector can be supplied or omitted.
| Code | Display and signals |
|---|---|
| HPT-14-EM1 | LCD Input: 4–20 mA Output: 4–20 mA |
| HPT-14-QM1 | LCD Input: 0–10 V Output: 0–10 V |
| HPT-14-R4M1 | LCD Input: mV signal Output: RS485 |
| HPT-14-EM2 | LED Input: 4–20 mA Output: 4–20 mA |
| HPT-14-EUM2 | LED Input: 4–20 mA Output: 4–20 mA and one NPN |
Housing and assembly dimensions
- Bare LCD housing
- 45 mm body height × 42 mm depth × 41 mm front width. The height excludes the exposed contact blades.
- Pictured LED with connector
- 81 mm assembly height; 45 mm display-body height.
Display units are selectable for pressure, temperature and length. The LCD numerical span is −19999 to 99999; the four-digit LED span is −1999 to 9999.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPT-14 |
| Function | Local display for pressure, temperature or level transmitters |
| LCD signal options | 4–20 mA / 0–10 V / RS485 |
| LED signal options | 4–20 mA; optional single NPN output |
| Display options | LCD with white backlight / four-digit LED |
| LCD numerical display span | -19999 to 99999 |
| LED numerical display span | -1999 to 9999 |
| Supply voltage | 12–28 V DC |
| Electrical protection | Reverse-polarity and overcurrent protection |
| LED operating temperature | -40–85 °C |
| Display units | Selectable units for pressure, temperature and length |
| Connector options | Hirschmann-style connector supplied or omitted |
| Brand | WKSENSOR |
| Product reference | HH-761423873058 |
Application scenarios
Pressure transmitters
Local numerical indication of the signal from a compatible pressure transmitter.
Temperature transmitters
Temperature indication from a compatible transmitter, using the selected display and signal version.
Level transmitters
Local display of a compatible level transmitter's signal.
