PM-2000

Digital Pressure Gauge

PM-2000 provides local pressure indication, with a battery-powered display-only reference configuration and a separate switching version. Threaded and flange configurations are shown.

Local digital pressure indicationBattery-powered gaugeDisplay-only reference configurationG1/2 / G1/4 / M20×1.5 threads

Pressure span options: Selected spans up to 250 MPa
Switching-version span: 0–100 MPa
Reference gauge accuracy: 0.1% FS

Supplied by WKSENSOR. Ask us about pricing, availability and delivery.

Product overview

Local pressure gauge

Battery-powered local fluid-pressure indication. The reference gauge lists 0.1% FS accuracy and measuring-span selections from 0.1 to 250 MPa.

Battery gauge: Battery-powered display-only configuration, without an output interface.

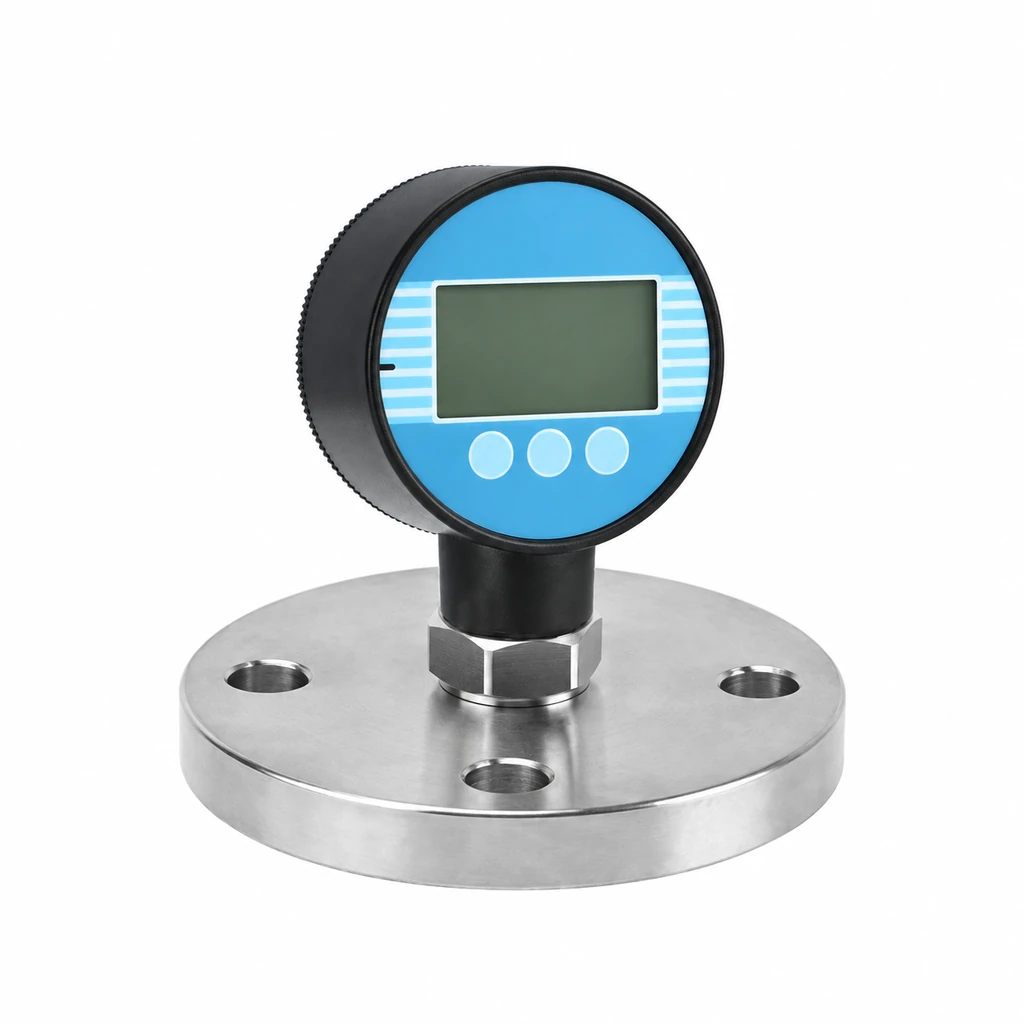

Flange configuration

A circular flange with visible openings sits below the hexagonal fitting and blue instrument head.

Gauge and switching versions

Pressure span: Selected measuring span up to 250 MPa.
Process thread: G1/2, G1/4 or M20×1.5.
Reference gauge configuration: Battery-powered local indication without an output interface.
Switching version: Separate 9 V SPDT configuration with a 0–100 MPa selected span and ±1% accuracy.
Mounting configuration: Threaded or pictured flange configuration.

Technical reference

Specifications and options

Technical specifications for PM-2000 Digital Pressure Gauge
Parameter	Specification or option
Model	PM-2000
Instrument function	Digital pressure gauge
Reference gauge accuracy	0.1% FS
Pressure span options	Selected spans up to 250 MPa
Ambient temperature	−20–65 °C
Process thread options	G1/2 / G1/4 / M20×1.5
Mounting	Threaded / pictured flange configuration
Reference power source	Battery
Reference output configuration	No output; display-only battery gauge
Switching configuration	9 V; SPDT
Switching-version span	0–100 MPa
Switching-version accuracy	±1%
Brand	WKSENSOR
Product reference	HH-806909440435
