HPT-6S
Compact Pressure Transmitter
HPT-6S uses diffused-silicon pressure sensing in a compact metal body. Rectangular-connector and direct-cable constructions are shown within the HPT-6H/S series.
- Supply range reference
- 12–36 V DC
- Accuracy selections
- ±0.1% FS / ±0.5% FS
- Output options
- 4–20 mA / voltage / RS-485
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Rectangular-connector construction
Diffused-silicon pressure measurement for hydraulic presses, construction machinery and high-pressure water systems. The HPT-6S has a −0.1–10 MPa gauge-pressure configuration.

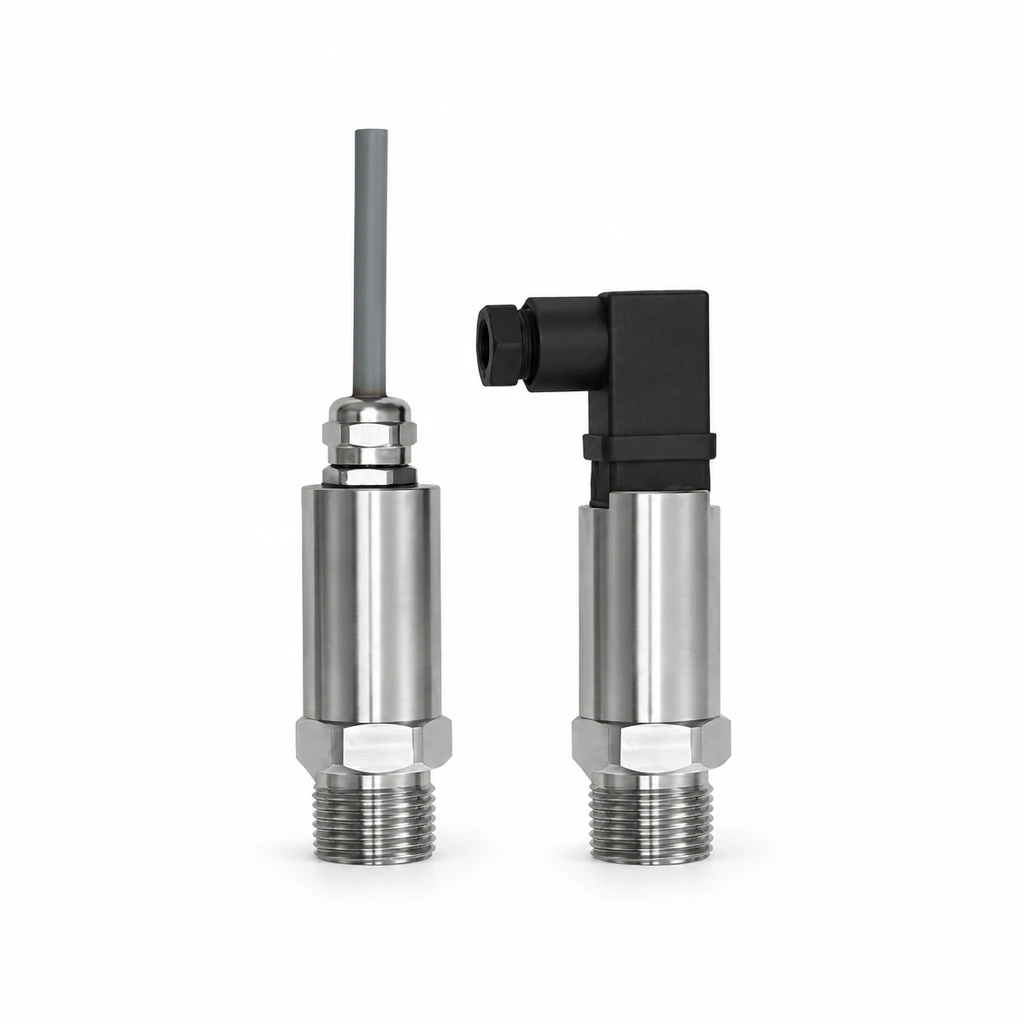

Cable and connector constructions
Electrical-connection alternatives
Direct cable
A cable exits through the upper metal fitting.
Rectangular connector
An angled connector provides the upper electrical connection.
These are alternative constructions within the HPT-6H/S series.
Cable and connector reference dimensions
The direct-cable drawing gives a 73 mm body-and-fitting height excluding the projecting cable, with 22 mm lower width. The rectangular-connector drawing gives 92 mm height, 34 mm upper width and 22 mm lower width. These are the two illustrated HPT-6H/S constructions.
Signal and fitting choices
- Electrical connection
- Direct-cable or rectangular-connector construction in the combined HPT-6H/S offering.
- Output
- 4–20 mA, 0–10 V or RS-485 configuration.
- Metal body
- 304 or 316L stainless-steel material selection.
- Process fitting
- 304, 316 or PTFE fitting-material selection.
- Process thread
- M20×1.5, G1/2 or G1/4 thread selection.
- Pressure reference
- Gauge or absolute version. The negative-pressure reference applies to gauge configurations.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPT-6S |
| Series designation | HPT-6H/S |
| Sensing principle | Diffused silicon |
| Pressure media | Water / oil / gas |
| HPT-6S selected pressure configuration | −0.1–10 MPa, gauge reference |
| Pressure-reference options | Gauge / absolute versions |
| Nominal supply reference | 24 V DC |
| Supply range reference | 12–36 V DC |
| Accuracy selections | ±0.1% FS / ±0.5% FS |
| Output options | 4–20 mA / voltage / RS-485 |
| Metal-body material options | 304 stainless steel / 316L stainless steel |
| Process-fitting material options | 304 / 316 / PTFE |
| Process-thread options | M20×1.5 / G1/2 / G1/4 |
| Ambient temperature | −20–60 °C |
| Electrical-connection options | Direct cable / rectangular connector |
| Brand | WKSENSOR |
| Product reference | HH-849119040432 |
