HPT-18F
Digital Single-Flange Differential Pressure Transmitter
The HPT-18F combines differential-pressure measurement with a single-flange process connection and local LCD indication. It supports 4–20 mA + HART signal configurations and a tantalum diaphragm option for tank-level and process-pressure duties.
- Measuring arrangement
- Single-flange differential pressure
- Range configuration
- 1000 kPa
- Additional measuring-span option
- 0–10000 kPa
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Single-flange measuring assembly
Blue display head, bolted lower body and one circular flange surrounding the corrugated diaphragm face.
LCD indication in the cast-aluminium transmitter head.

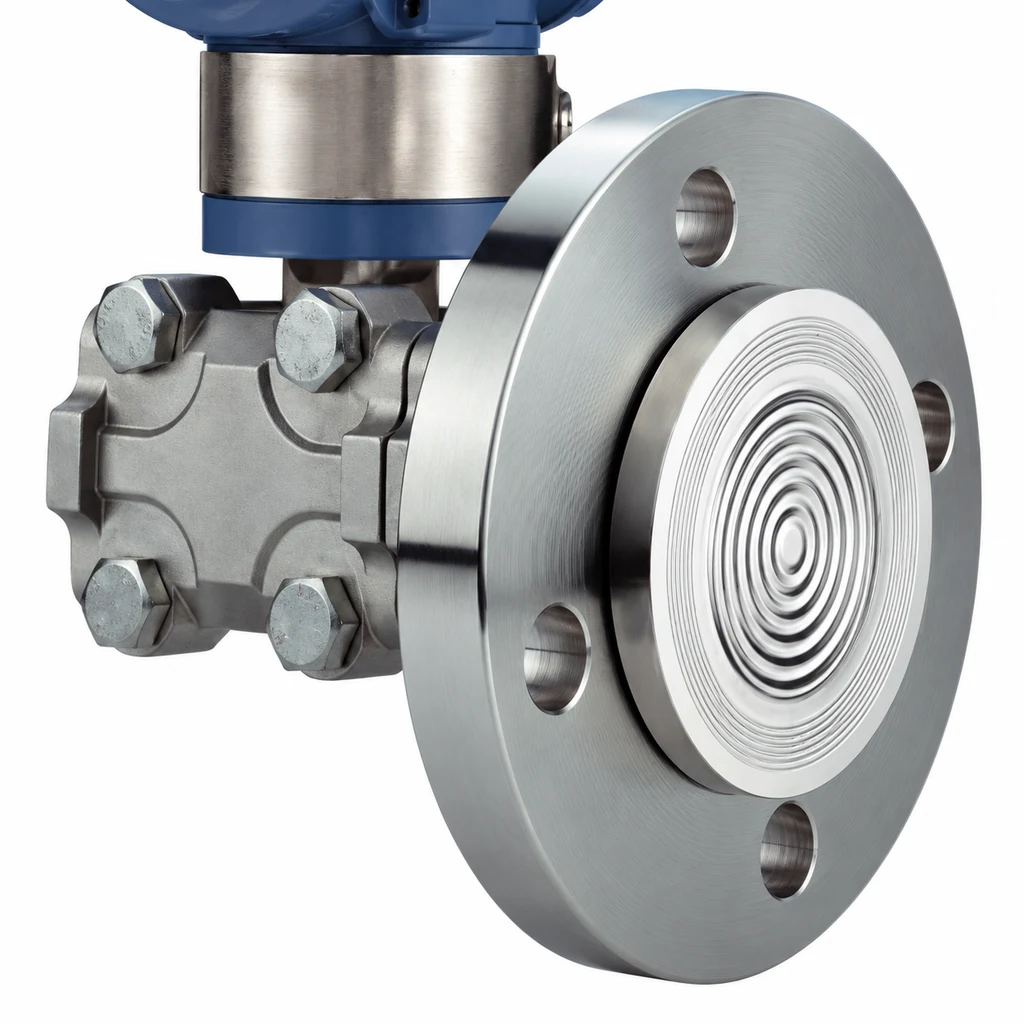

Flange diaphragm face
Concentric diaphragm corrugations within the four-hole flange, with the bolted measuring block behind.
304 or 316 flange options, with a tantalum diaphragm configuration.
Flange and measuring-span options
- Additional measuring span
- 0–10000 kPa configuration.
- Pressure range
- 1000 kPa configuration.
- Accuracy version
- ±0.1%, ±0.2% or ±0.5% FS.
- Signal and supply
- 4–20 mA + HART; 12–36 V DC supply range and 24 V nominal option.
- Flange and diaphragm
- 304 or 316 stainless-steel flange; tantalum diaphragm option.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPT-18F |
| Measuring arrangement | Single-flange differential pressure |
| Range configuration | 1000 kPa |
| Additional measuring-span option | 0–10000 kPa |
| Accuracy configurations | ±0.1% FS / ±0.2% FS / ±0.5% FS |
| Supply voltage | 12–36 V DC |
| Nominal supply option | 24 V nominal |
| Signal configuration | 4–20 mA + HART |
| Measurement media | Liquids and gases |
| Operating temperature | −20–65 °C |
| Local display | LCD |
| Head enclosure material | Cast aluminium |
| Flange material options | 304 / 316 stainless steel |
| Diaphragm option | Tantalum |
| Brand | WKSENSOR |
| Product reference | HH-937982686940 |
Application scenarios
Tank liquid-level measurement
Single-flange measuring configuration for tank liquid-level and process differential-pressure duties.
Oil
Pumpjacks and extraction-site pipework.
Chemicals
Process towers, vessels and pipework.
Power
Transformers and insulators in an outdoor substation.
Energy
Solar panels and support structures.
Water
Treatment channels and access walkways.
