SBW-17
Wall-Mount Temperature and Humidity Transmitter
The SBW-17 measures air temperature and humidity with local indication for warehouses, pharmacies, greenhouses and other monitored spaces.
- Temperature-span options
- 0–50 °C / −20–80 °C
- Humidity range
- 0–100% RH
- Humidity accuracy
- ±3% RH; selected configuration
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Wall-mounted air transmitter
The complete configuration shown combines an ABS enclosure and display with a slotted sensing cover and cable entry.

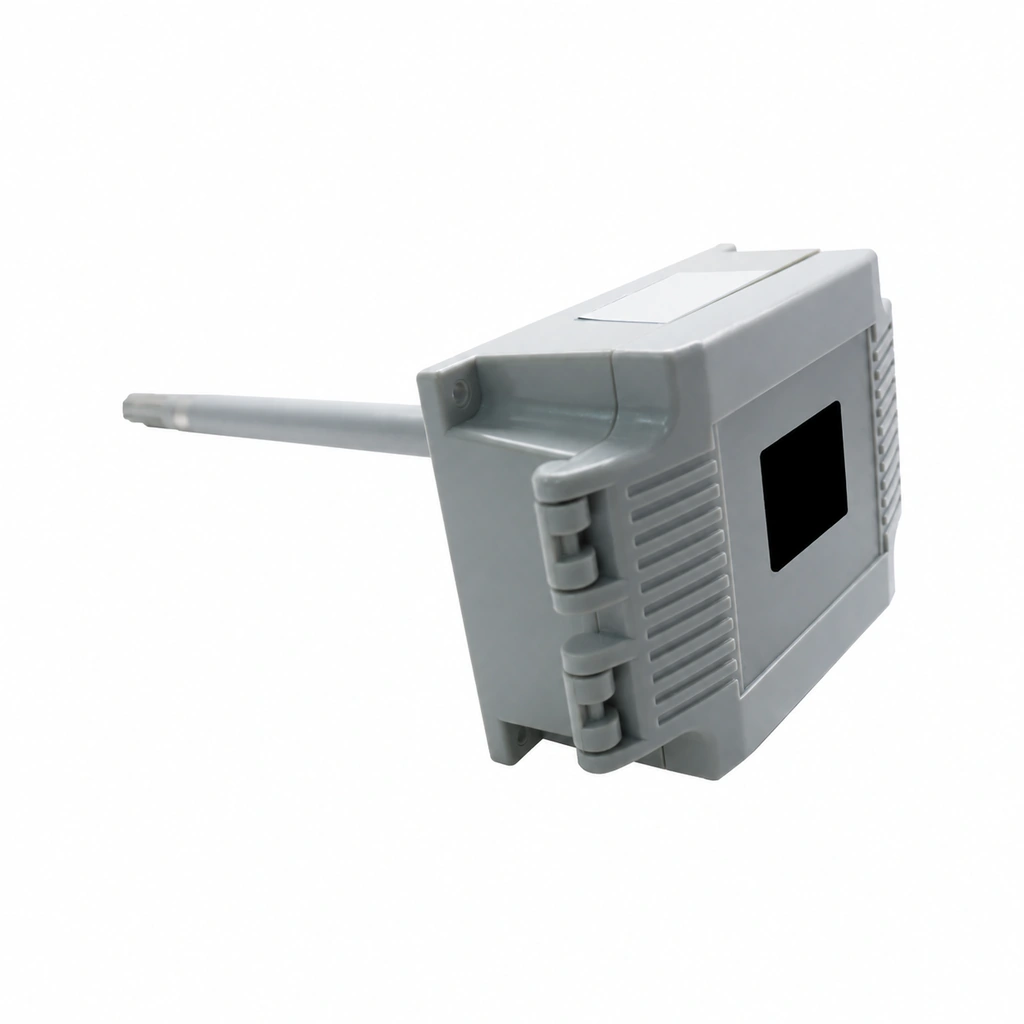

Horizontal-probe arrangement
A long horizontal probe projects from the side of the hinged enclosure, beside the display window.
| Temperature measurement | 0–50 °C or −20–80 °C span configuration |
|---|---|
| Relative humidity | 0–100% RH; ±3% RH for the selected configuration |
| Operating ambient | −20–60 °C |
Configuration and selection
Electrical output versions include 4–20 mA, 0–5 V, RS485, switching or communication configurations, with an additional selected 0–10 V version.
Supply: 12–36 V DC, nominal 24 V DC. Cable-exit configurations can be customized.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | SBW-17 |
| Measurement | Air temperature and relative humidity |
| Temperature-span options | 0–50 °C / −20–80 °C |
| Humidity range | 0–100% RH |
| Humidity accuracy | ±3% RH; selected configuration |
| Supply voltage | 12–36 V DC; nominal 24 V DC |
| Output options | 4–20 mA / 0–5 V / RS485 / switching / communication configurations |
| Additional voltage-output option | 0–10 V; selected configuration |
| Ingress protection | IP65 |
| Operating ambient temperature | −20–60°C |
| Mounting | Wall mounting |
| Enclosure material | ABS plastic |
| Local indication | Temperature and humidity display |
| Brand | WKSENSOR |
| Product reference | HH-962359064940 |
Application scenarios
Temperature and humidity monitoring in warehouses, pharmacies, greenhouses, power facilities, food processing and home environments.
Also used in electronics factories, machine rooms, railway stations, museums, sports venues and libraries.
Agriculture
Crop rows inside a greenhouse.
Cabinet monitoring
Closed cabinets in an equipment room.
Buildings
Building facades and outdoor areas.
Energy
Rows of solar panels.
Water
Water-treatment channels.
