HPT-16
Digital Pressure Transmitter
Diffused-silicon digital pressure transmitter with local indication, configurable range and analogue, RS-485 or switch-output versions.
Local digital pressure indicationConfigurable range and 15 unit optionsCircular rear electrical connectorReverse-polarity and overcurrent protection
- Pressure-span options
- Selected spans up to 250 MPa
- Accuracy options
- 0.1 / 0.25 / 0.5% FS; selected class
- Output versions
- 4–20 mA / 0–10 V / RS-485 / switching output; selected configuration
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Local pressure indication
Circular display head with three operating buttons. Configurable span with 15 unit options.

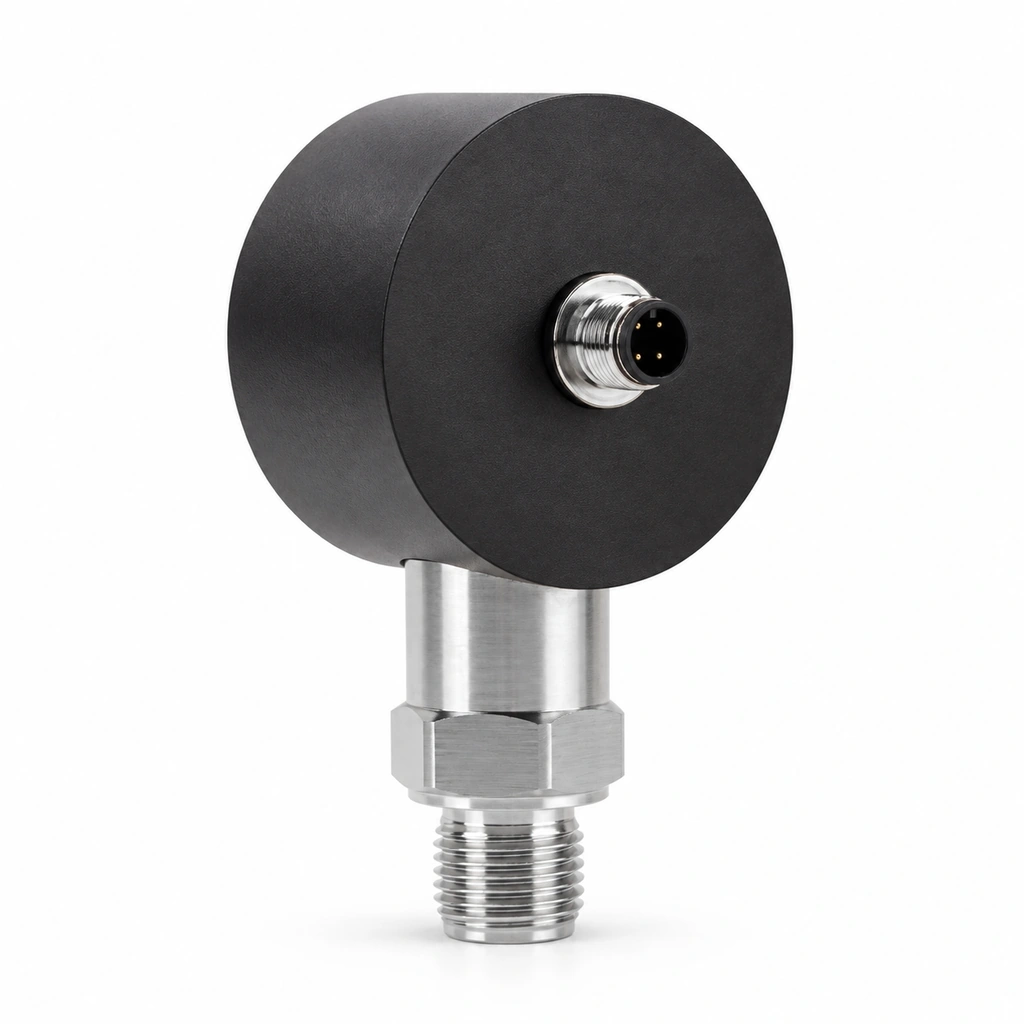

Circular electrical connection
Rear circular connector with a matching 1.5 m cable for this configuration.
Matte-black aluminum enclosure; reverse-polarity and overcurrent protection.
Pressure outputs
Output and pressure-span combinations
Each combination below is a separate configuration.
- 4–20 mA
- −100–100 kPa
- 0–20 MPa
- 20–60 MPa
- 0–10 V
- −100–100 kPa
- 0–20 MPa
- 20–60 MPa
- RS485
- −100–100 kPa
- 0–20 MPa
- 20–60 MPa
- Pressure reference
- Gauge or absolute; selected version.
- Accuracy class
- 0.1, 0.25 or 0.5% FS.
- Output
- 4–20 mA, 0–10 V, RS-485 or switching-output configuration.
- Pressure connection
- Thread, clamp or flange version. Thread options: G1/2, G1/4 or M20×1.5.
- Nominal supply reference
- A 24 V configuration is a separate option.

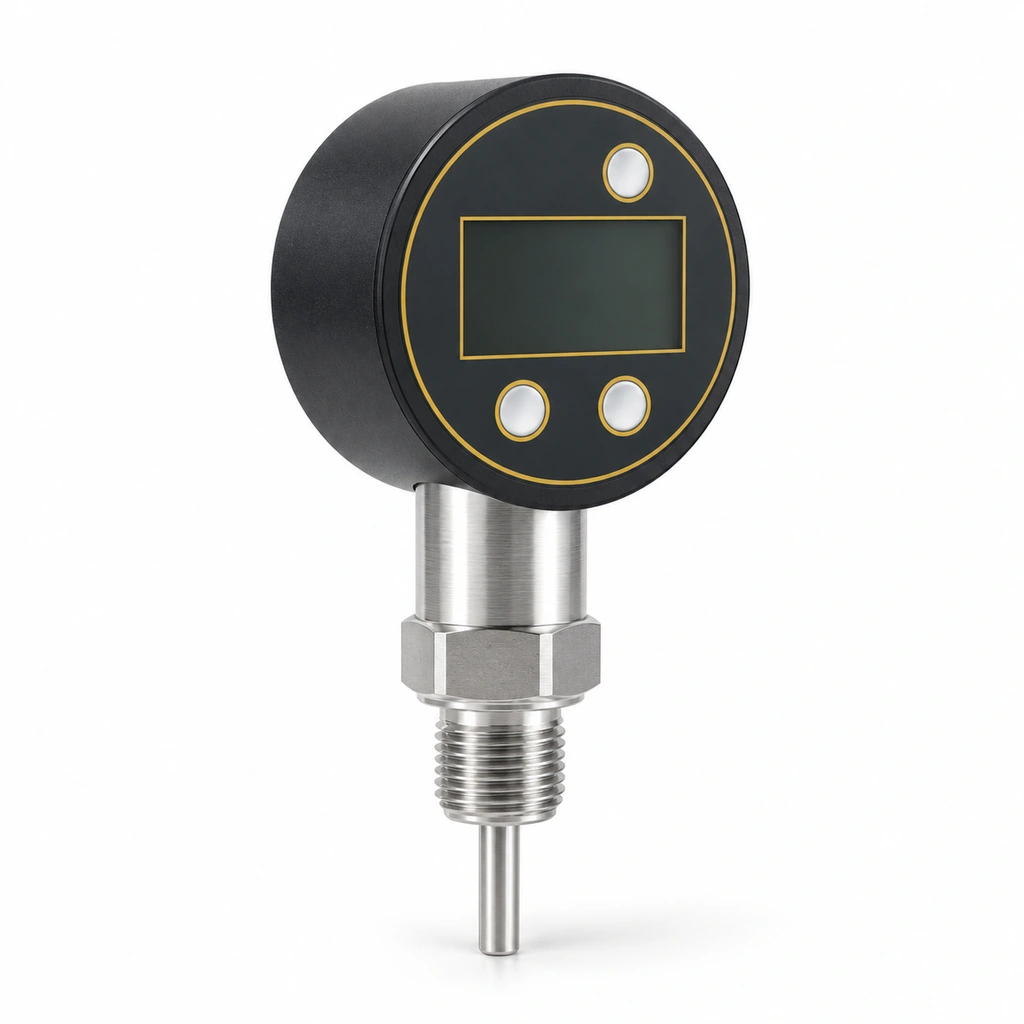

Temperature construction
Optional temperature version
Class A Pt100 element with configurable probe length.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPT-16 |
| Sensing technology | Diffused silicon |
| Housing | Matte-black aluminum |
| Pressure-span options | Selected spans up to 250 MPa |
| Pressure-reference options | Gauge / absolute; selected version |
| Accuracy options | 0.1 / 0.25 / 0.5% FS; selected class |
| Supply voltage | 12–36 V DC |
| Ambient temperature | −20–60 °C |
| Ingress protection | IP65 |
| Output versions | 4–20 mA / 0–10 V / RS-485 / switching output; selected configuration |
| Pressure-connection options | Thread / clamp / flange; selected version |
| Pressure-connection material | Stainless steel |
| Electrical connection | Circular rear connector |
| Matching cable | 1.5 m; circular-connector configuration |
| Display unit options | 15 |
| Electrical protection | Reverse-polarity / overcurrent protection |
| Brand | WKSENSOR |
| Product reference | HH-762908341478 |
Application scenarios
Oil
Pumpjacks and field pipelines.
Chemicals
Process columns and vessels.
Power
Transformers and switchyard equipment.
Energy
Photovoltaic panel rows.
Water
Treatment basins and walkways.
Industrial automation.
