HPT-2
Digital Pressure Transmitter
Digital pressure transmitter with threaded, flanged, clamp-connected, finned and separate-probe configurations.
- Accuracy options
- ±0.1% FS configuration
- Output options
- 4–20 mA / 0–5 V / 0–10 V / RS-485 / HART versions
- Process thread options
- M20×1.5 / G1/2 / G1/4
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
High-temperature configuration
Cooling fins between the instrument head and threaded pressure connection. 300 °C on the selected finned configuration.
Tempered-glass observation window with local digital indication. Instrument parameters can be adjusted by buttons.

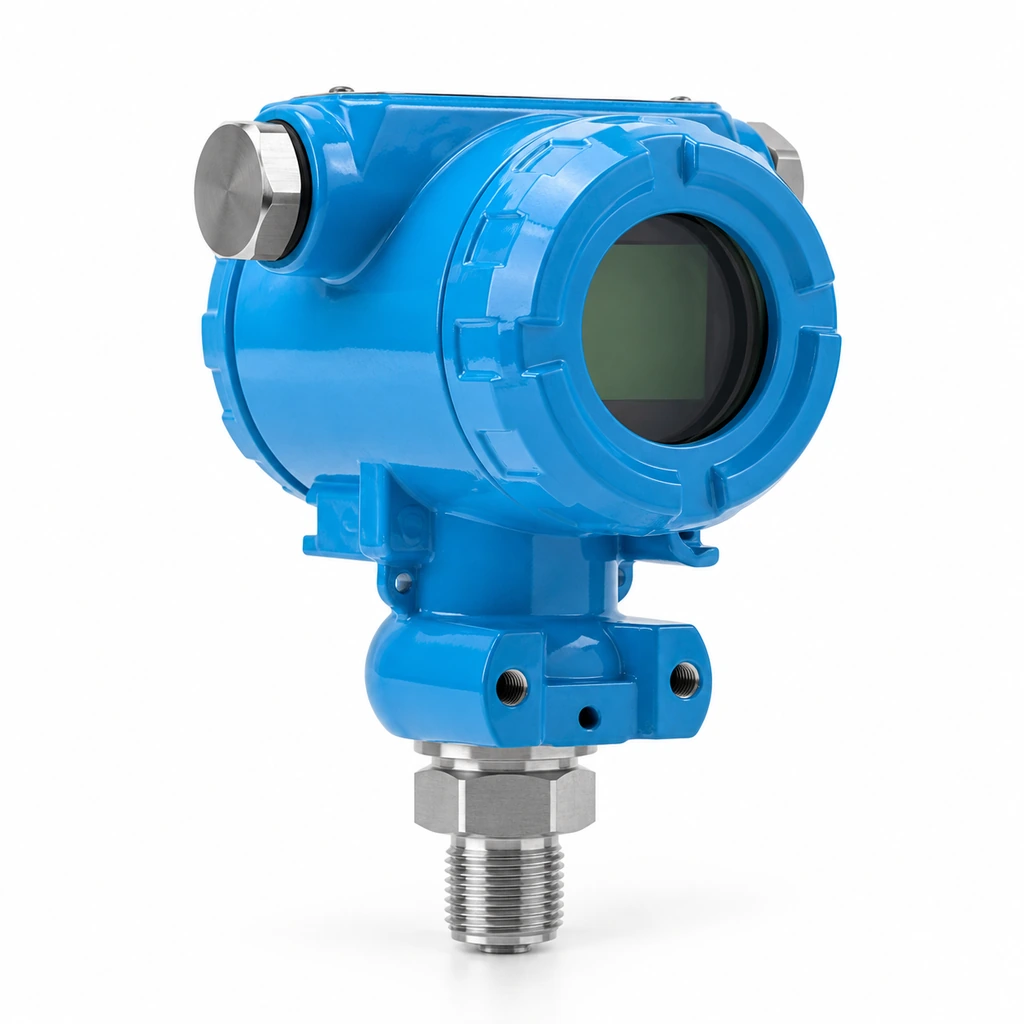

Threaded configuration
Short hex fitting with an external pressure thread.

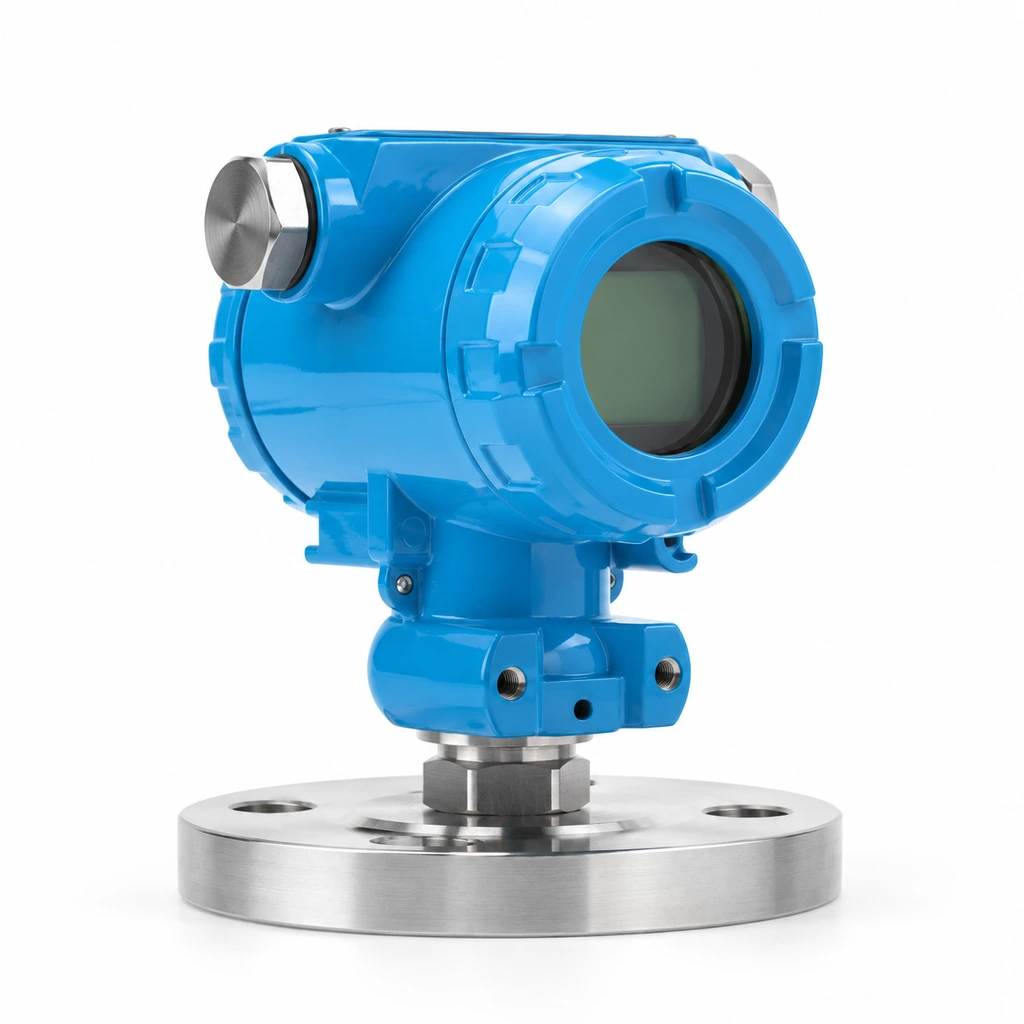

Flanged configuration
Circular flange around the process connection.

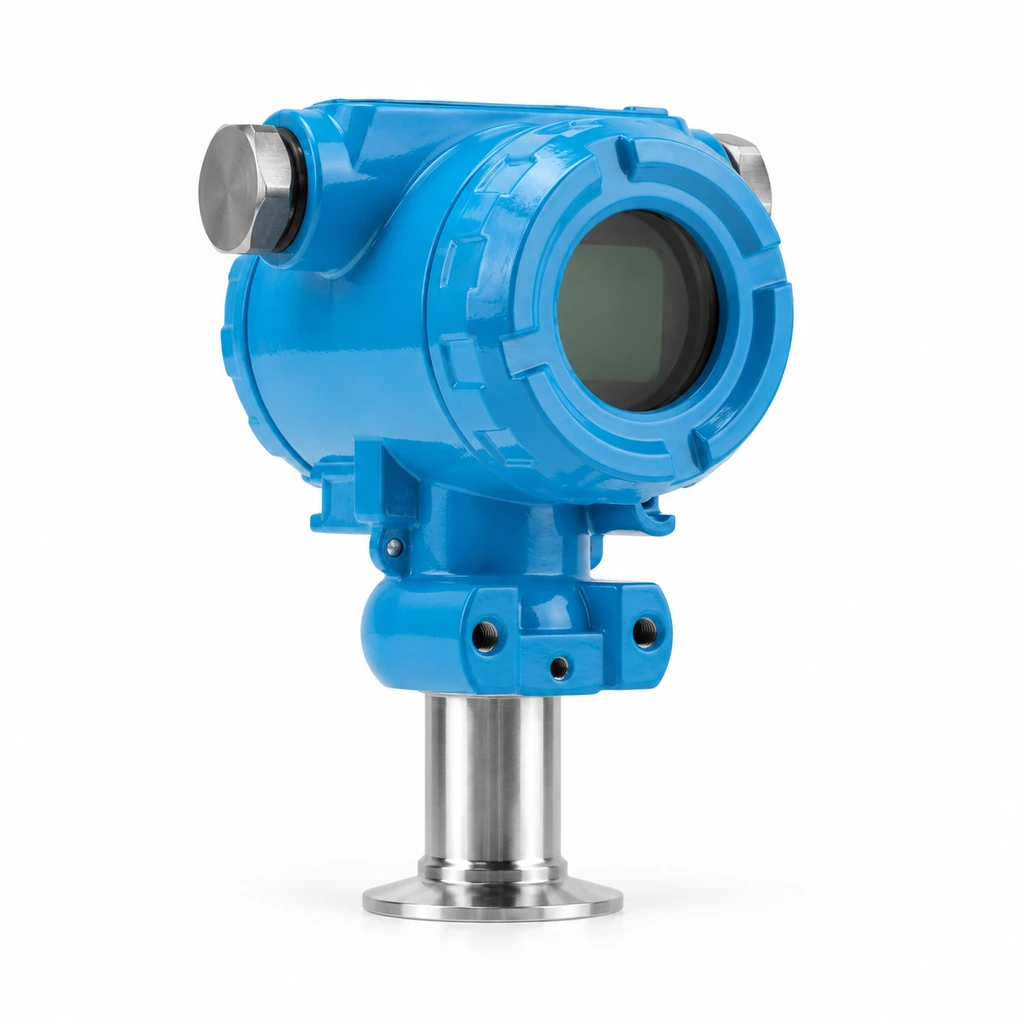

Clamp configuration
Extended stem with a clamp connection at the base.

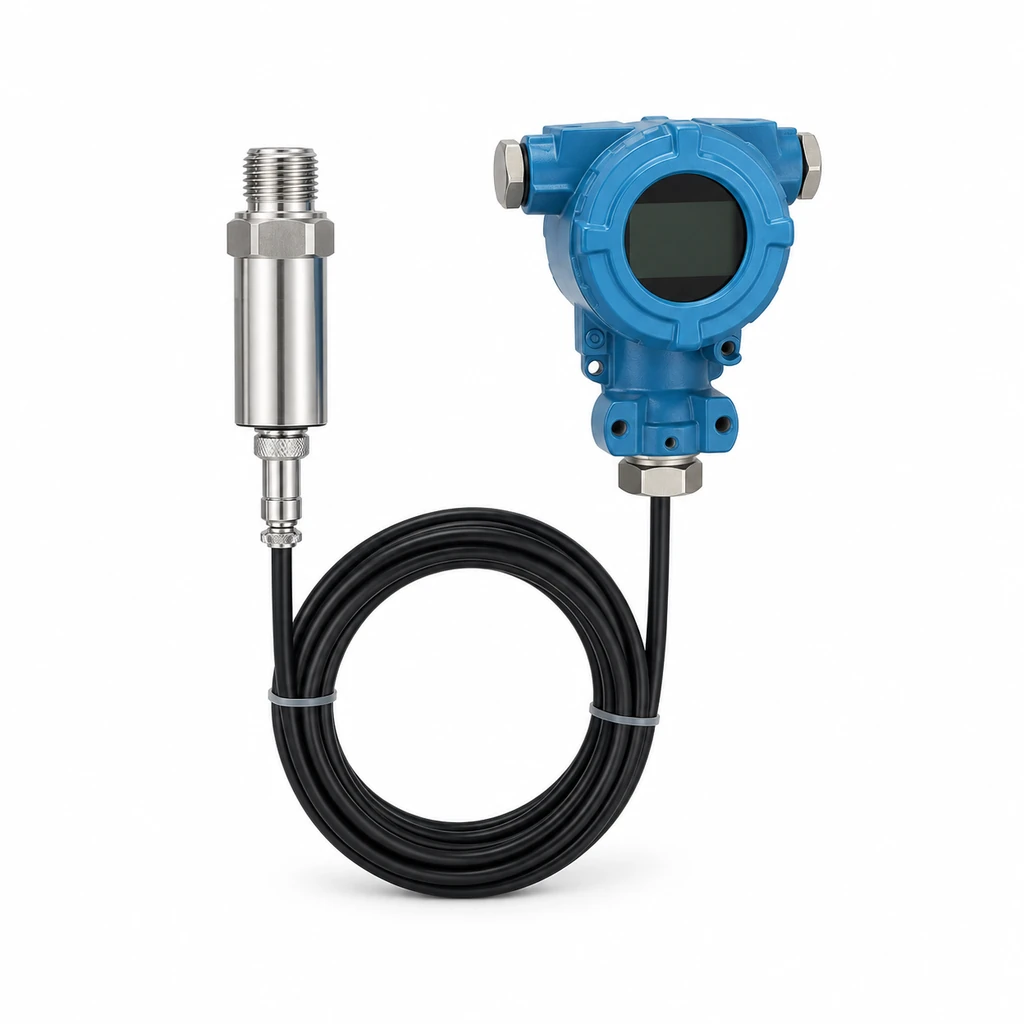

Separate pressure probe
Separate pressure probe
Metal pressure probe connected by cable to the display head.
Signal and process options
| Reference | Pressure span | Accuracy |
|---|---|---|
| Selected configuration | 0–60000 kPa | ±0.1% FS / ±0.2% FS configurations |
| Additional detail reference | Selected positive-pressure spans up to 250 MPa | Configuration dependent |
- Structure
- Threaded, flanged, clamp-connected, finned or cable-connected separate-probe configuration.
- High-temperature option
- 300 °C on the selected finned configuration.
- Output
- 4–20 mA, 0–5 V, 0–10 V, RS-485 or HART version.
- Accuracy class
- ±0.1% FS configuration.
- Process thread
- M20×1.5, G1/2 or G1/4 option.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPT-2 |
| Function | Digital pressure transmitter |
| Measuring medium | Liquid / gas pressure configurations |
| Structure options | Threaded / flanged / clamp-connected / finned / separate-probe configurations |
| Accuracy options | ±0.1% FS configuration |
| Output options | 4–20 mA / 0–5 V / 0–10 V / RS-485 / HART versions |
| Process thread options | M20×1.5 / G1/2 / G1/4 |
| Enclosure protection | IP65; selected enclosure configuration |
| High-temperature option | 300 °C; selected finned configuration |
| Process-connection material option | 304 stainless steel; threaded configuration |
| Observation window | Tempered glass |
| Brand | WKSENSOR |
| Product reference | HH-833444568418 |
Application scenarios
Oil
Oilfield pumpjacks.
Chemicals
Chemical processing columns and pipework.
Power
Electrical substation equipment.
Energy
Photovoltaic panel arrays.
Water
Water-treatment basins.
Industrial automation.
