HPC-2000
Axial Digital Pressure Switch
The HPC-2000 combines four-digit LED pressure indication with configurable control outputs in an axial panel-mounted assembly. Relay, PNP, RS485 and analogue versions are available, with adjustable alarm mode and hysteresis.
- Measuring-span configuration
- 0–200 MPa
- Accuracy configurations
- 0.1% / 0.25% / 0.5% FS
- Output configurations
- Relay / PNP / RS485 / analogue
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Panel display and controls
Four-digit LED pressure indication with selectable display units. The selected axial panel-mount configuration measures 85 × 85 × 90 mm overall.

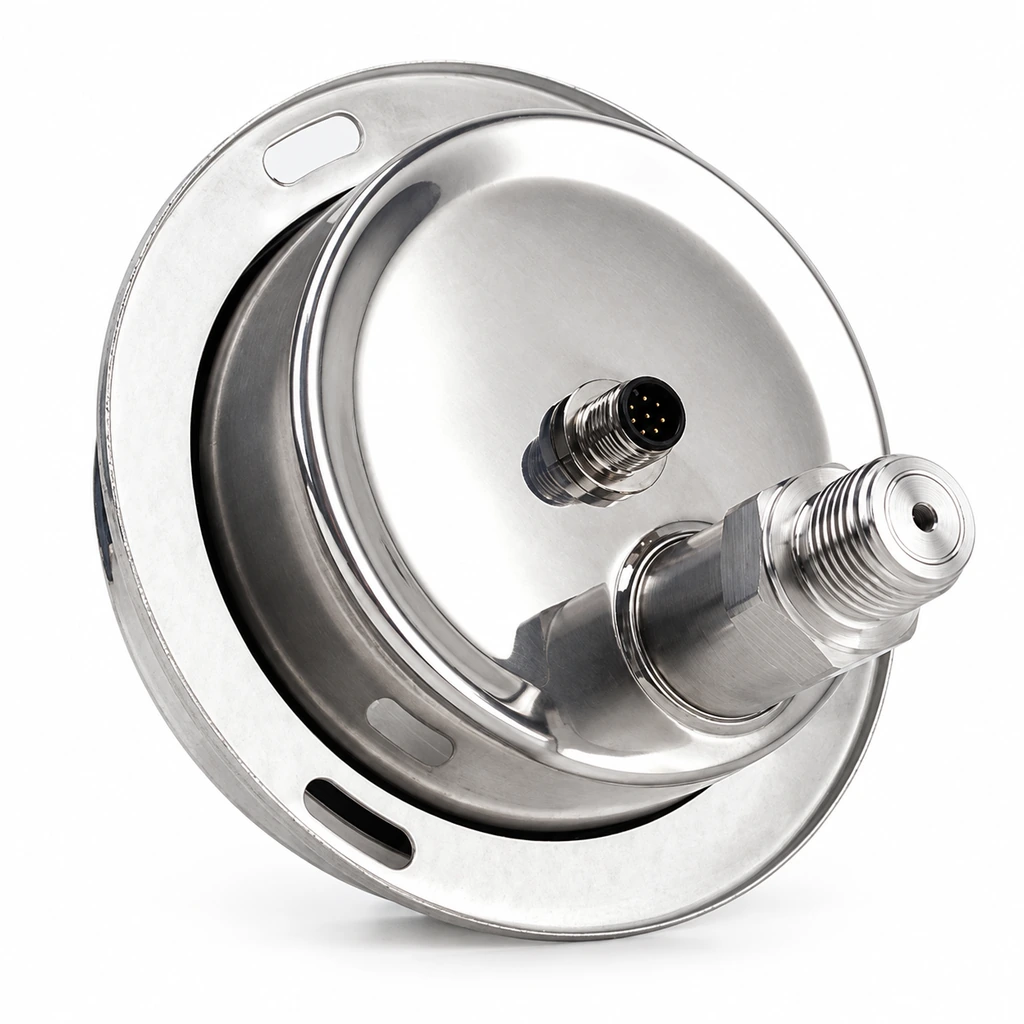

Axial rear connections
Axial panel mounting with a rear 304 stainless-steel pressure fitting. The illustrated connection reference includes a 2 m cable.
Alarm configuration
Configurable setpoint, alarm mode and hysteresis with up to four relay outputs.
Relay and signal versions
| Selection | Versions |
|---|---|
| Output version | Relay, PNP, RS485 or analogue configurations. |
| Relay arrangement | Two or four relay configurations. |
| Accuracy class | 0.1%, 0.25% or 0.5% FS configurations. |
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPC-2000 |
| Measuring-span configuration | 0–200 MPa |
| Accuracy configurations | 0.1% / 0.25% / 0.5% FS |
| Output configurations | Relay / PNP / RS485 / analogue |
| Relay configurations | Two / four relays |
| Local indication | Four-digit LED; selectable units |
| Alarm configuration | Adjustable setpoint, alarm mode and hysteresis |
| Mounting configuration | Axial panel mounting |
| Reference outline dimensions | 85 × 85 × 90 mm |
| Series supply | 12–36 V DC |
| Series ambient temperature | −20–60 °C |
| Enclosure configuration | IP66 |
| Process-fitting material | 304 stainless steel |
| Brand | WKSENSOR |
| Product reference | HH-762908909476 |
Application scenarios
Electro-contact gauge replacement
Axial digital pressure indication with configurable switching outputs.
Industrial automation.
