HPC-1000
Digital Pressure Switch
The HPC-1000 combines pressure indication and two relay outputs, with optional current, voltage or RS485 interfaces. The pictured high-temperature configuration has a finned section between the display head and pressure connection.
- Pressure span
- Selected spans up to 250 MPa
- Accuracy
- ±0.5% FS configuration
- Output options
- Two relays; optional 4–20 mA / 0–10 V / RS485
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Cooling-section configuration
The pictured high-temperature version has a finned metal section below the display head and a threaded pressure connection at the base.
- Local indication
- Four-digit LED indication with selectable display units.
- Alarm settings
- Adjustable alarm mode and deadband.
- Display-span setting
- Zero-to-full-scale setting is adjustable.

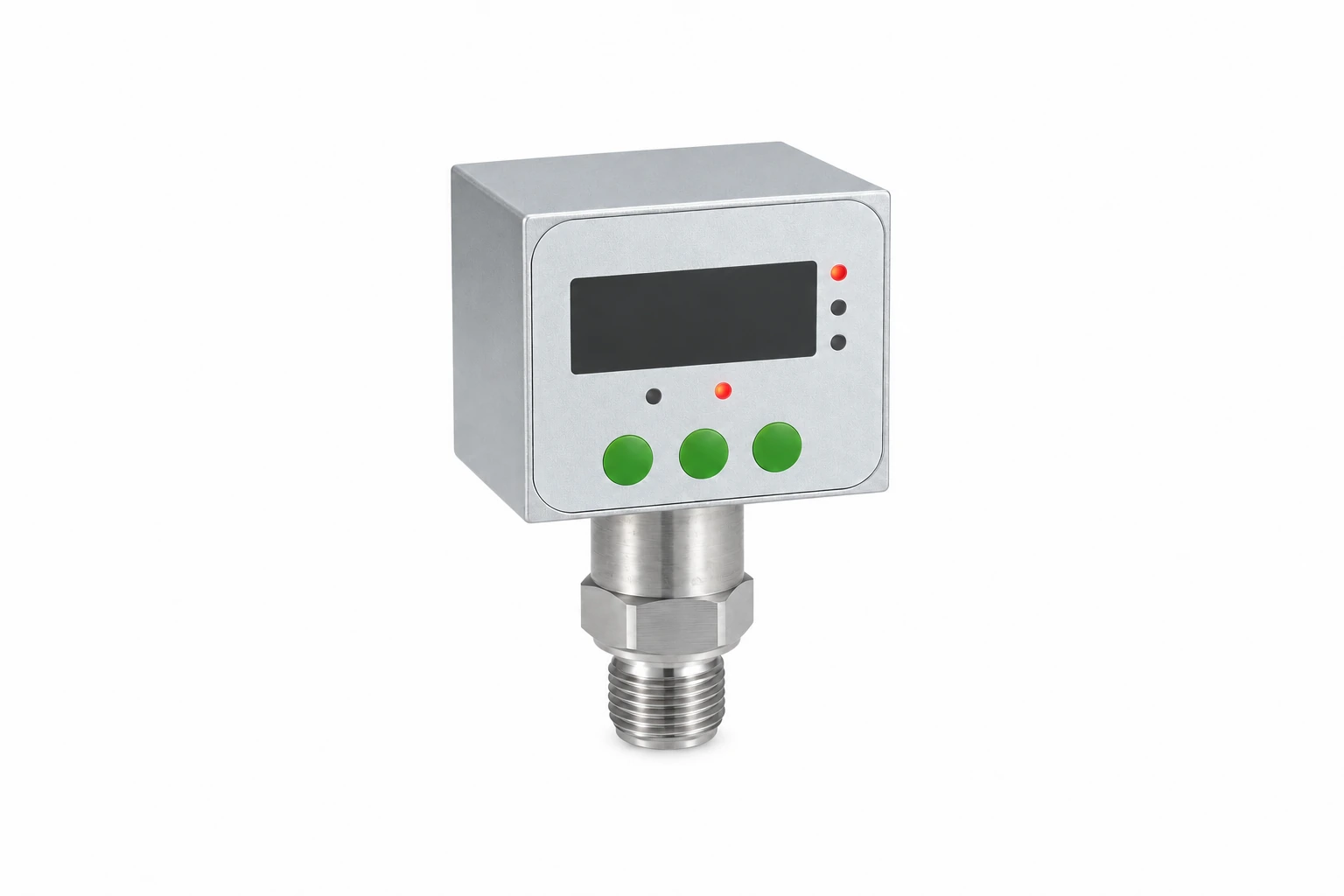

Standard connection
The standard connection reference uses a 304 stainless-steel fitting and a 2 m connection cable. Thread selections are G1/2, G1/4 or M20×1.5.
Pressure switching and interfaces
- Pressure span and reference
- Selected span up to 250 MPa; gauge or absolute configuration.
- Outputs
- Two relays with optional 4–20 mA, 0–10 V or RS485 interface.
- Process thread
- G1/2, G1/4 or M20×1.5.
- Fitting material
- 304 or 316 stainless steel, titanium or PTFE configuration.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPC-1000 |
| Pressure span | Selected spans up to 250 MPa |
| Pressure reference | Gauge / absolute configurations |
| Supply voltage | 12–36 V DC |
| Ambient temperature | −20–60°C |
| Ingress protection | IP66 |
| Output options | Two relays; optional 4–20 mA / 0–10 V / RS485 |
| Indication | Four-digit LED display |
| Housing material | Matte cast aluminium |
| Process-fitting material options | 304 / 316 stainless steel / titanium / PTFE |
| Process-thread options | G1/2 / G1/4 / M20×1.5 |
| Accuracy | ±0.5% FS configuration |
| Connection cable | 2 m standard cable |
| Brand | WKSENSOR |
| Product reference | HH-810062408443 |
Application scenarios
Fluid-pressure measurement and replacement of contact pressure gauges, mechanical pressure switches and pressure relays.
Oil
Pumping machinery and oilfield pipes.
Chemicals
Process towers and pipe networks.
Power
Outdoor substation equipment.
Energy
Photovoltaic panel arrays.
Water
Treatment basins and service walkways.
Industrial automation.
