HPT-9
Sanitary Pressure Transmitter
Sanitary pressure transmitter offered in display, high-temperature, clamp-connected and flush-diaphragm configurations, including the HPT-9P threaded version.
- Clamp-configuration reference span options
- −0.1–5 MPa; selected span in the pictured clamp configuration
- Accuracy options
- 0.1% / 0.25% / 0.5% FS versions
- Output options
- 4–20 mA / voltage / RS-485 / switch-output versions
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Clamp-connected assembly
The clamp-reference configuration lists selected spans within −0.1–5 MPa, 12–36 V DC supply and 304 or 316 stainless-steel fitting options.
Display and cooling

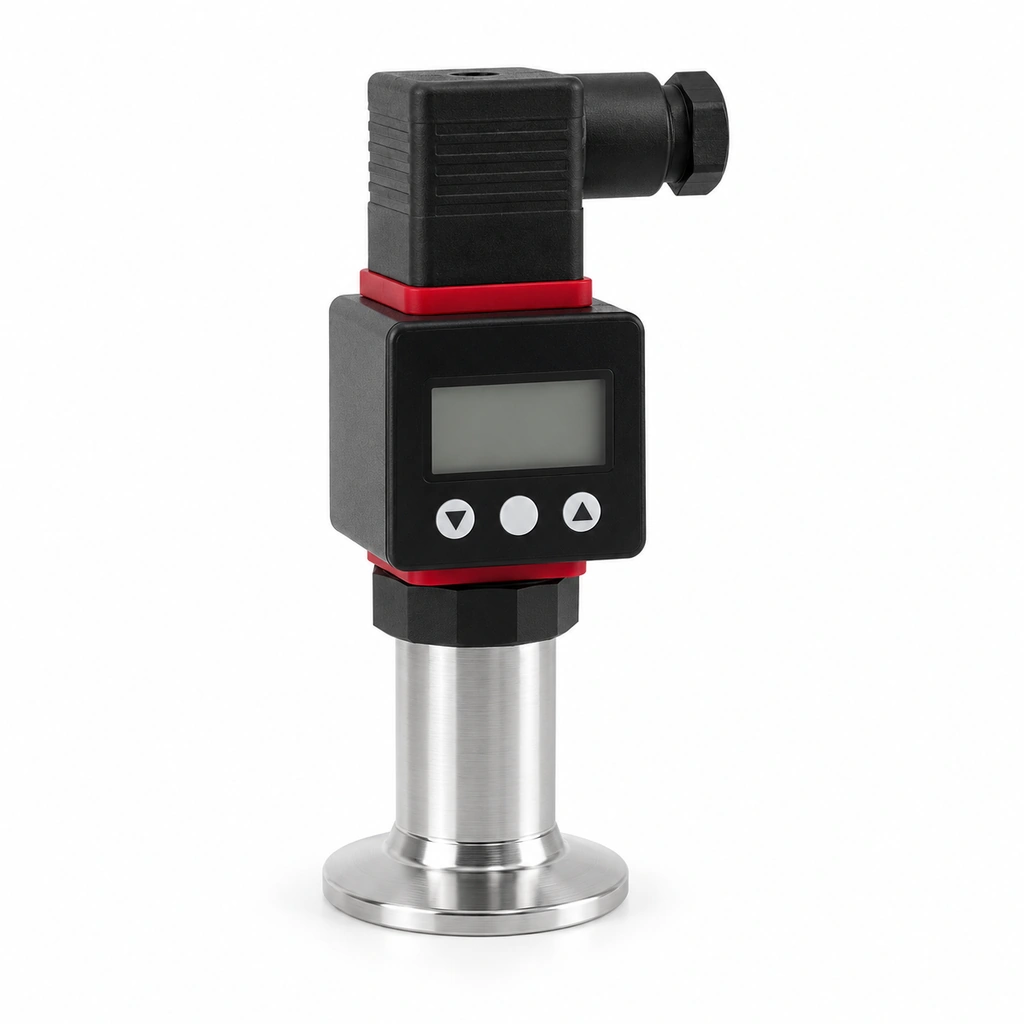

Display configuration
Local display with three membrane controls.

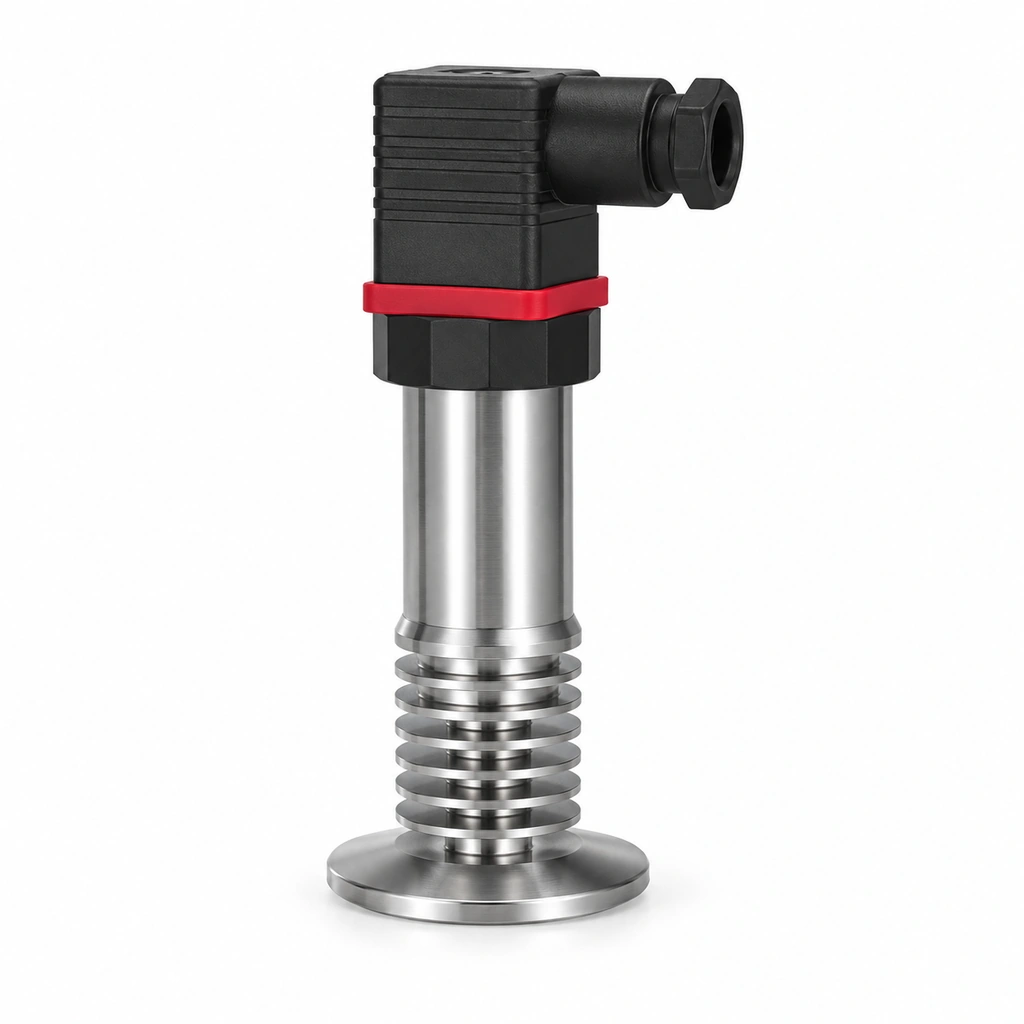

High-temperature configuration
Cooling fins above the clamp connection.
Process-facing styles

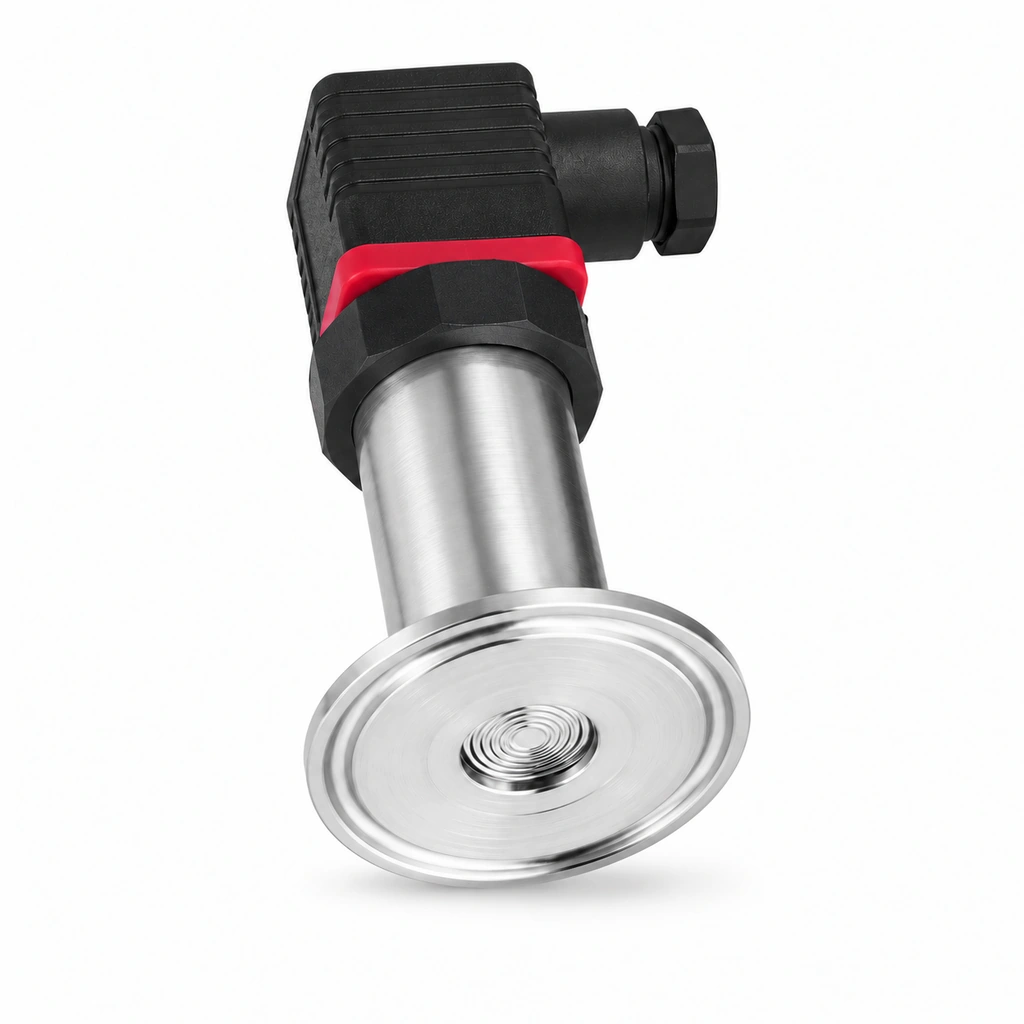

Clamp configuration
Raised central face within the clamp flange.

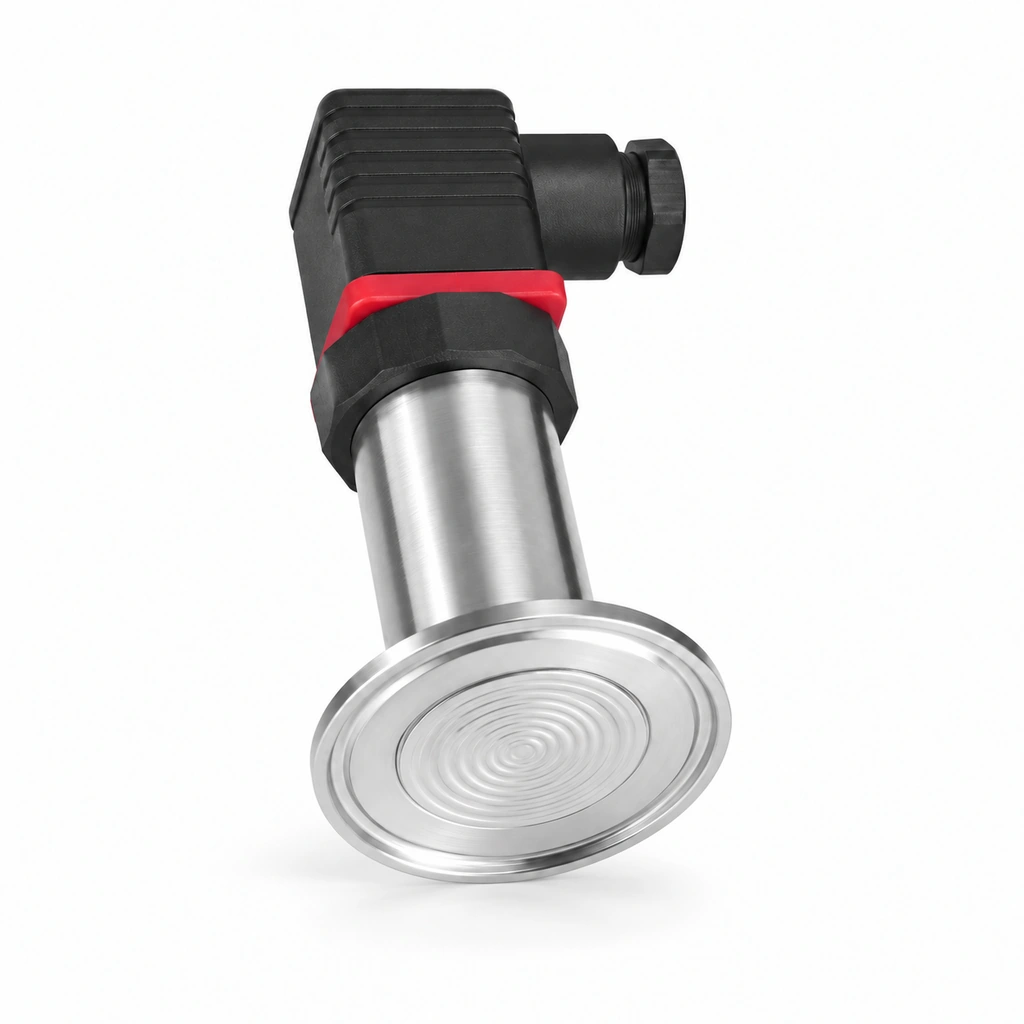

Flush-diaphragm configuration
Broad corrugated diaphragm at the process face.

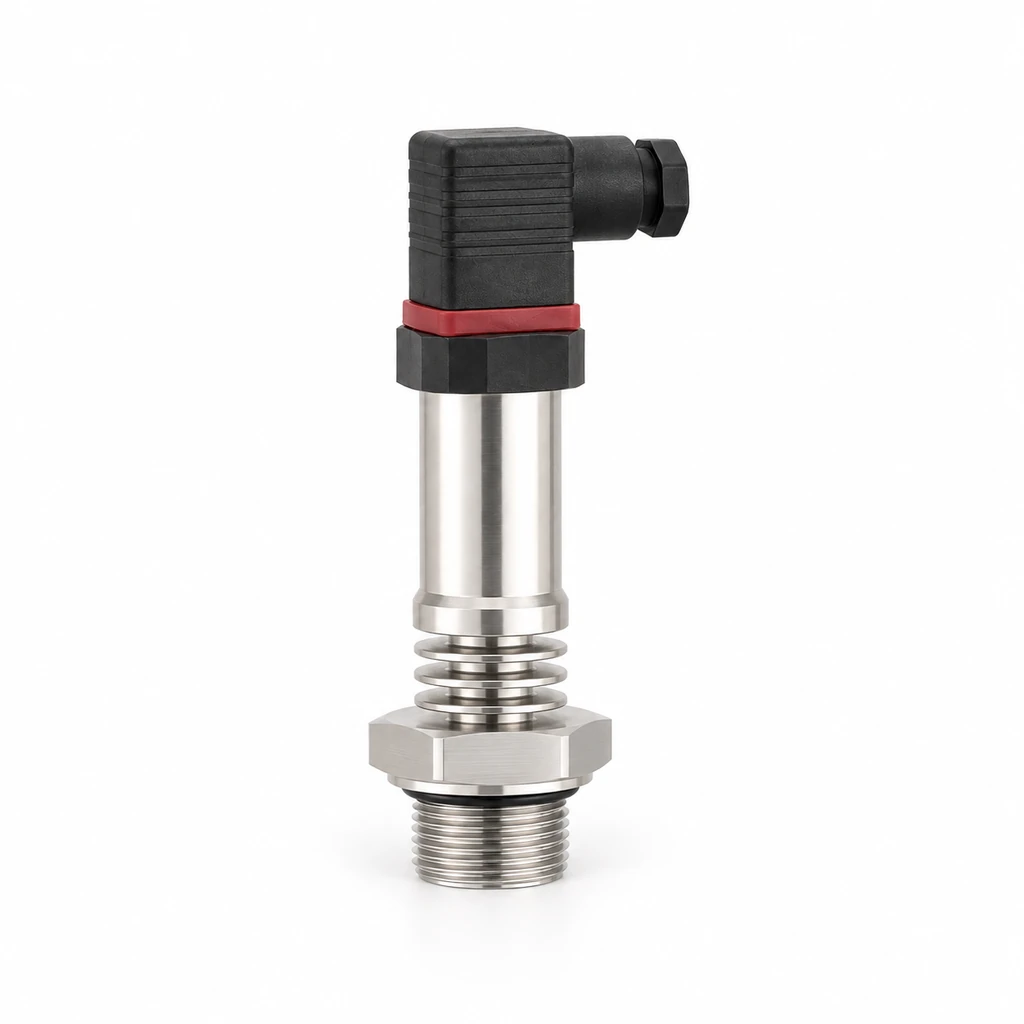

HPT-9P threaded configuration
Cooling fins above a hexagonal fitting and external process thread.
Pressure and fitting options
| Output | Configuration |
|---|---|
| Current | 4–20 mA |
| Voltage | 0–5 V in the clamp-reference chart; a 0–10 V version is a separate option. |
| Communication or switching | RS-485 or switch-output configuration |
- Style
- Display, high-temperature, clamp-connected, flush-diaphragm or HPT-9P threaded configuration.
- Pressure reference
- Gauge or absolute version.
- Accuracy class
- 0.1%, 0.25% or 0.5% FS version.
- Connection
- Clamp-connected or custom process interface.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPT-9 |
| Function | Sanitary pressure transmitter |
| Style options | Display / high-temperature / clamp-connected / flush-diaphragm / HPT-9P threaded configurations |
| Pressure reference options | Gauge / absolute versions |
| Clamp-configuration reference span options | −0.1–5 MPa; selected span in the pictured clamp configuration |
| Accuracy options | 0.1% / 0.25% / 0.5% FS versions |
| Supply voltage | 12–36 V DC |
| Ambient temperature | −20–60 °C |
| Output options | 4–20 mA / voltage / RS-485 / switch-output versions |
| Enclosure protection | IP65; selected configuration |
| Process-fitting material options | 304 / 316 stainless steel |
| Configuration weight | 80 g |
| Brand | WKSENSOR |
| Product reference | HH-777833969210 |
Application scenarios
Oil
Oilfield pumpjacks.
Chemicals
Chemical processing columns and pipework.
Power
Electrical substation equipment.
Energy
Photovoltaic panel arrays.
Water
Water-treatment basins.
Industrial automation.
