HPT-4
Digital Flush-Diaphragm Pressure Transmitter
A local-display pressure transmitter with a flanged flush-diaphragm configuration and separately offered process-connection forms.
- DN50 configuration pressure range
- 0–5000 kPa
- Selected accuracy classes
- ±0.2% FS / ±0.5% FS
- Selected output
- 4–20 mA
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
The HPT-4 provides local digital pressure indication with a flanged flush-diaphragm process connection. Threaded, clamp and high-temperature-style connection forms are separate configurations.
Flanged pressure-transmitter configuration
The DN50 flange configuration combines a 0–5000 kPa pressure range, 4–20 mA output and a 24 V supply.
- Local digital indication
- Pressure values are shown in the round instrument window.
- Adjustable parameters
- Parameters can be adjusted using the control buttons.
Alternative process connections
Cooling-section connection reference

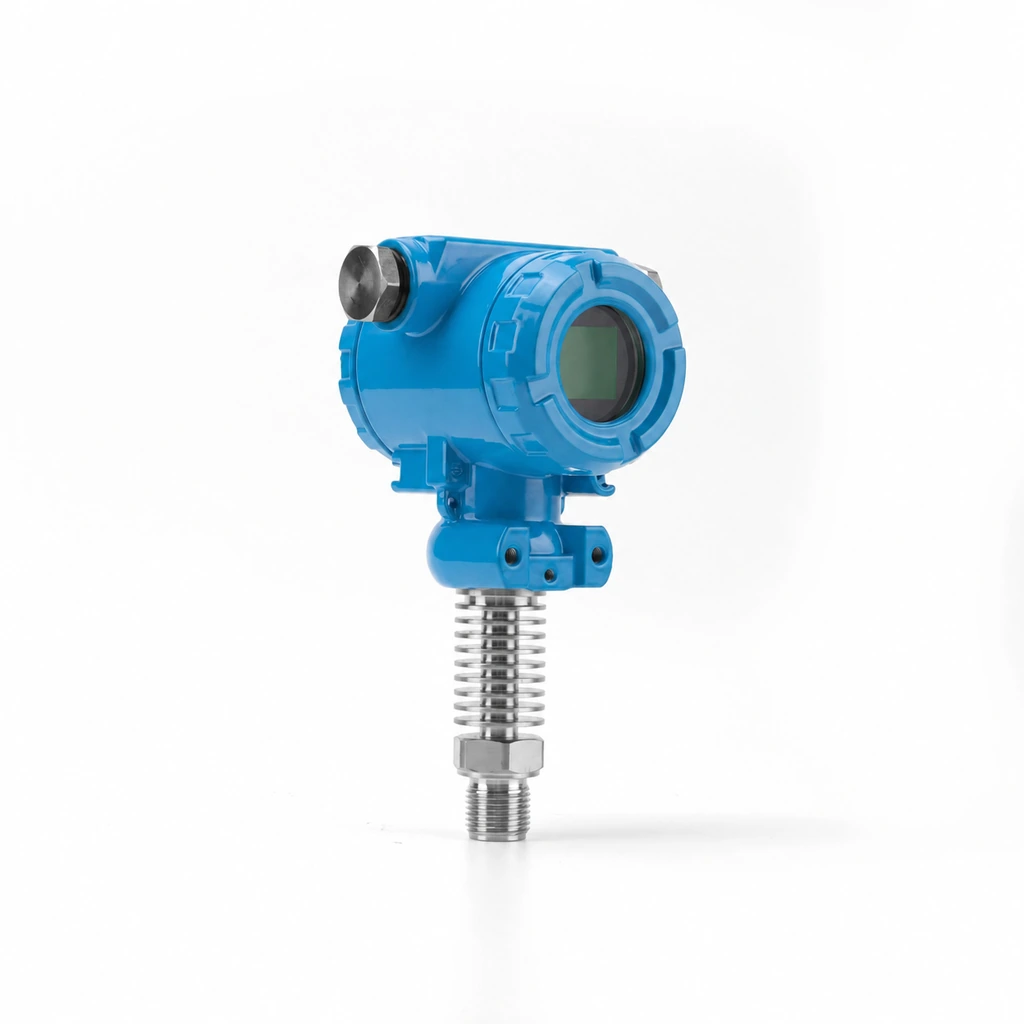

A stack of thin metal rings sits between the blue instrument head and the lower hexagonal fitting and threaded connection.
Clamp-connection alternative

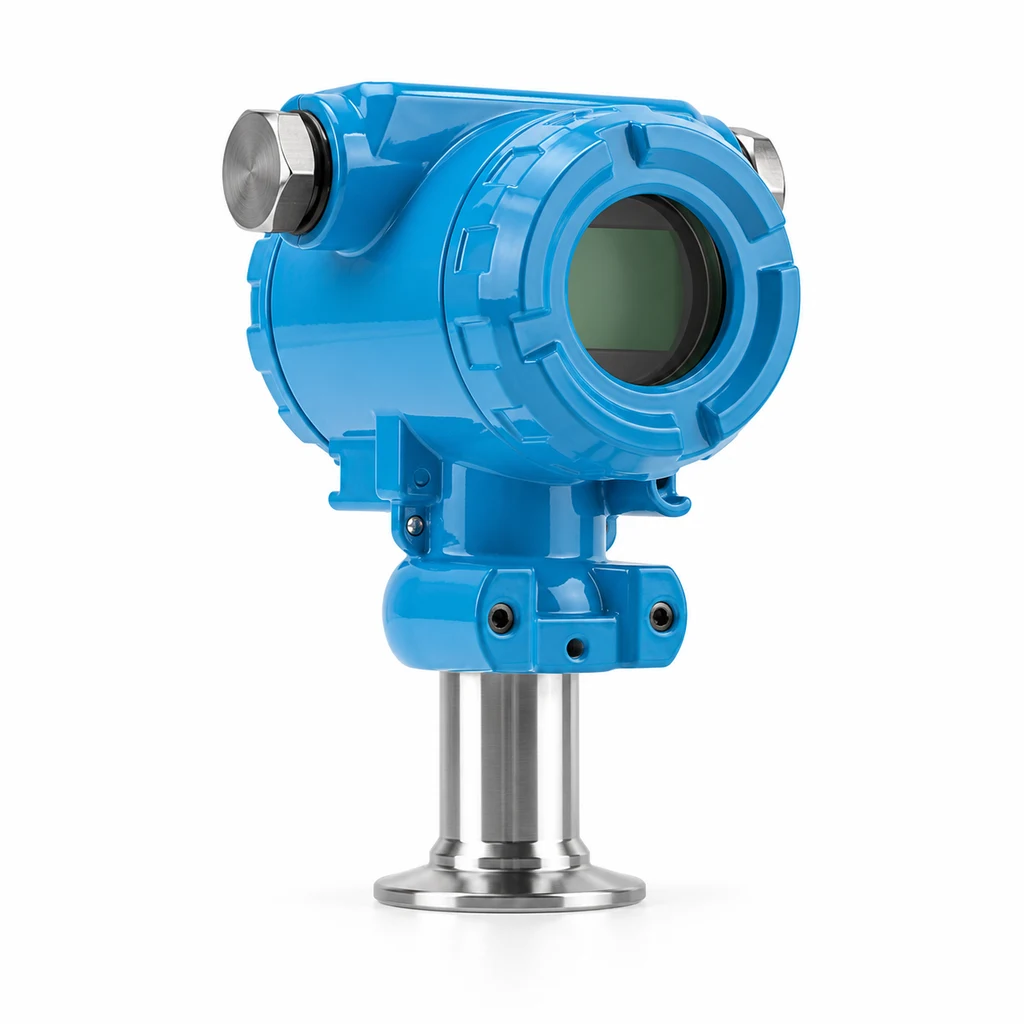

A smooth metal neck ends in a compact clamp flange. This is a separate connection form from the DN50 flange configuration.
Threaded-reference dimensions
The separate threaded reference drawing gives a 92 mm upper housing width, 120 mm height above the threaded section and 19 mm threaded length. It does not dimension the DN50 flange or the clamp and cooling-section configurations.
DN50 configuration and output choices
- Pressure span
- The DN50 configuration has a 0–5000 kPa range.
- Process connection
- DN50 flange option; separately pictured alternatives include threaded, flange, clamp and high-temperature-style forms.
- Interface
- 4–20 mA output, with RS-485 and 0–10 V alternatives available for the HPT-4 series.
- Accuracy
- Selected classes: ±0.2% FS or ±0.5% FS.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPT-4 |
| Selected process connection | Flange |
| Flange option | DN50 |
| DN50 configuration pressure range | 0–5000 kPa |
| Measurement media | Water / gas / oil |
| Supply voltage | 24 V |
| Selected accuracy classes | ±0.2% FS / ±0.5% FS |
| Selected output | 4–20 mA |
| Additional interface options | RS-485 / 0–10 V |
| Flange-configuration ingress rating | IP65 |
| Connection-form alternatives | Threaded / flange / clamp / high-temperature style |
| Brand | WKSENSOR |
| Product reference | HH-921731856682 |
