HPC-10
Electronic Pressure Switch
Compact electronic pressure switch with two NPN or two PNP alarm-output configurations and optional RS485 communication.
Two NPN or two PNP output configurationsOptional RS485 communicationG1/4 threaded pressure connection
- Switching output configurations
- Two NPN or two PNP outputs
- Communication option
- RS485
- Supply voltage
- 12–36 VDC
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Cable-outlet pressure switch
Diffused-silicon sensing for hydraulic and pneumatic pressure, with two NPN or two PNP alarm outputs.
- Alarm thresholds
- Adjustable upper and lower pressure limits.
- Local indication
- Direct cable outlet; no local display.

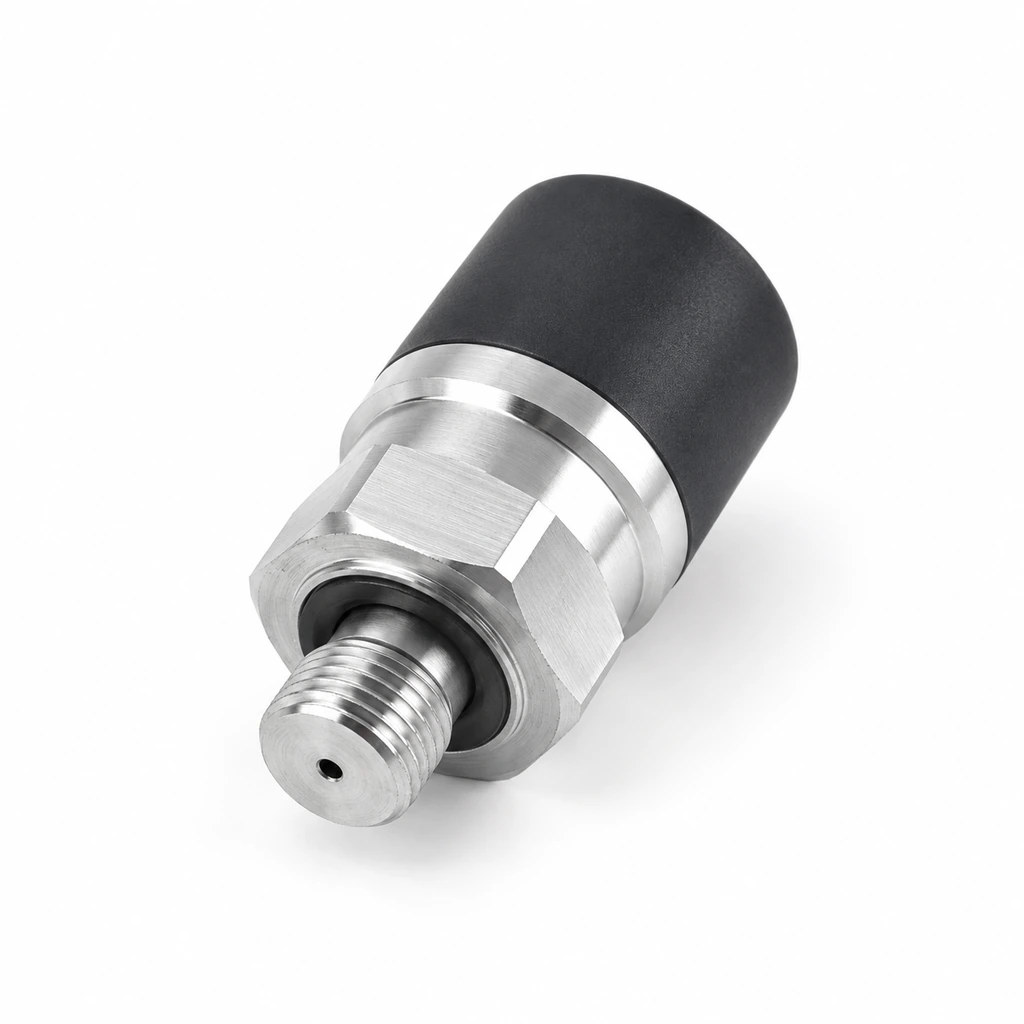

Threaded pressure connection
G1/4 thread with a seal groove and a 304 stainless-steel connection.
- Metal body
- Stainless steel.
- RS485 option
- Optional communication for parameter adjustment.
Pressure and switch versions
- Additional measuring span
- −0.1–60 MPa selected configuration.
- Reference measuring span
- −0.1–10 MPa configuration.
- Reference accuracy classes
- 0.1% FS / 0.25% FS / 0.5% FS; selected configuration.
- Pressure reference
- Gauge or absolute pressure configuration.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model and function | HPC-10 / Electronic pressure switch |
| Sensing element | Diffused silicon |
| Pressure reference options | Gauge / absolute |
| Supply voltage | 12–36 VDC |
| Switching output configurations | Two NPN or two PNP outputs |
| Communication option | RS485 |
| Ambient temperature | −20–60 °C |
| Medium temperature | −20–80 °C |
| Electrical connection | Direct cable outlet |
| Pressure connection | G1/4 thread with seal groove |
| Connection material | 304 stainless steel |
| Metal body material | Stainless steel |
| Local indication | No display |
| Brand | WKSENSOR |
| Product reference | HH-805512098979 |
Application scenarios
Oil
Pumpjacks and field pipelines.
Chemicals
Process columns and vessels.
Power
Transformers and switchyard equipment.
Energy
Photovoltaic panel rows.
Water
Treatment basins and walkways.
Industrial automation.
