HPC-50
Digital Pressure Switch
HPC-50 digital pressure switch with local parameter adjustment, a cast-aluminum enclosure and selectable relay, NPN or PNP output configurations.
- Output configurations
- Two relays / two NPN / two PNP outputs
- Supply voltage
- 12–36 V DC; nominal 24 V DC
- Thread options
- M20×1.5 / G1/2 / G1/4
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Clamp configuration
Parameters are adjustable using local controls. Double-layer circuitry with multiple protection functions.
Threaded configuration

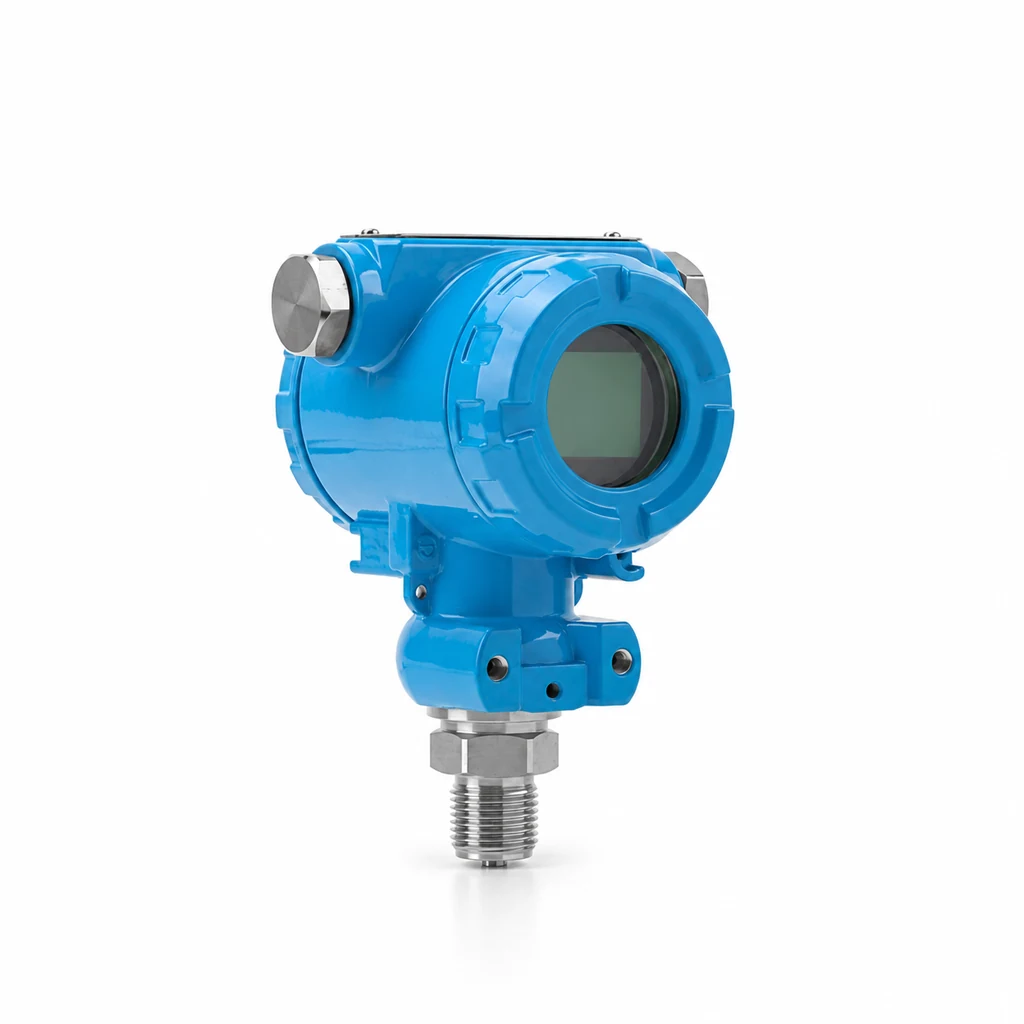

Thread choices include M20×1.5, G1/2 and G1/4. Connection-material configurations include 304 or 316 stainless steel, titanium and PTFE.
Threaded-reference dimensions
92 mm upper housing width, 120 mm from the top to the start of the threaded section, and 19 mm threaded length. These dimensions apply to the pictured threaded reference.
Flange connection

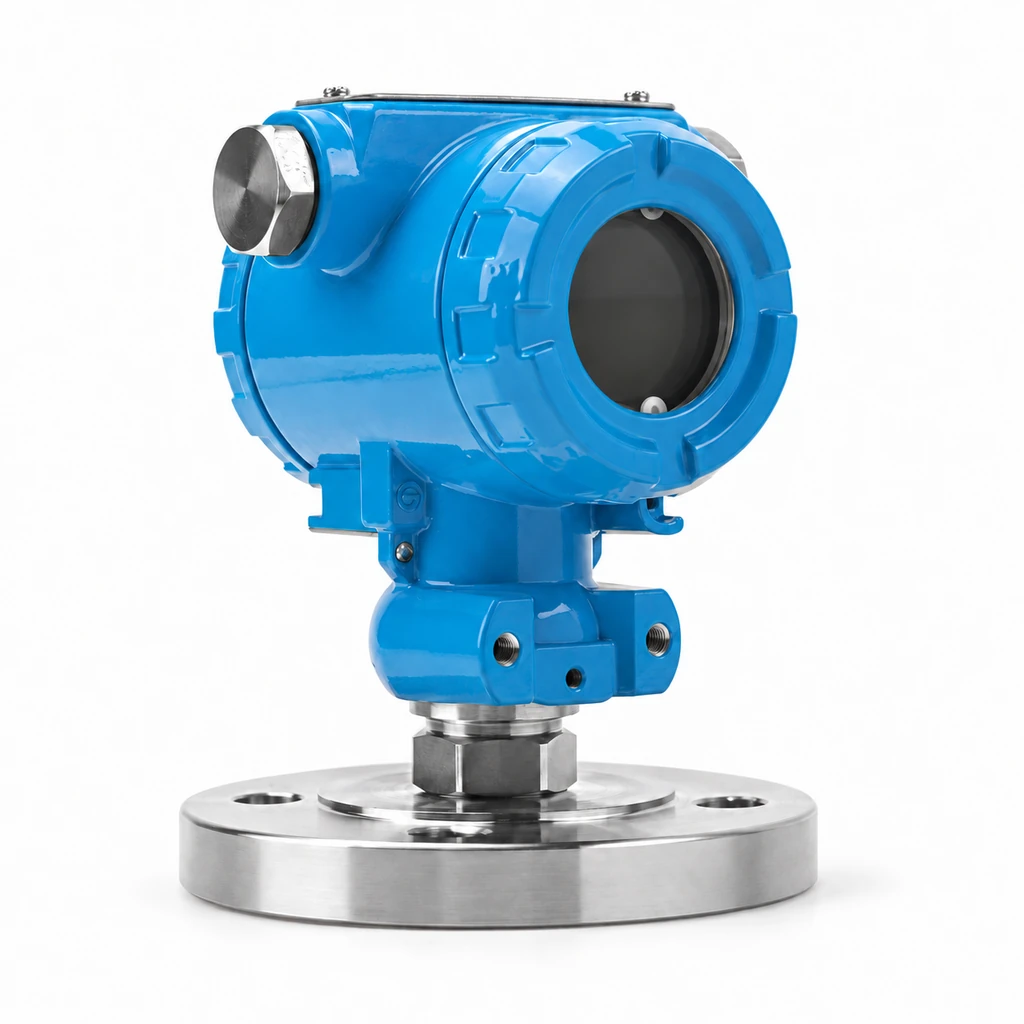

Circular process flange below the display housing and metal fitting.
Cooling-section configuration

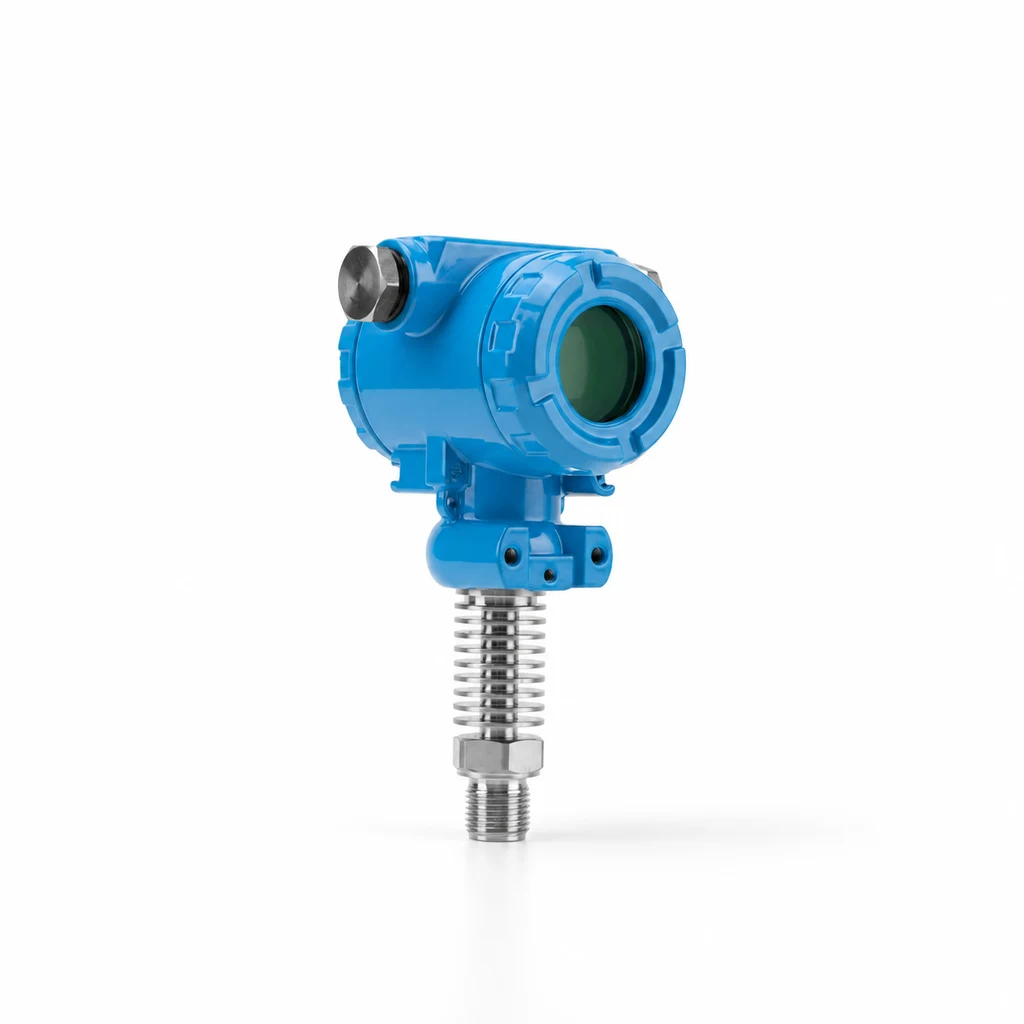

A stack of metal rings separates the housing from the hexagonal fitting and threaded process connection.
Process and switching options
- Standard pressure span
- −0.1–60 MPa gauge-pressure configuration.
- Output
- Two-relay, two-NPN or two-PNP configuration.
- Process connection
- Threaded, flange, clamp or high-temperature structure.
- Thread
- M20×1.5, G1/2 or G1/4.
- Connection material
- 304 or 316 stainless steel, titanium or PTFE connection.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPC-50 |
| Instrument function | Digital pressure switch |
| Supply voltage | 12–36 V DC; nominal 24 V DC |
| Ambient temperature | −20–60°C |
| Medium temperature | −20–80°C |
| Housing material | Cast aluminum |
| Output configurations | Two relays / two NPN / two PNP outputs |
| Thread options | M20×1.5 / G1/2 / G1/4 |
| Connection-material options | 304 stainless steel / 316 stainless steel / titanium / PTFE |
| Medium options | Water / gas / oil |
| Indication | Local digital display |
| Brand | WKSENSOR |
| Product reference | HH-980435371095 |
