SBW-2
Digital Temperature Transmitter
Integrated digital temperature transmitter with a local display and 4–20 mA, 0–10 V or RS485 output options.
- Accuracy
- ±0.5% FS reference; confirm the selected element, span and test conditions
- Output options
- 4–20 mA / RS485 / 0–10 V
- Sensing-element options
- Pt100 RTD / thermocouple; K-type thermocouple configuration available
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Threaded temperature assembly
Blue-painted metal housing with a side cable-entry plug, circular threaded cover and local display window. A threaded connection joins the housing to the integral temperature probe.
Clamp connection
Clamp fitting below the transmitter housing.

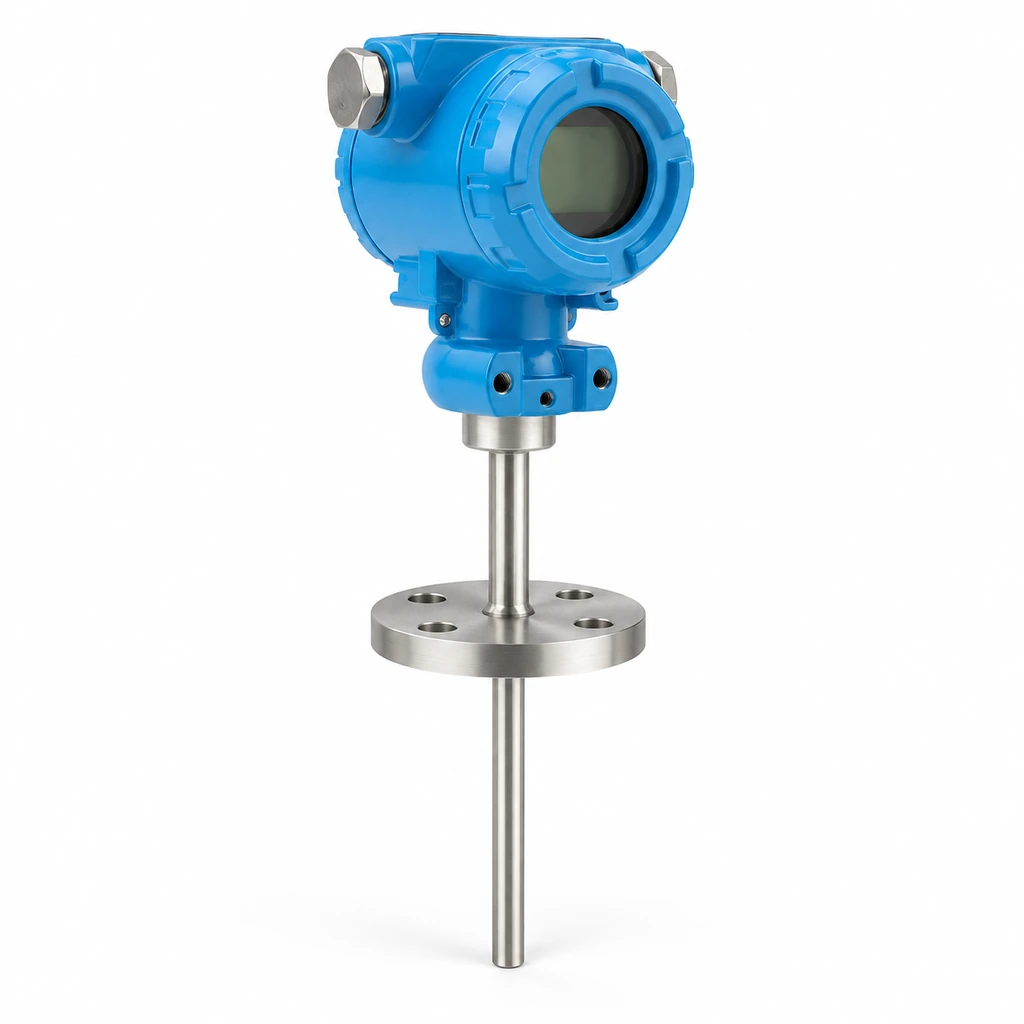

Flange connection
Flange plate around the temperature probe.
Configuration and selection
| Temperature span | The applicable probe configurations for the 0–800 °C and −50–400 °C temperature spans require confirmation; specify the sensing element and calibrated span in your inquiry. |
|---|---|
| Power supply | Supply ratings of 12–32 V and 12–36 V DC require configuration-specific confirmation. Check the supply type and voltage limits for the selected output version before connecting power. |
| Ambient temperature | −20–60 °C reference; confirm for the selected assembly and installation. |
The 800 °C figure requires confirmation for the exact probe assembly and must not be treated as a universal Pt100 rating. Include the normal and maximum process temperatures, probe length, connection and output when requesting a configuration.
Temperature sensing and signal
Pt100 RTD or thermocouple, including a K-type thermocouple configuration.
4–20 mA, 0–10 V or RS485 outputs; an RS485 Modbus version is available.
Connection and probe protection
Threaded, clamp or flange arrangements. Threaded versions: G1/2, G1/4 or M20×1.5.
Optional protection sleeve and custom configurations.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model and function | SBW-2 / Digital temperature transmitter |
| Sensing-element options | Pt100 RTD / thermocouple; K-type thermocouple configuration available |
| Accuracy | ±0.5% FS reference; confirm the selected element, span and test conditions |
| Output options | 4–20 mA / RS485 / 0–10 V |
| Ingress protection | IP66 reference; confirm the ordered housing and connection |
| Mounting options | Threaded / clamp / flange |
| Brand | WKSENSOR |
| Product reference | HH-807875983728 |
Application scenarios
Temperature measurement for oil, chemicals, power, energy, water and industrial automation.
Oil
Pumpjacks and surface pipelines.
Water
Treatment basins and access walkways.
