HPT-6L
Cable-Outlet Pressure Transmitter
The HPT-6L is a diffused-silicon pressure transmitter with direct-cable, plug-in, booted-cable and flange-base configurations for compatible water, gas and oil.
- Pressure span
- Selected spans up to 250 MPa
- Threaded-configuration accuracy classes
- 0.1% FS / 0.25% FS / 0.5% FS
- Output options
- 4–20 mA / 0–5 V / 0–10 V / 0.5–4.5 V / 0.5–2.5 V / RS485 / switching configurations
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Cable and connector configurations
The photographed alternatives show an angled connector, direct cable, plug-in connection and different metal cable-entry arrangements. Custom cable-exit configurations include direct-cable and plug-in forms.
Cable entries

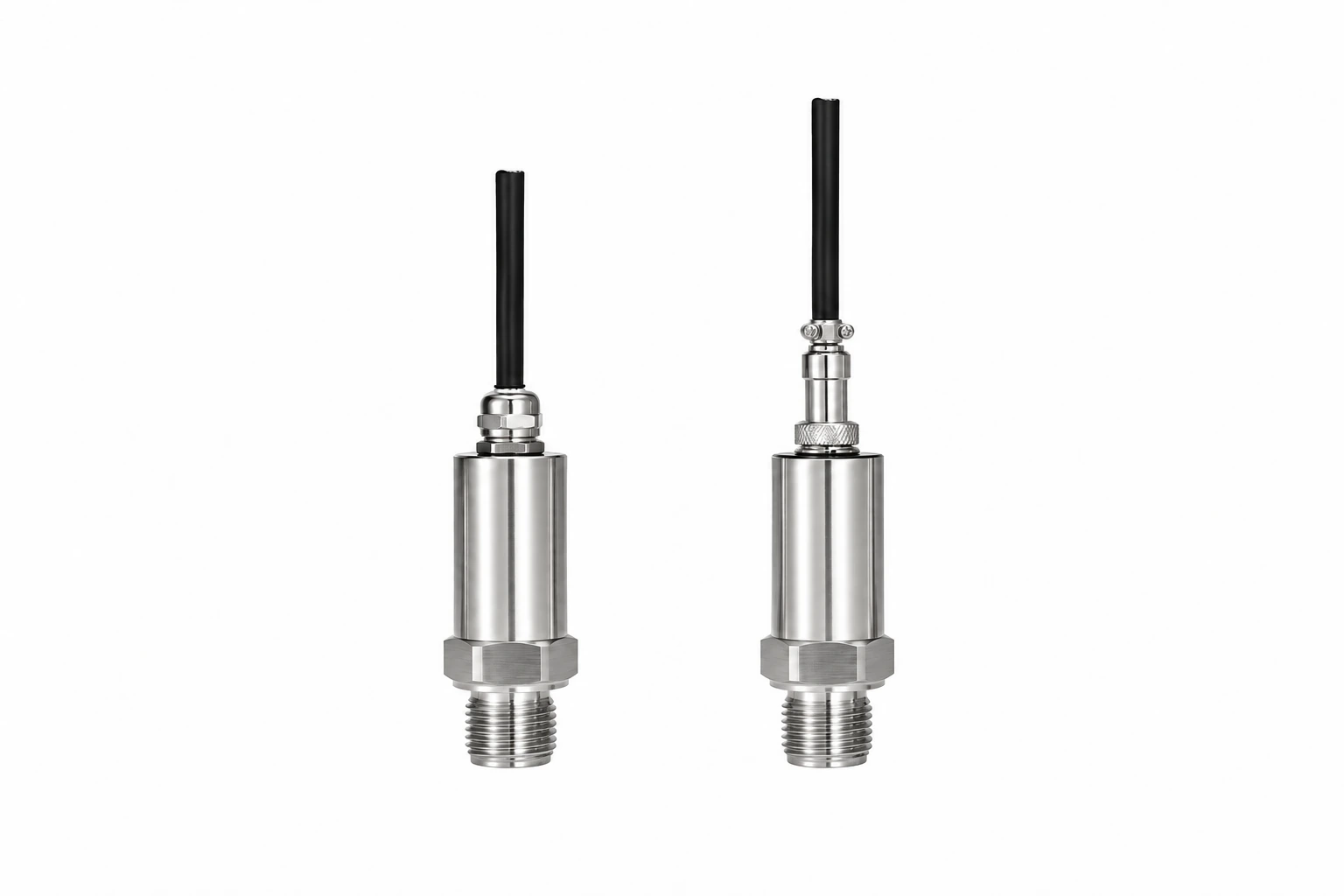

Cable-entry comparison
Direct cable
A cable gland above the cylindrical body.
Plug-in
A narrow connector neck, knurled collar and two fastening points.
Booted and flanged assemblies

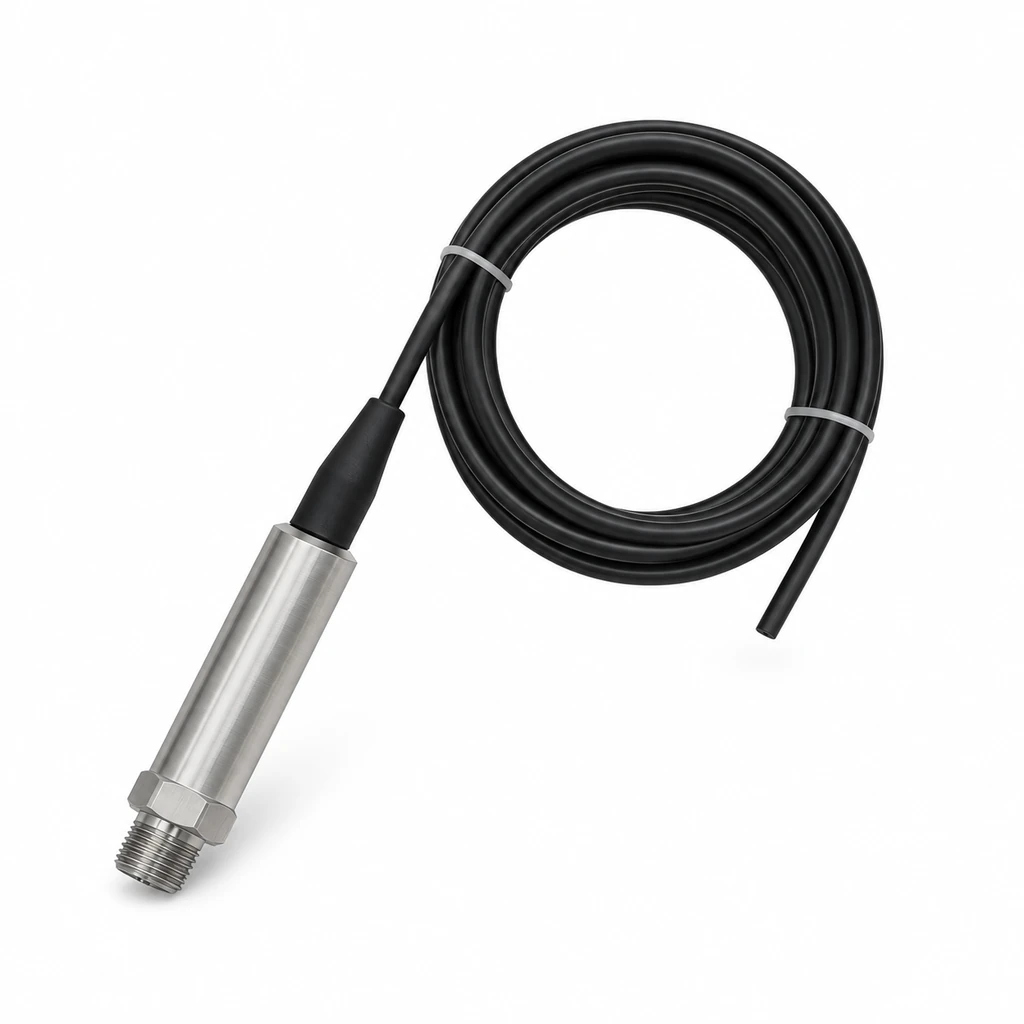

Booted cable configuration
A black boot joins the coiled cable to the metal cylinder, with a hexagonal fitting and male thread below.

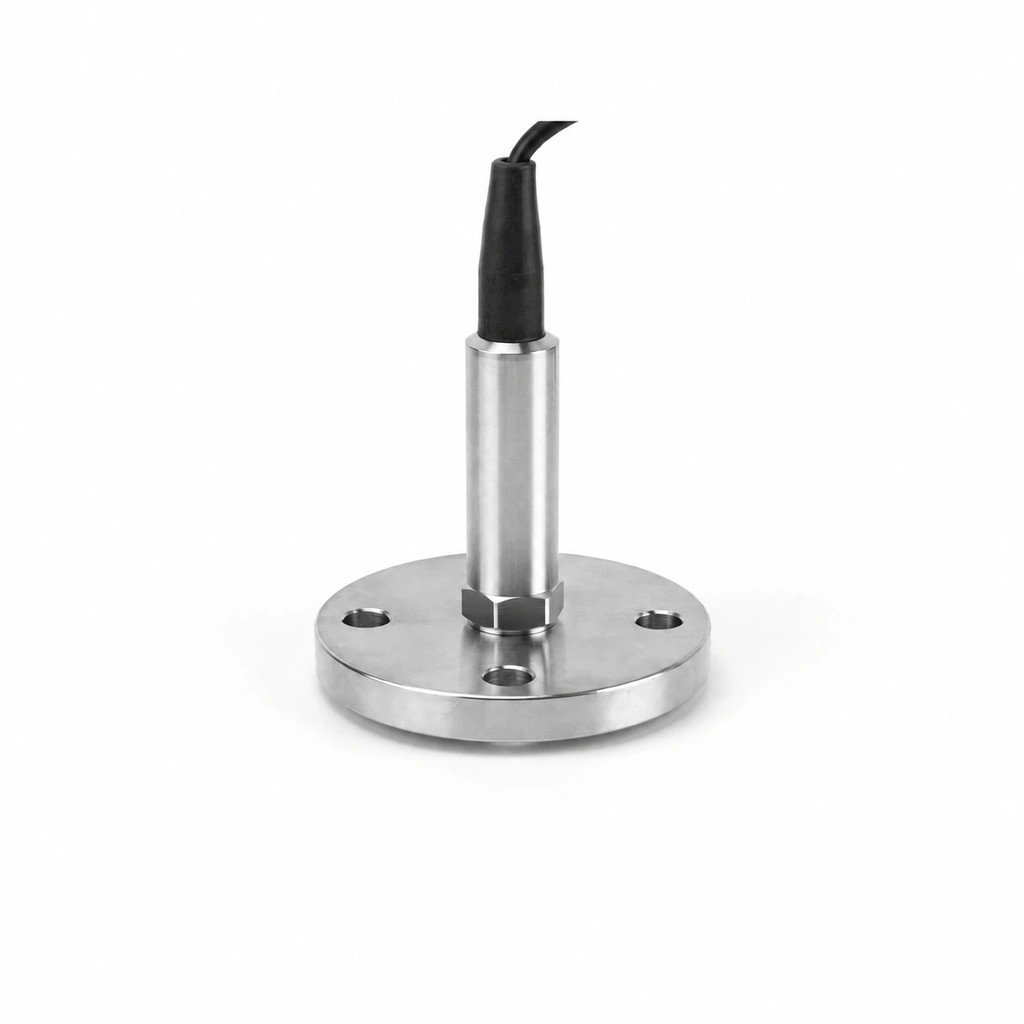

Flange-base configuration
A circular metal flange sits below the hexagonal fitting and booted cable-entry body.
G1/4 threaded and flange-base configurations are available.
Pressure and electrical versions
- Pressure span and reference
- Selected span up to 250 MPa; gauge or absolute configuration.
- Output and supply
- Current, voltage, RS485 or switching output versions; 12–36 V DC, 9–24 V DC or 3.1–5 V DC supply configurations.
- Accuracy
- 0.1% FS, 0.25% FS or 0.5% FS class for the threaded configuration.
- Process fitting
- G1/4 threaded or flange-base configuration; 304 or 316 stainless-steel or PTFE fitting options.
- Cable connection
- Direct cable, plug-in, booted cable or alternative metal cable-entry arrangement.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPT-6L |
| Sensing principle | Diffused silicon |
| Pressure span | Selected spans up to 250 MPa |
| Supply options | 12–36 V DC / 9–24 V DC / 3.1–5 V DC versions |
| Output options | 4–20 mA / 0–5 V / 0–10 V / 0.5–4.5 V / 0.5–2.5 V / RS485 / switching configurations |
| Threaded-configuration accuracy classes | 0.1% FS / 0.25% FS / 0.5% FS |
| Ambient temperature | −20–60°C |
| Pressure reference | Gauge / absolute configurations |
| Process connection | G1/4 threaded or flange-base configurations |
| Process-fitting material options | 304 / 316 stainless steel / PTFE |
| Measuring media | Compatible water, gas or oil |
| Threaded-configuration weight | 95 g |
| Electrical connection | Direct cable / plug-in / booted cable / alternative metal cable-entry configurations |
| Brand | WKSENSOR |
| Product reference | HH-923257885583 |
