GW-100
LoRaWAN Gateway
The GW-100 receives LoRaWAN device messages and forwards them through a selected 4G, Ethernet or Wi-Fi backhaul connection, with Web and MQTT configuration.
- Backhaul options
- 4G / Ethernet / Wi-Fi (2.4 GHz)
- Forwarding mode
- UDP packet forwarding
- Wireless network
- LoRaWAN
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
LoRaWAN gateway
Blue metal enclosure with two antenna connection points and slotted mounting ears.
Compatible LoRaWAN devices
GW-100
UDP packet forwarding
Selected backhaul
4G / Ethernet / Wi-Fi
Network and power connections
RJ45 network jack and a two-position power terminal on the front edge.

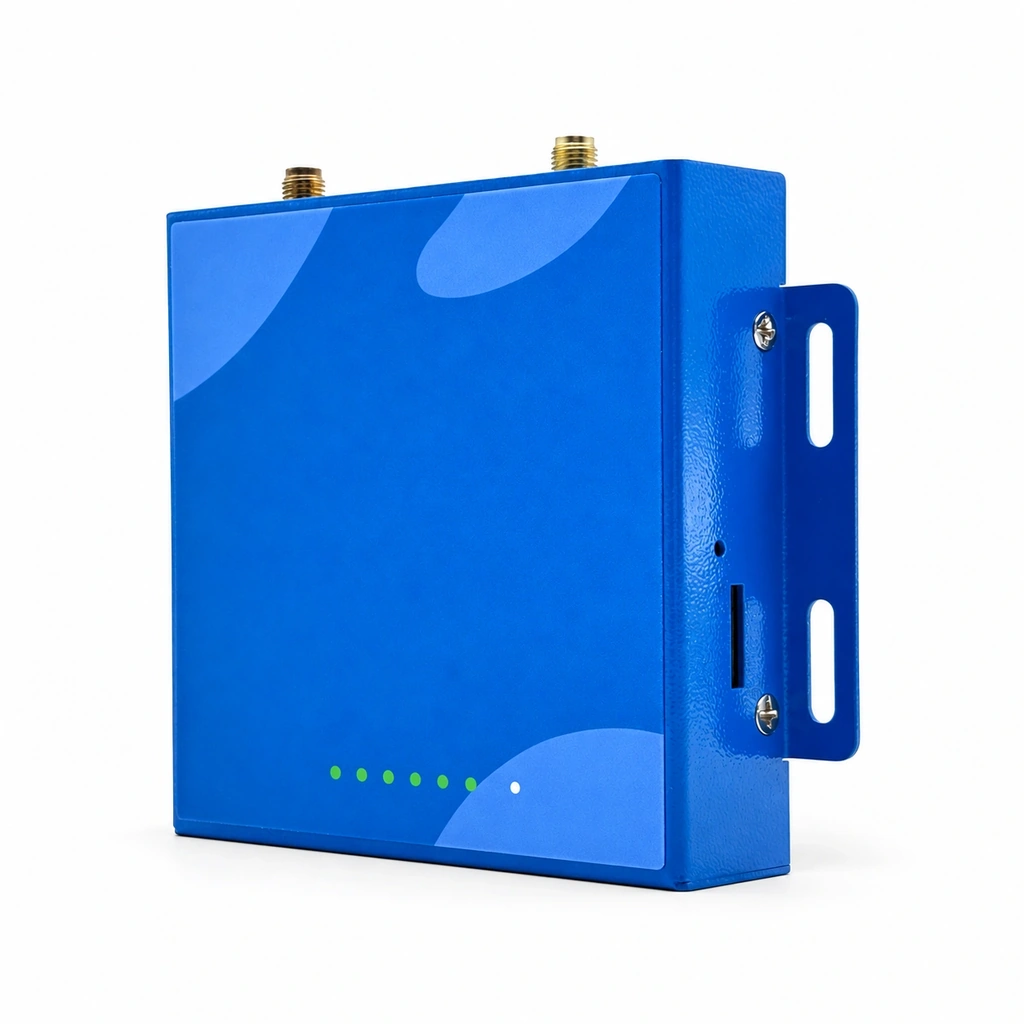

Side SIM access
SIM slot beside the side screws and slotted mounting ear.
Enclosure and mounting references
| Drawing reference | Value |
|---|---|
| A · Enclosure width | 94.80 |
| B · Overall width including mounting ears | 116.80 |
| C · Horizontal mounting reference | 106 |
| D · Enclosure height in plan | 92 |
| E · Mounting-ear height | 62 |
| F · Vertical mounting-slot reference | 48 |
| G · Profile height | 24.10 |
Confirm the dimensional units and obtain the mounting drawing for the supplied enclosure before drilling the panel or selecting mounting hardware.
Configuration and selection
| RF / 4G | Two top antenna connection points |
|---|---|
| WAN | RJ45 network jack on the front edge |
| V+ / V− | Two-position power terminal |
| SIM | Slot on the side of the enclosure |
Regional band versions: 470, 868, 915 or 923. Backhaul configurations: 4G, Ethernet or 2.4 GHz Wi-Fi. Web and MQTT provide the configuration interfaces.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | GW-100 |
| Wireless network | LoRaWAN |
| Regional band versions | 470 / 868 / 915 / 923 |
| Backhaul options | 4G / Ethernet / Wi-Fi (2.4 GHz) |
| Configuration interfaces | Web / MQTT |
| Forwarding mode | UDP packet forwarding |
| Brand | WKSENSOR |
| Product reference | HH-1085185112590 |
Application scenarios
LoRaWAN connectivity for buildings, power, water, oil and petrochemicals, fire protection and industrial automation, including traffic, irrigation and energy-management uses.
Buildings
Office buildings and facility infrastructure.
Power
Substation equipment and utility structures.
Water
Water-treatment basins and walkways.
Oil and petrochemicals
Pumpjacks and oilfield pipework.

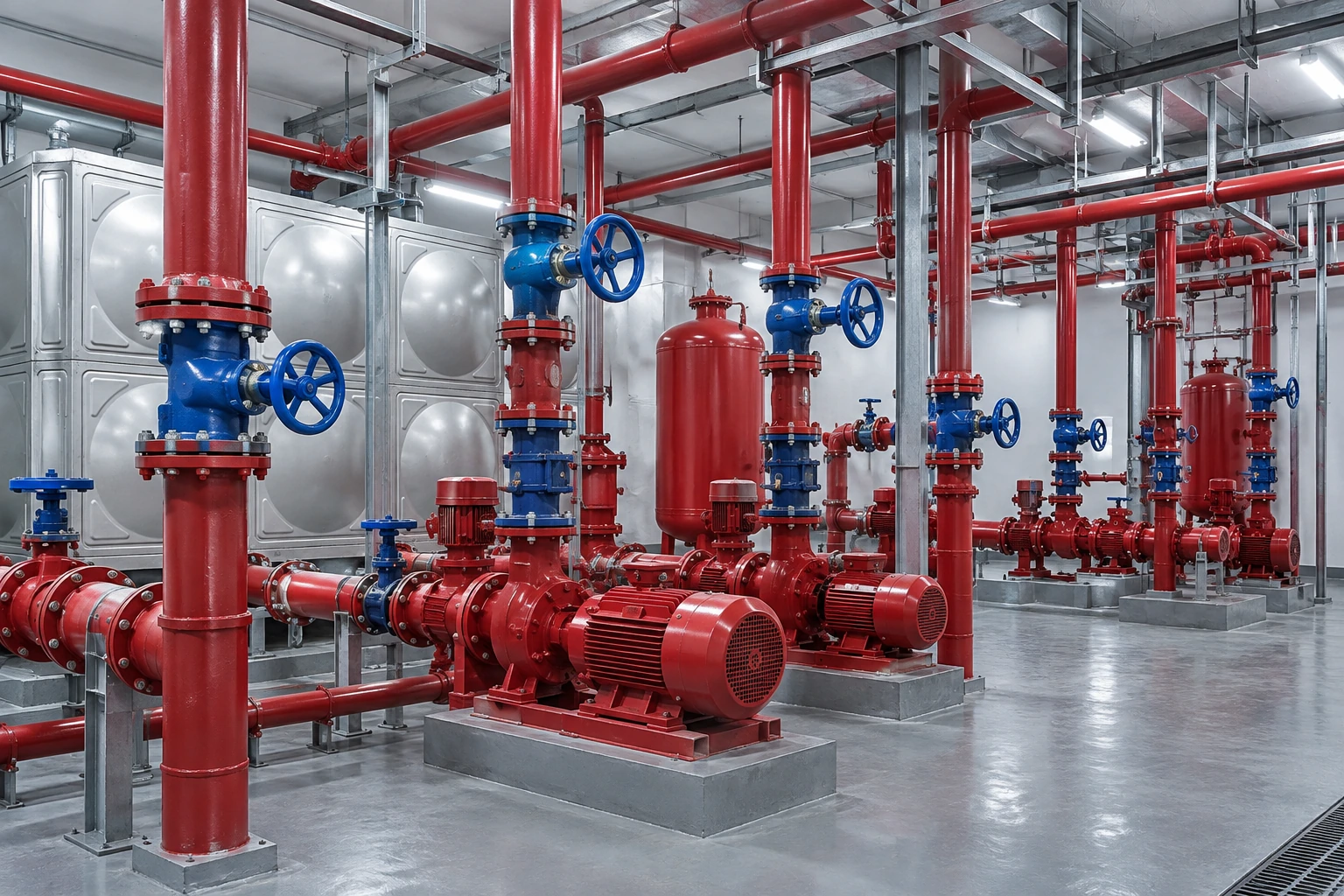

Fire protection
Fire-service pumps and supply pipework.
