GW-1000
LoRaWAN Gateway
A LoRaWAN gateway with selectable regional bands, 4G, Ethernet or Wi-Fi backhaul and Web or MQTT configuration.
- Backhaul options
- 4G / Ethernet / Wi-Fi
- Forwarding modes
- UDP Packet Forward / Chirpstack MQTT Forwarder
- Field radio interface
- LoRaWAN
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
The GW-1000 connects LoRaWAN field nodes with a network backhaul. Regional radio bands and 4G, Ethernet or Wi-Fi backhaul configurations are available.
LoRaWAN gateway
A low-profile blue enclosure with slotted mounting ears and side antenna connections.
- Network backhaul
- 4G, Ethernet and Wi-Fi configurations connect the gateway to the network.

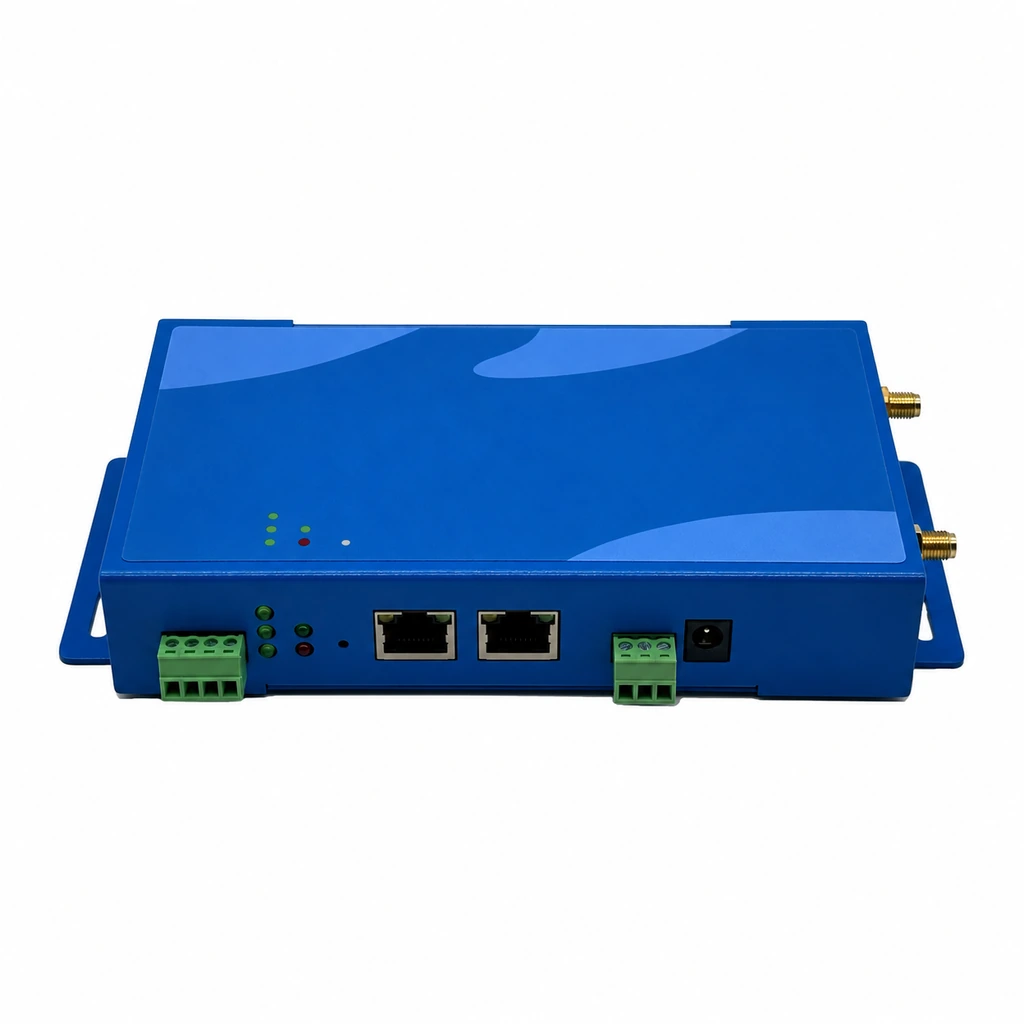

Connection side
Two rectangular network sockets sit between green terminal blocks, with a round power connection at the right.
- Packet forwarding
- UDP Packet Forward and Chirpstack MQTT Forwarder are the forwarding modes.
Enclosure outline
Body and mounting-ear references
Profile and plan view of the pictured enclosure. The dimensional drawing does not state a unit.
| Drawing reference | Value |
|---|---|
| A Overall horizontal extent | 191.60 |
| B Horizontal mounting-slot reference | 176.60 |
| C Body horizontal extent | 164 |
| D Body vertical extent | 91.90 |
| E Left mounting-slot vertical reference | 52 |
| F Profile height | 33.50 |
Configuration and selection
- Regional radio band
- 433 / 470 / 868 / 915 / 923 options
- Backhaul
- 4G / Ethernet / Wi-Fi
- Configuration interface
- Web / MQTT
- Forwarding mode
- UDP Packet Forward / Chirpstack MQTT Forwarder
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | GW-1000 |
| Field radio interface | LoRaWAN |
| Backhaul options | 4G / Ethernet / Wi-Fi |
| Wi-Fi configuration | 2.4G |
| Configuration methods | Web / MQTT |
| Forwarding modes | UDP Packet Forward / Chirpstack MQTT Forwarder |
| Regional band options | 433 / 470 / 868 / 915 / 923 |
| Pictured DC supply | 9–28 V DC |
| Serial interface | RS-485 |
| Ethernet connections | WAN / LAN |
| Brand | WKSENSOR |
| Product reference | HH-1081105571841 |
Application scenarios
Traffic, irrigation, energy management and water networks are application areas. Other applications include buildings, power, factories, oil and petrochemicals, and fire protection.
Water networks
Water treatment basins and utility pipework.
Power
Outdoor electrical substation equipment.
