HPT-701
LoRa Gateway
A LoRa data-collection gateway with serial and Ethernet interfaces, configurable radio bands and network-protocol options.
- Forwarding mode
- UDP Packet Forward
- Radio-band options
- 433 MHz / 470–510 MHz
- Field and network interfaces
- RS-485 / Ethernet
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
The HPT-701 is a LoRa gateway for data collection through radio, serial and Ethernet interfaces. Protocol and forwarding options include Modbus RTU/TCP, TCP/IP, MQTT and UDP packet forwarding.

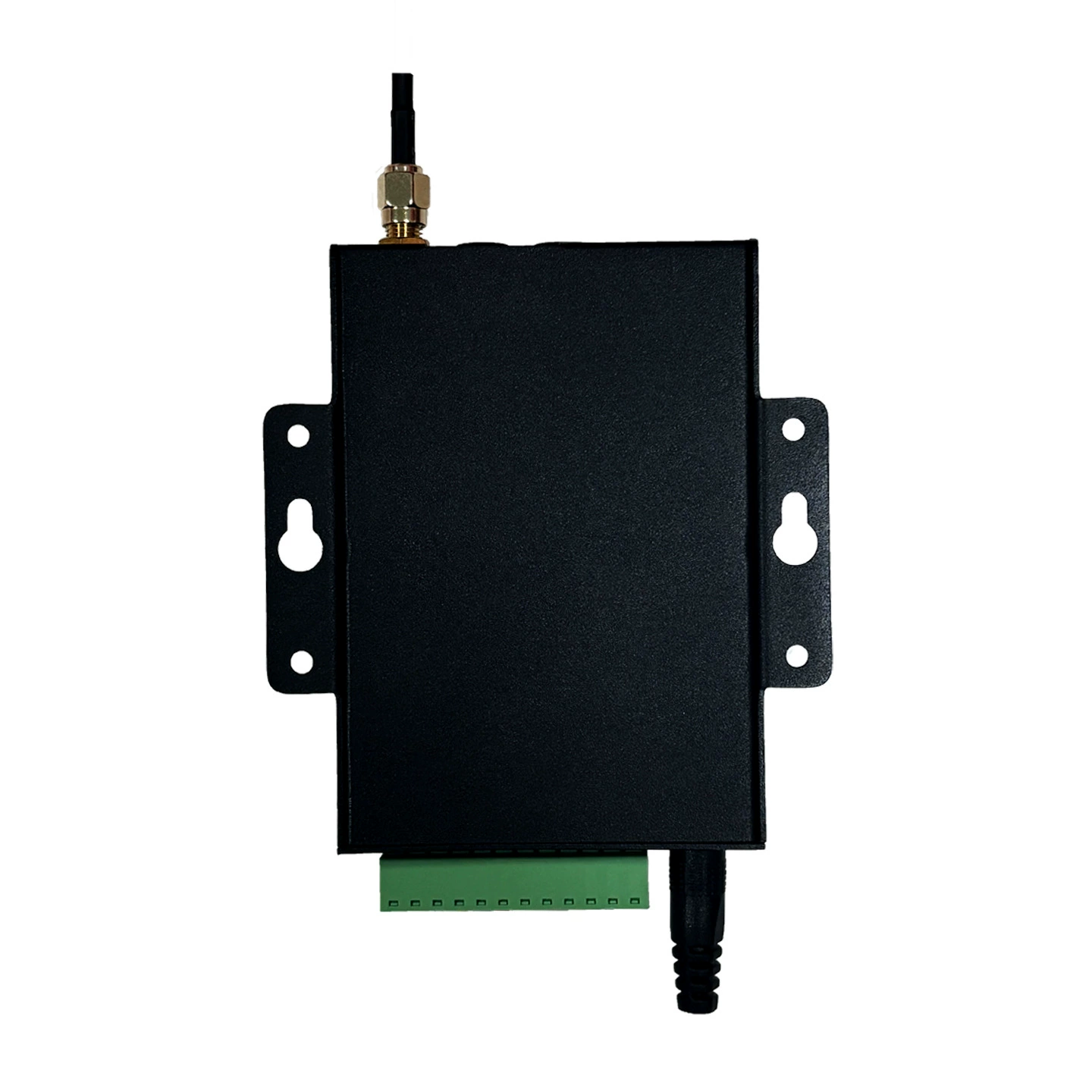

Gateway and antenna arrangement
LoRa data collection with 433 MHz or 470–510 MHz band options. A cable-connected antenna is shown with the gateway.
Mounting and power reference
Side ears provide the mounting points. The illustrated gateway is marked for a 6–35 VDC supply, with power and serial interfaces identified at the lower edge.
Terminal groups
The numbered legends below follow the illustrated 12-contact gateway reference.
| Group / contacts | Printed legends |
|---|---|
| Power · 1 / 2 | 1: VCC · 2: GND |
| TTL · 3 / 4 | 3: RX · 4: TX |
| RS-232 · 5 / 6 | 5: RX · 6: TX |
| RS-485 · 7 / 8 | 7: A · 8: B |
| TTL · 9 / 10 | 9: RX1 · 10: TX1 |
| GPIO · 11 / 12 | 11: P0 · 12: P1 |
Case and mounting dimensions
| Case height | 96.86 |
|---|---|
| Case and lower terminal | 107.5 |
| Upper connector projection | 9.5 |
| Mounting-ear projection | 11.1 |
| Depth | 24 |
| Mounting plate | 0.9 |
Power socket and terminal edge
The power socket sits beside the terminal strip in the illustrated edge view.
Configuration and selection
- Radio band
- 433 MHz or 470–510 MHz.
- Ordering reference
- The pictured panel lists HPT-701-4G, HPT-701-5G, HPT-701-ET and a custom-configuration choice.
- Interface and protocol
- Serial or Ethernet integration, with Modbus RTU/TCP, TCP/IP and MQTT references.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPT-701 |
| Product type | LoRa gateway |
| Radio-band options | 433 MHz / 470–510 MHz |
| Field and network interfaces | RS-485 / Ethernet |
| Serial-interface references | TTL / RS-232 / RS-485 |
| Protocol options | Modbus RTU / Modbus TCP |
| Network-protocol references | TCP/IP / MQTT |
| Forwarding mode | UDP Packet Forward |
| Pictured supply voltage | 6–35 VDC |
| Pictured ordering references | HPT-701-4G / HPT-701-5G / HPT-701-ET / custom configuration |
| Drawing-reference case height | 96.86 mm |
| Drawing-reference depth | 24 mm |
| Brand | WKSENSOR |
| Product reference | HH-1091720932420 |
Application scenarios
Applications include traffic systems, irrigation, energy management and water utilities. Other applications include buildings, power, factories, oil and petrochemicals, and fire protection.
Water
Water-utility and irrigation data-collection applications.
Power and energy
Power-sector and energy-management applications.
