HPT-6C
Ceramic Pressure Transmitter
Ceramic pressure transmitter with a 304 stainless-steel pressure connection and configurable voltage, current or RS-485 output versions.
Ceramic sensing element304 stainless-steel pressure connectionGauge or absolute-pressure versionsVoltage, current or RS-485 output versions
- Pressure-span options
- −0.1–5 MPa; selected span
- Accuracy
- 0.5% FS
- Output options
- Voltage / current / RS-485; selected version
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Ceramic pressure transmitter
Right-angle electrical connectors and threaded pressure connections.

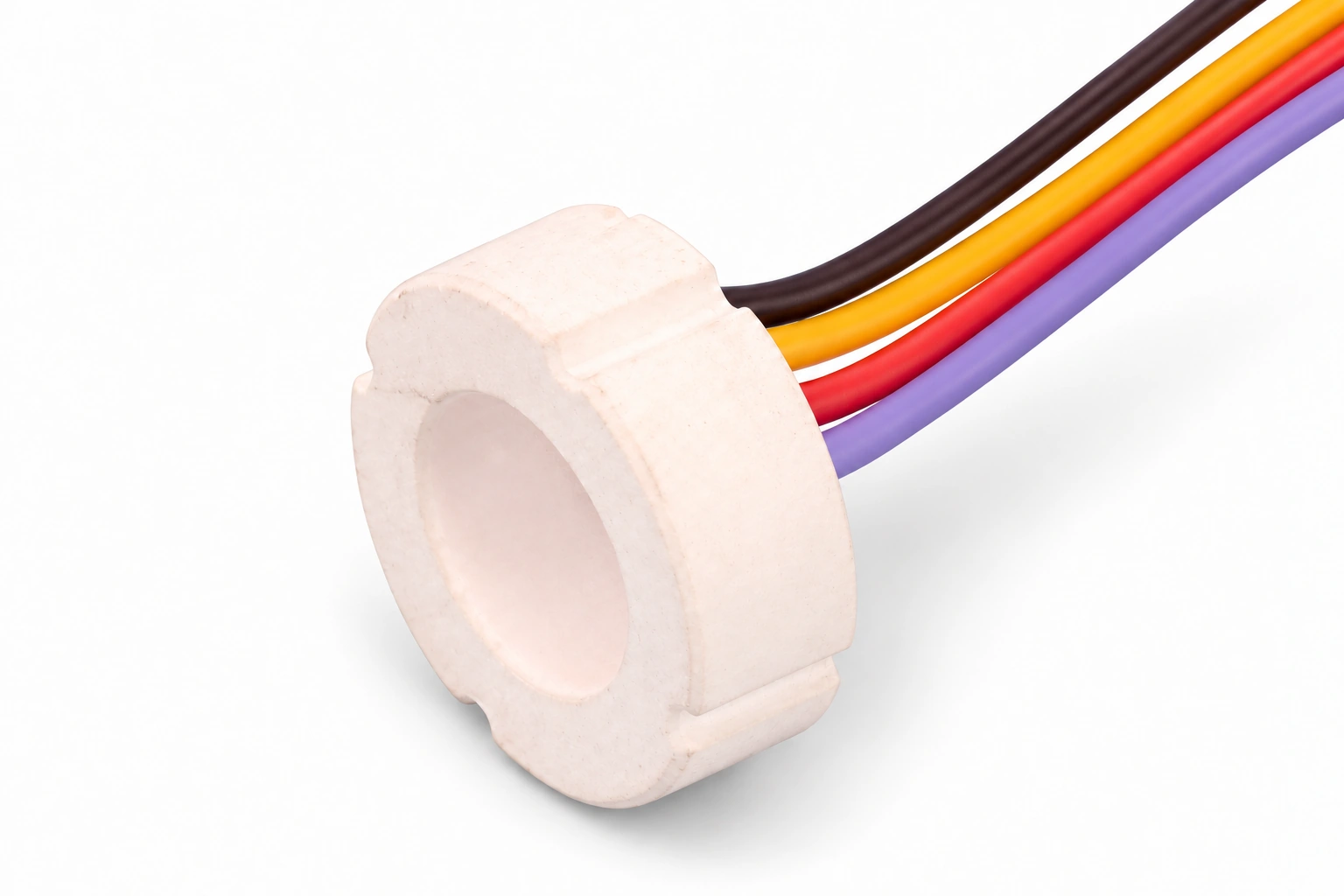

Ceramic sensing element
Ceramic sensing element with attached leads.
- Pressure connection
- 304 stainless steel with configurable thread options.
- Electrical connection
- Customizable wiring configuration.
Pressure and signal options
- Model references
- HPT-6C; HPT-6 ceramic configuration.
- Pressure reference
- Gauge or absolute; selected version.
- Output
- Voltage, current or RS-485; selected version.
- Connections
- Configurable electrical connection and pressure thread.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPT-6C |
| Pressure-span options | −0.1–5 MPa; selected span |
| Pressure-reference options | Gauge / absolute; selected version |
| Supply voltage | 12–36 V DC |
| Accuracy | 0.5% FS |
| Ambient temperature | −20–60 °C |
| Ingress protection | IP65 |
| Configuration weight | 80 g |
| Output options | Voltage / current / RS-485; selected version |
| Pressure-connection material | 304 stainless steel |
| Mounting | Threaded; configurable connection |
| Brand | WKSENSOR |
| Product reference | HH-777109433683 |
Application scenarios
Pressure sensing for automotive and medical equipment.
Oil
Oilfield equipment and pipework.
Chemicals
Process vessels and columns.
Power
Substation equipment.
Energy
Photovoltaic arrays.
Water
Water-treatment channels.
Industrial automation.
