HPT-6
Diffused Silicon Pressure Transmitter
A diffused-silicon transmitter for liquid or gas pressure, with configurable electrical and process connections. Family configurations include HPT-6X local indication, HPT-6M aviation connection, flange and wired split-display assemblies.
- Pressure spans
- Selected spans up to 250 MPa
- Accuracy options
- ±0.1% FS / ±0.5% FS
- Output versions
- 4–20 mA / RS485
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Rectangular-connector configuration
Diffused-silicon liquid or gas pressure measurement, with current and RS485 output versions.
Rectangular-connector dimensions
114 mm overall height, 50 mm connector width and 16 mm threaded projection. These dimensions describe the rectangular-connector reference shown in the drawing.

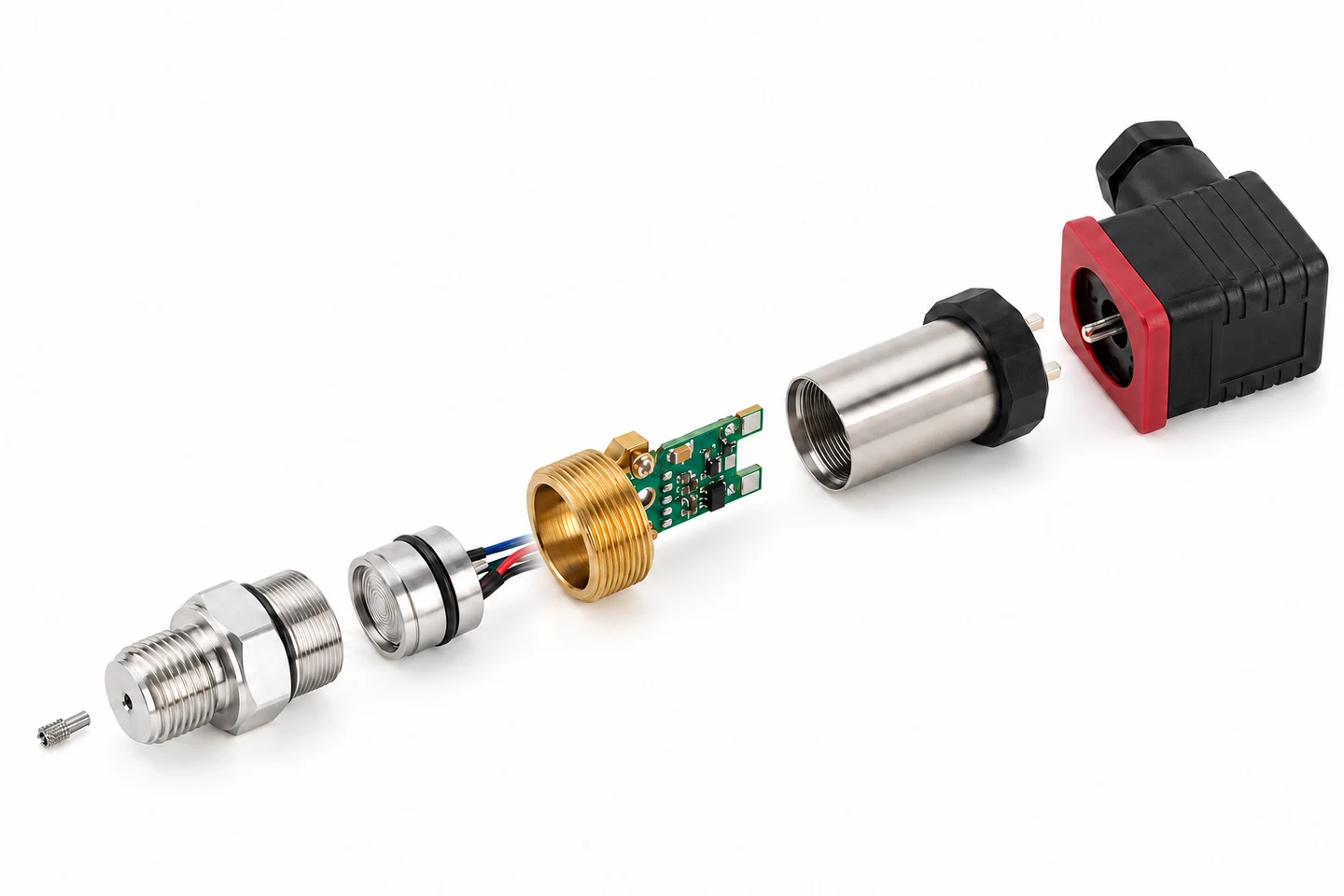

DIN-connector construction reference
Separated pressure fitting, sensing element, circuit carrier, outer sleeve and rectangular connector with its red seal.
Connection details

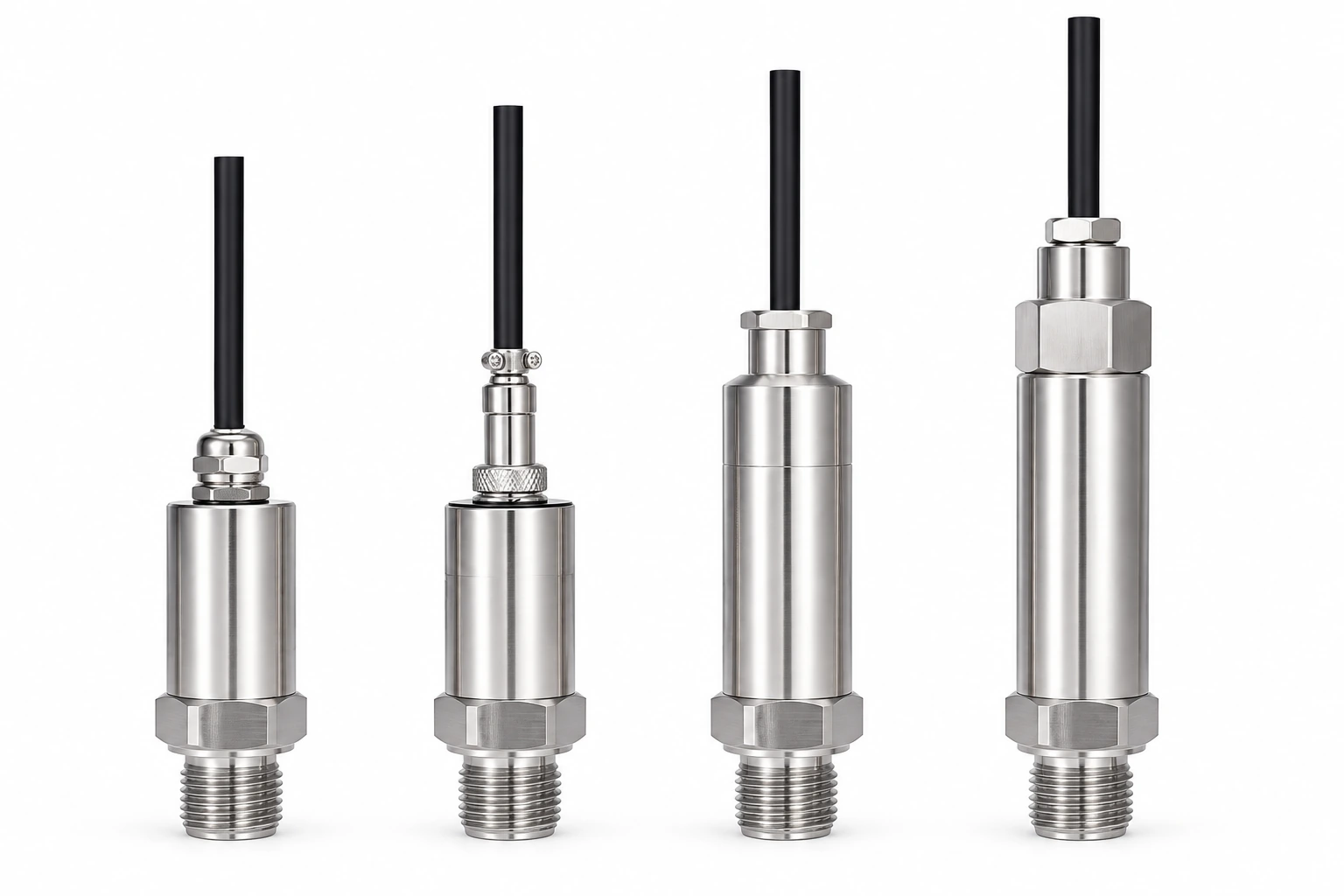

Electrical-exit configurations
1. Direct cable
Cable emerging through a compact upper gland.
2. Plug-in connection
Knurled coupling below the upper cable.
3. Raised cable entry
Cylindrical cable-entry shoulder above the body.
4. Extended cable entry
Raised hexagonal and cylindrical entry fittings.

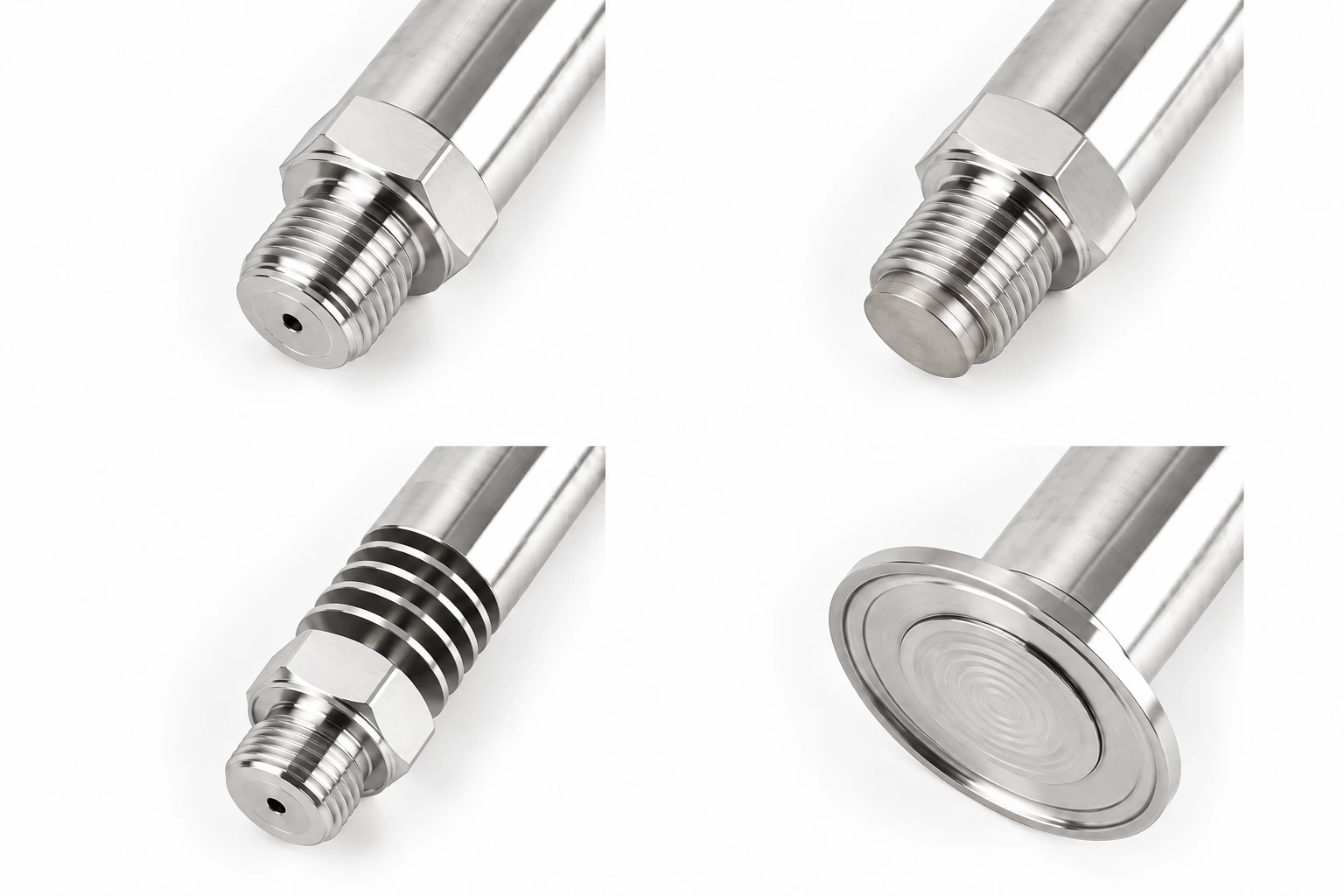

Process-end configurations
1. Threaded pressure port
External thread with a small central pressure opening.
2. Flat-face configuration
Threaded fitting terminating in a flat circular face.
3. Finned configuration
Cooling fins above a threaded pressure fitting.
4. Clamp-face configuration
Circular flange with a corrugated face.
Assembly variants
These are separate assembly alternatives within the HPT-6 family.

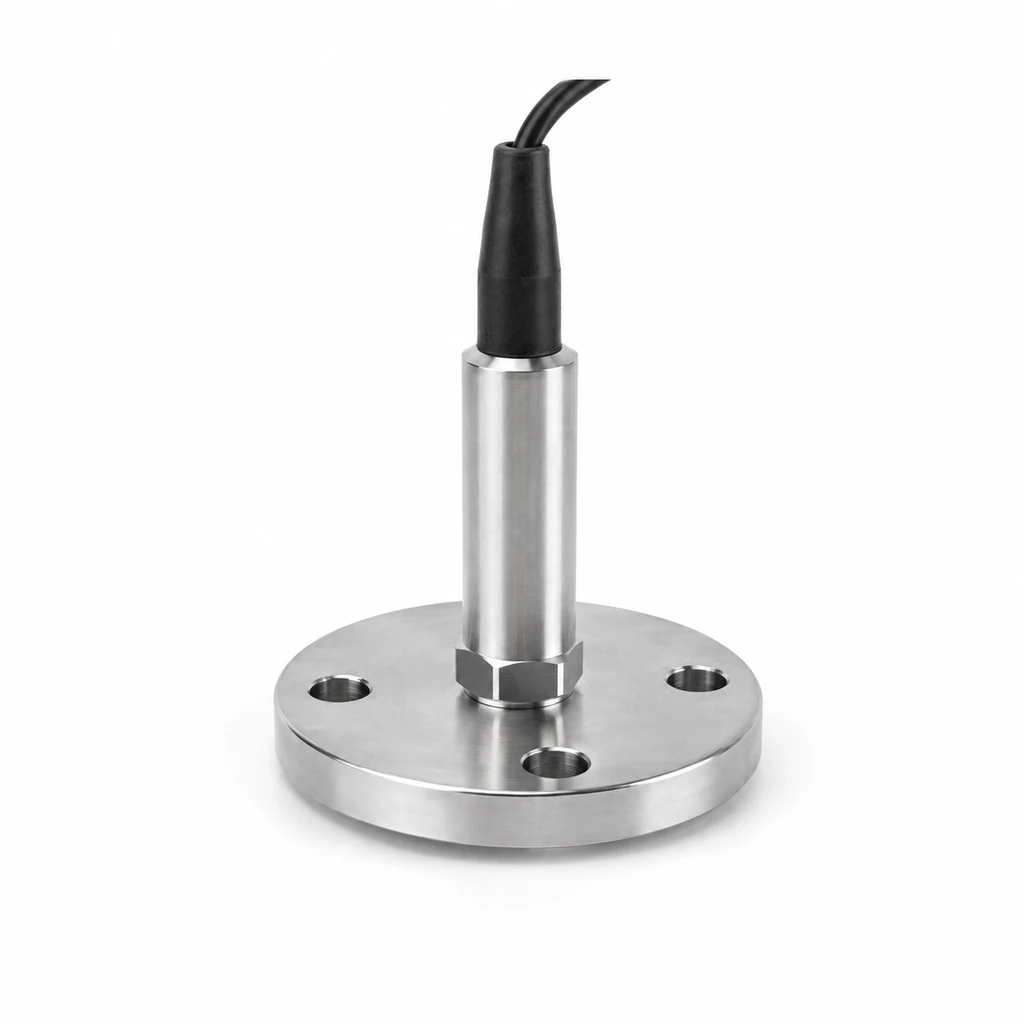

Flange configuration
Direct cable above a cylindrical body and hexagonal fitting, ending in a circular flange.

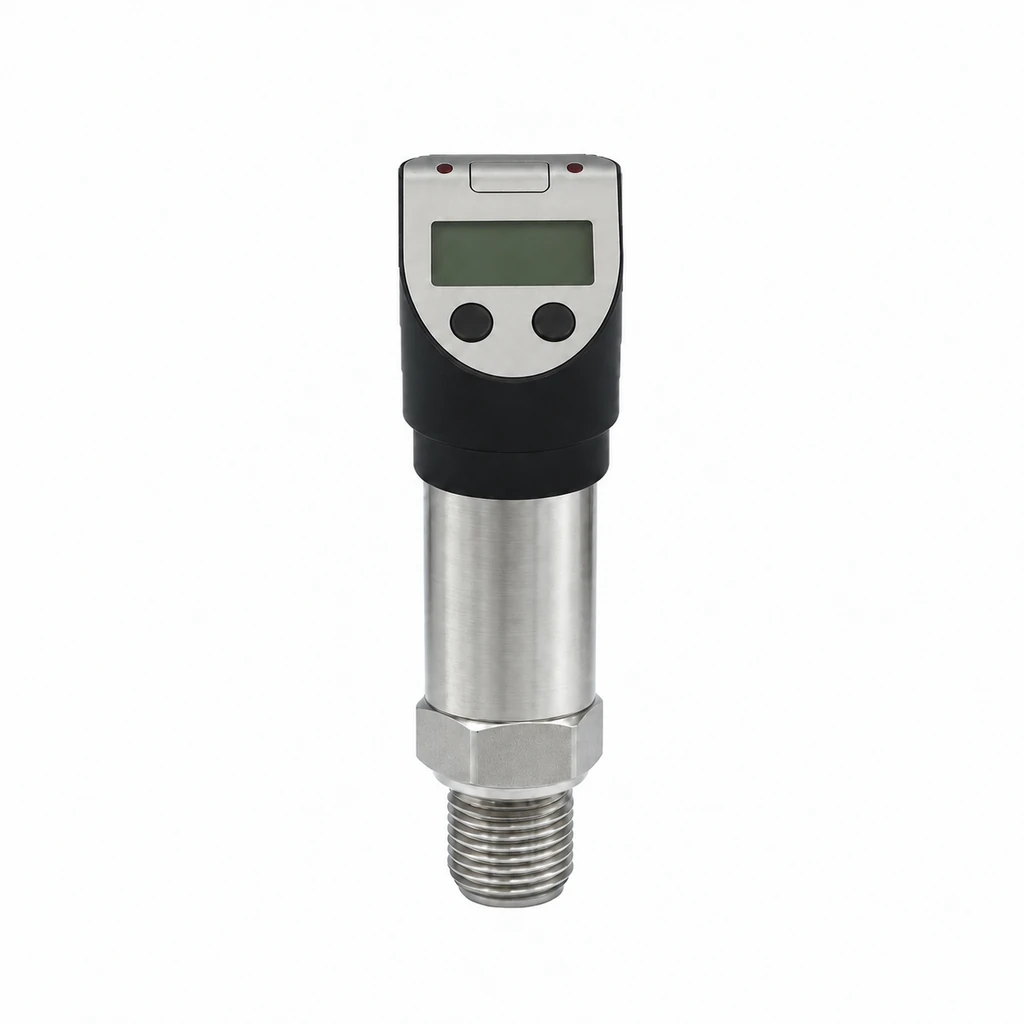

HPT-6X local-display configuration
Display head above a cylindrical metal body and threaded fitting.

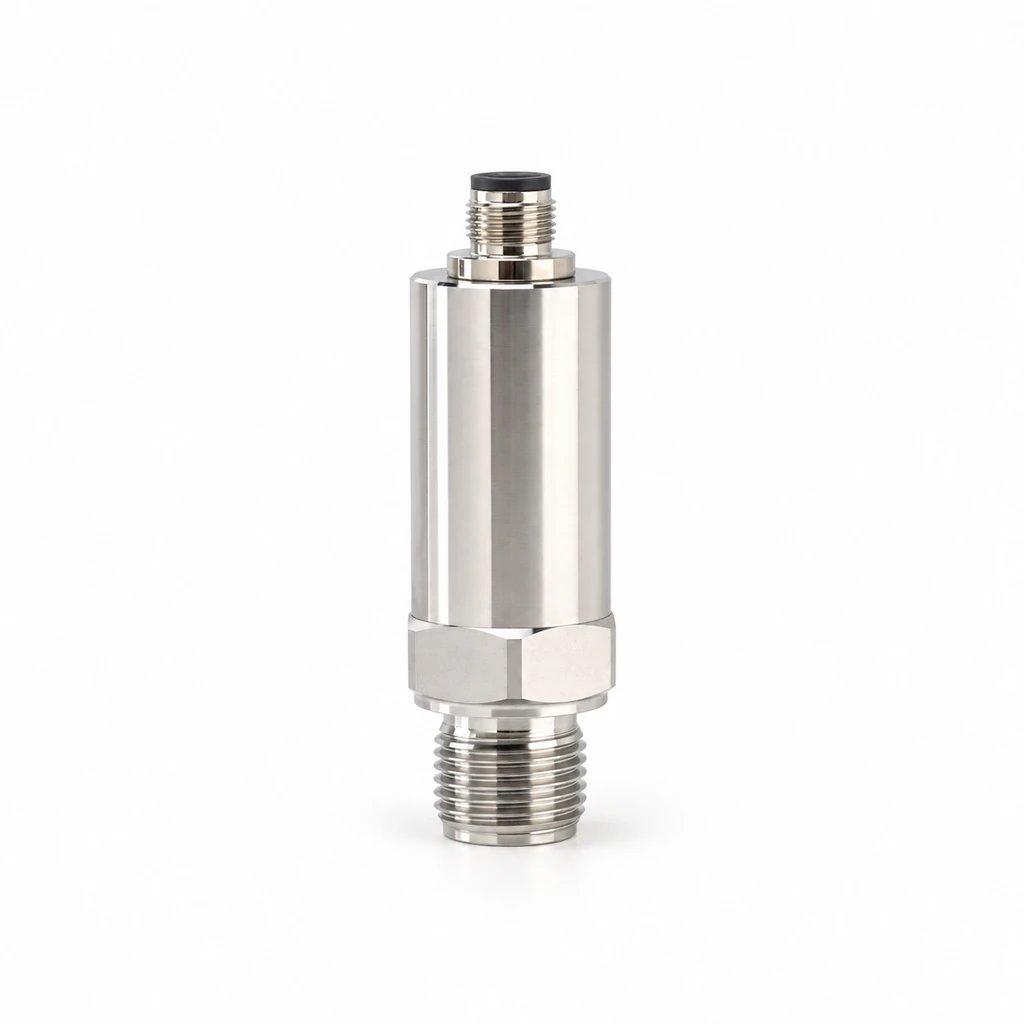

HPT-6M aviation-connector configuration
Circular connector with a black insert above the metal body, hexagonal fitting and lower process thread.

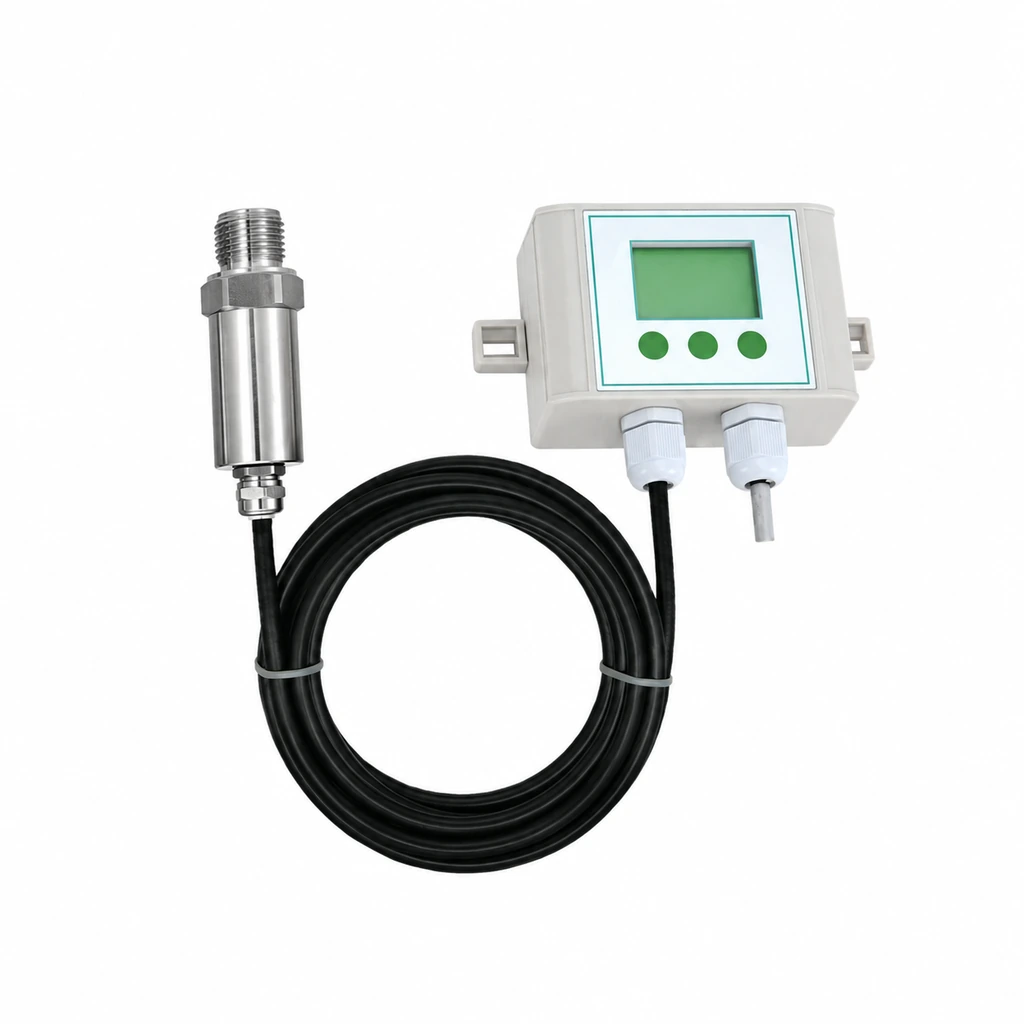

Wired split-display configuration
A coiled cable links the steel pressure probe to a separate wall-mounted enclosure with a display window and three green control areas.
Pressure and signal options
- Flange version
- Flush-diaphragm configuration for viscous or colloidal media.
- HPT-6X local display
- Local-display assembly; a 2500 kPa selection is a separate configuration.
- HPT-6M aviation connector
- 4–20 mA or 0–10 V output configuration.
- Wired split display
- Cable-linked pressure probe and wall-mounted display; 4–20 mA, 0–10 V or RS485 version.
- Output
- 4–20 mA / RS485 versions; series 0–5 V option
- Pressure reference
- Gauge, negative-gauge or absolute-pressure configuration.
- Electrical exit
- Rectangular connector / direct cable / plug-in / raised or extended cable entry
- Process end
- Threaded port / flat face / fins / clamp face
- Process-fitting material
- Series 304 / 316 stainless steel / titanium / PTFE options
Stock pressure-span and thread combinations
Each combination is a separate 4–20 mA, nominal 24 V DC configuration.
| Pressure span | Process thread |
|---|---|
| 0–16 bar | G1/4 |
| 0–10 bar | G1/4 |
| 0–10 bar | G1/2 |
| 0–16 bar | G1/2 |
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPT-6 |
| Sensing principle | Diffused silicon |
| Compatible media | Liquids / gases |
| Nominal supply | 24 V DC |
| Series supply configuration | 12–36 V DC |
| Output versions | 4–20 mA / RS485 |
| Series voltage-output option | 0–5 V |
| Pressure spans | Selected spans up to 250 MPa |
| Accuracy options | ±0.1% FS / ±0.5% FS |
| Pressure-reference options | Gauge / negative gauge / absolute; selected configuration |
| Ambient-temperature configuration | −20–60 °C |
| Enclosure protection | IP65 |
| Process connection | Threaded |
| Series process-fitting material options | 304 / 316 stainless steel / titanium / PTFE |
| Brand | WKSENSOR |
| Product reference | HH-852532817000 |
Application scenarios
Pressure monitoring in water-distribution networks, gas-distribution networks and vacuum systems.
Oil
Pumpjacks and oilfield pipework.
Chemicals
Process towers, vessels and pipework.
Power
Substation equipment and support structures.
Energy
Solar-panel arrays in an open field.
Water
Treatment basins and plant walkways.
Industrial automation.
