SBW-11

Temperature Transmitter

Integrated temperature transmitter with an aluminum head enclosure, configurable probe length and 4–20 mA, 0–10 V or RS485 output versions.

Class A Pt100 configuration4–20 mA, 0–10 V or RS485 output versionsConfigurable probe lengthAluminum head enclosure

RTD temperature-span options: -50–400 °C; selected span
Accuracy class: 0.5% FS; reference configuration
Output options: 4–20 mA / 0–10 V / RS485 versions

Supplied by WKSENSOR. Ask us about pricing, availability and delivery.

Product overview

Head, fitting and probe

A closed cover and retaining chain sit above the aluminum electronics housing. A hexagonal connection fitting joins the head to the stainless-steel temperature probe.

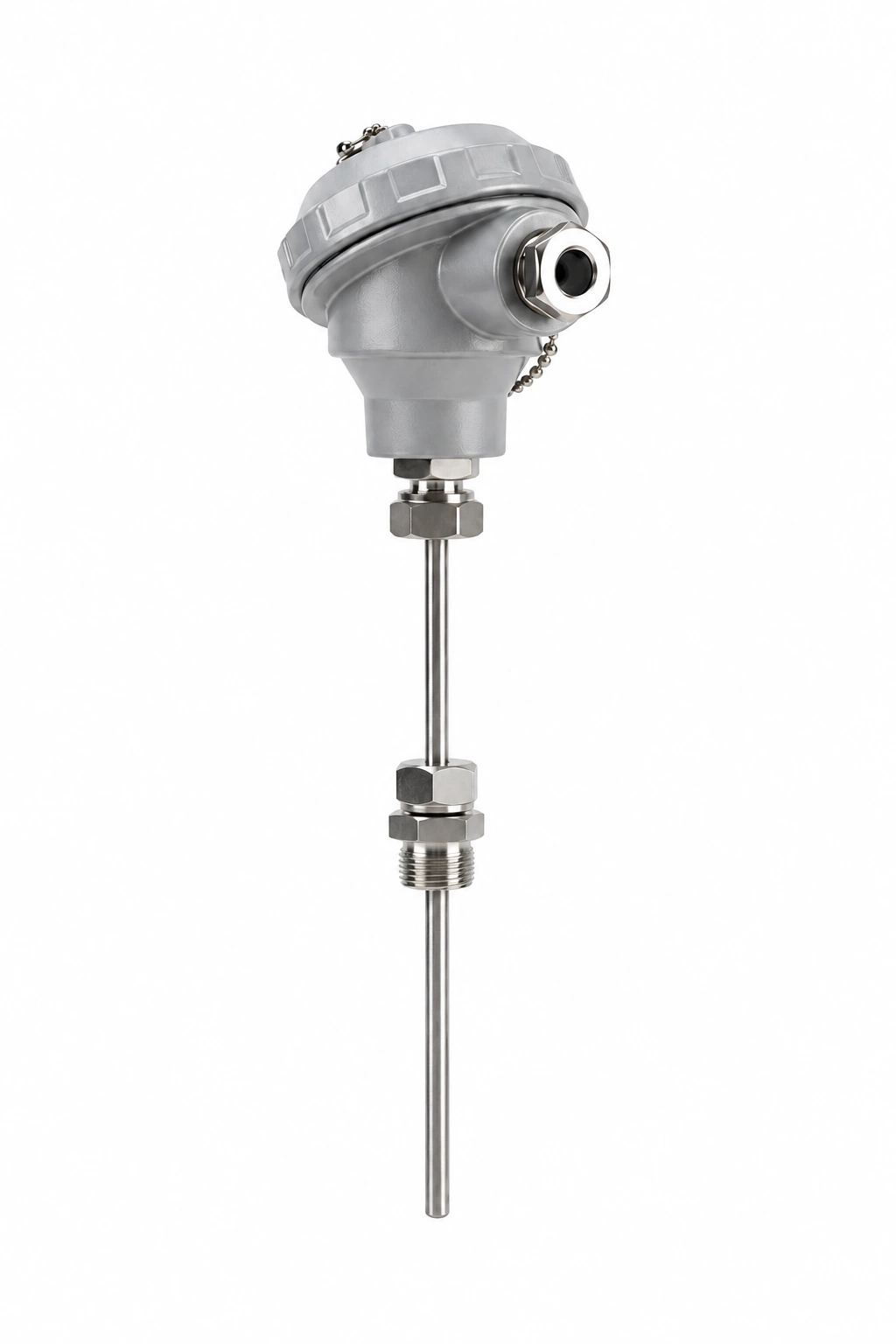

Adjustable threaded fitting

Long-probe configuration with a side cable entry and a movable threaded fitting for adjustable insertion depth.

Configuration and selection

Sensing and signal configuration

Sensing element: RTD or thermocouple versions; Class A Pt100 applies to the RTD configuration.
Output signal: 4–20 mA, 0–10 V or RS485 versions.
RTD temperature span: -50–400 °C; selected span.

Probe and process connection

Probe length: Configurable up to 500 mm.
Probe material: 304 or 316L stainless steel.
Process thread: M20×1.5 or G1/2.

Technical reference

Specifications and options

Technical specifications for SBW-11 Temperature Transmitter
Parameter	Specification or option
Model	SBW-11
Function	Integrated temperature transmitter
Sensing-element options	RTD / thermocouple; Class A Pt100 for the RTD configuration
RTD temperature-span options	-50–400 °C; selected span
Accuracy class	0.5% FS; reference configuration
Supply voltage	12–36 V DC; reference configuration
Output options	4–20 mA / 0–10 V / RS485 versions
Ambient temperature	-20–60 °C
Probe-length options	Configurable up to 500 mm
Housing material	Aluminum
Probe material options	304 / 316L stainless steel
Process thread options	M20×1.5 / G1/2
Brand	WKSENSOR
Product reference	HH-777395339836
