SBW-6
Integrated Temperature Transmitter
Compact temperature transmitter with RTD or thermocouple configurations, current, voltage or RS485 signal options, and a choice of electrical connections.
- Measuring-span configurations
- Selected spans up to 400 °C
- Signal-interface configurations
- 4–20 mA / voltage / RS485
- Nominal supply
- 24 V DC
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Threaded integrated assembly
A right-angle connector and red sealing ring sit above the cylindrical body. The short temperature probe extends below the hexagonal threaded fitting.
Clamp configuration

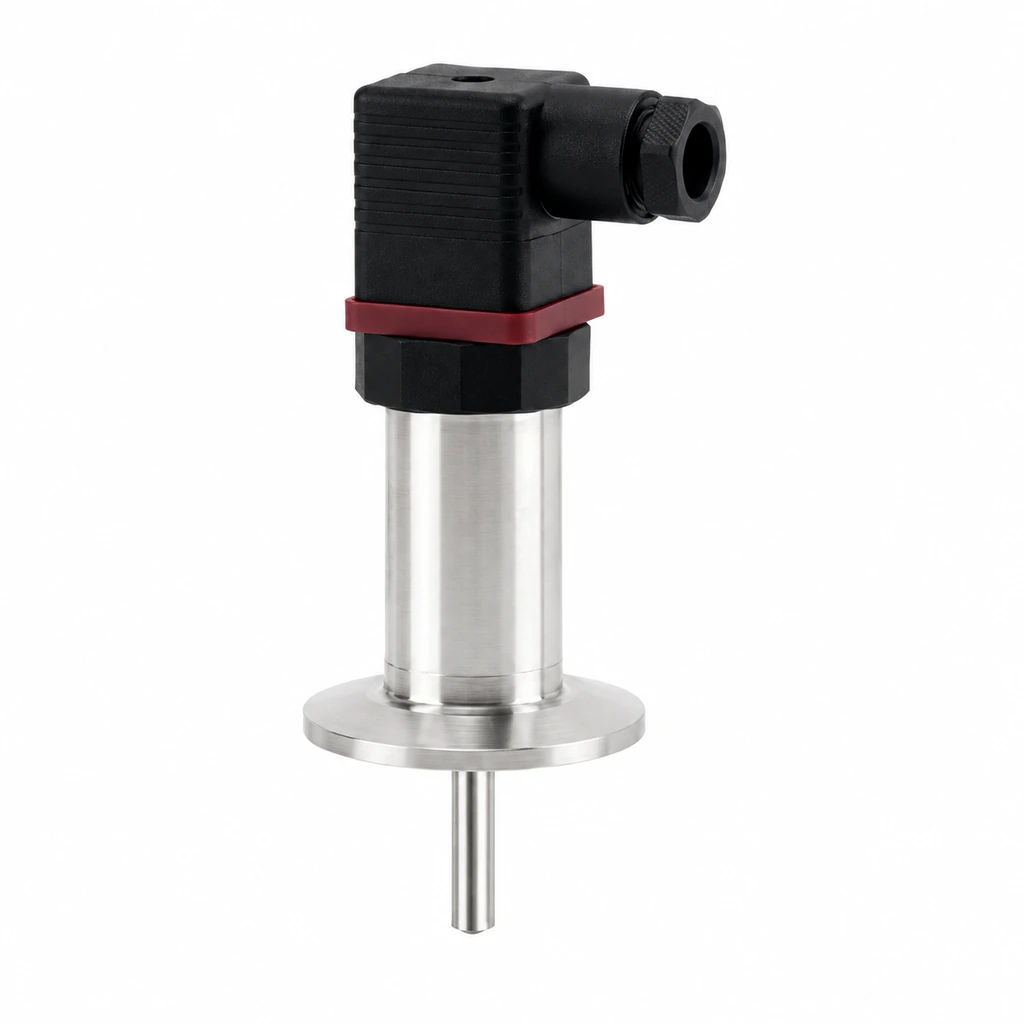

A round clamp plate surrounds the short sensing rod beneath the narrow transmitter body.

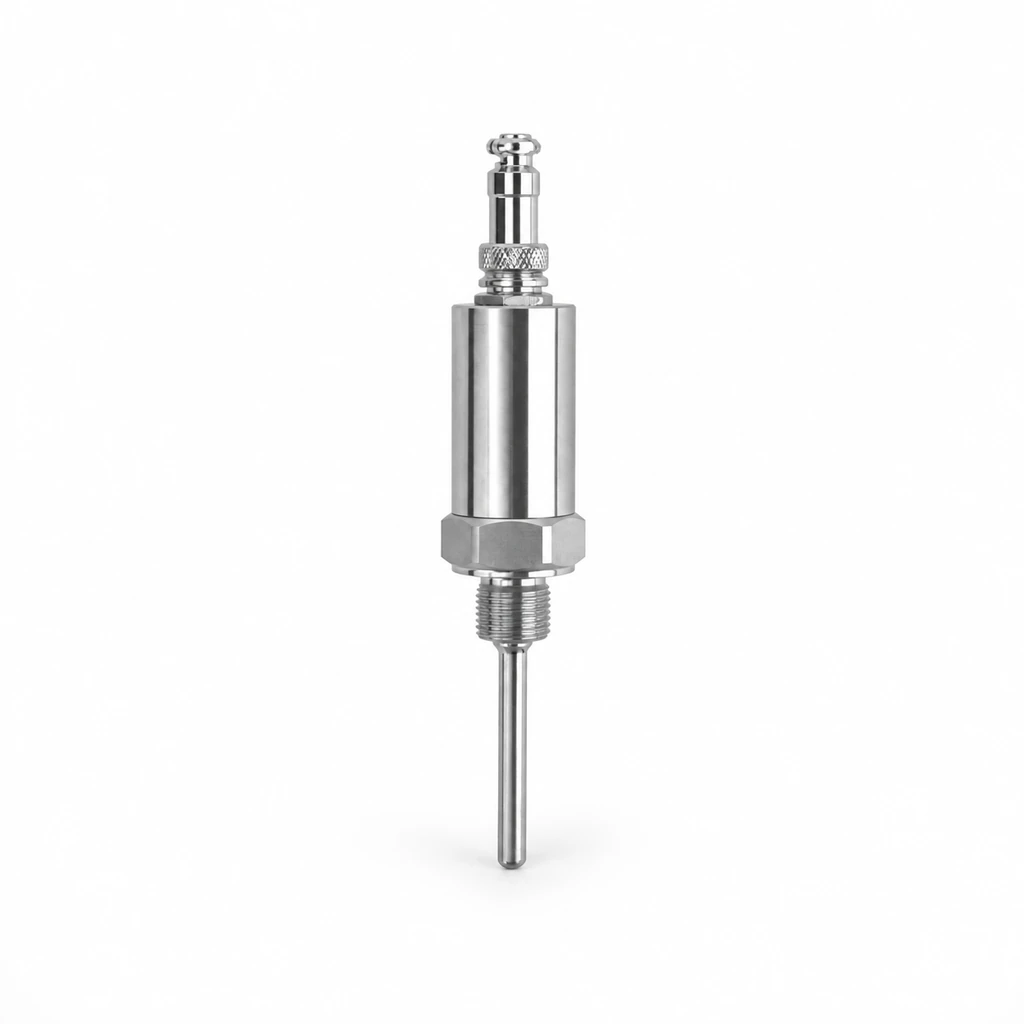

Aviation connector
Metal connector above the transmitter body.
Cable-connected configuration

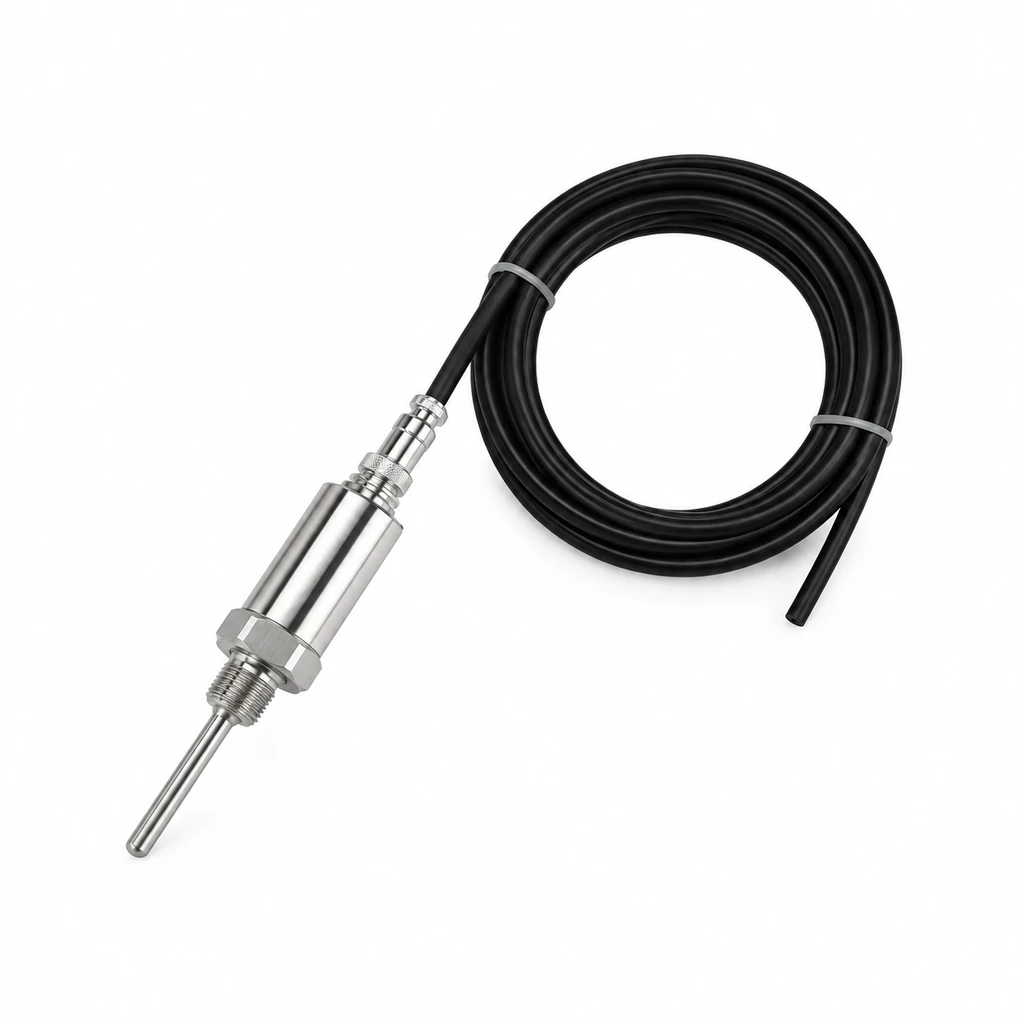

Threaded temperature probe with an upper cable connection.
Probe and process thread

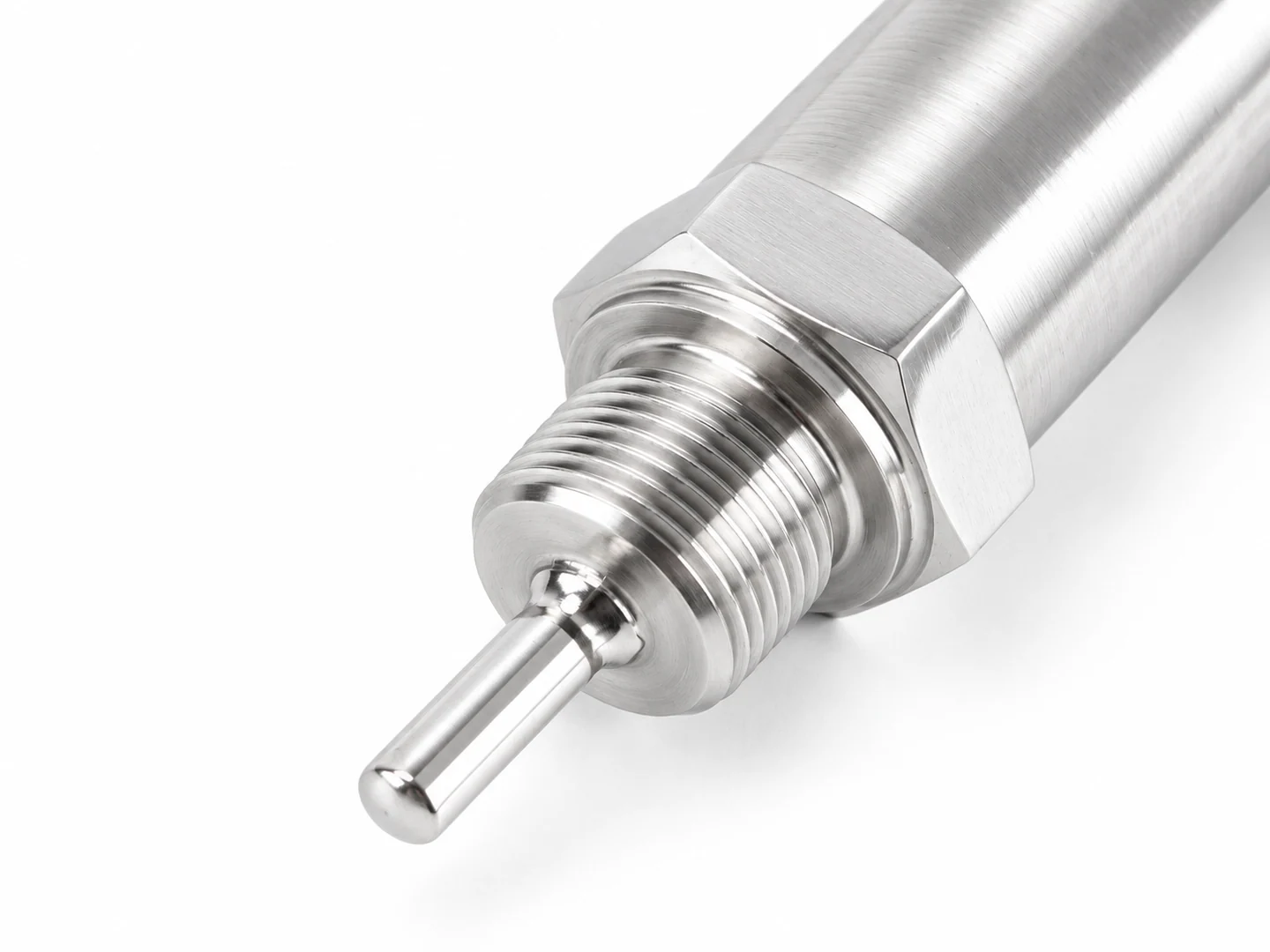

The closed-ended sensing probe extends below the process thread. A hexagonal shoulder connects the fitting to the transmitter body.
- Temperature element
- RTD or thermocouple configuration; Class A Pt100 is an RTD option.
- Probe options
- 304 or 316L stainless steel, with an optional protection sleeve.
Configuration and selection
- Element and span
- RTD or thermocouple; selected temperature span up to 400 °C.
- Signal
- 4–20 mA, voltage or RS485 configuration.
- Electrical connection
- Right-angle connector, aviation connector or cable-connected configuration.
- Process connection
- Threaded or clamp configuration; G1/2, G1/4 and M20×1.5 thread options.
- Additional process configuration
- Flange connection is a series option.
- Probe and sleeve
- 304 or 316L stainless-steel probe; optional protection sleeve.
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | SBW-6 |
| Sensing-element configurations | RTD / thermocouple |
| RTD element option | Class A Pt100 |
| Measuring-span configurations | Selected spans up to 400 °C |
| Nominal supply | 24 V DC |
| Series supply | 12–36 V DC |
| Signal-interface configurations | 4–20 mA / voltage / RS485 |
| Ingress protection | IP65 |
| Process-fitting material options | 304 / 316 stainless steel |
| Probe material options | 304 / 316L stainless steel |
| Thread options | G1/2 / G1/4 / M20×1.5 |
| Series ambient temperature | −20–60 °C |
| Brand | WKSENSOR |
| Product reference | HH-952547886917 |
Application scenarios
Temperature measurement for industrial automation, oil, chemicals, power, energy and water.
