HPT-16T
Digital Temperature Transmitter
The HPT-16T combines a local temperature display with an integrated threaded probe. Signal configurations include 4–20 mA, 0–10 V and RS485 for automation and heating equipment.
- Measuring-span configuration
- −40–400 °C
- Accuracy configuration
- ±0.5% FS
- Signal-interface configurations
- 4–20 mA / 0–10 V / RS485
Supplied by WKSENSOR. Ask us about pricing, availability and delivery.
Product overview
Display and integrated probe
The circular head contains a rectangular viewing window and three front control areas. A short temperature probe extends below the hexagonal threaded fitting.
The integrated threaded probe and digital readout provide temperature indication at the measuring point. The measuring configuration is −40–400 °C.
Configuration and selection
| Current | 4–20 mA |
|---|---|
| Voltage | 0–10 V |
| Communication | RS485 |
Technical reference
Specifications and options
| Parameter | Specification or option |
|---|---|
| Model | HPT-16T |
| Instrument function | Digital temperature transmitter |
| Measuring-span configuration | −40–400 °C |
| Accuracy configuration | ±0.5% FS |
| Supply voltage | 24 V |
| Signal-interface configurations | 4–20 mA / 0–10 V / RS485 |
| Brand | WKSENSOR |
| Product reference | HH-836240302043 |
Application scenarios
Temperature monitoring for industrial automation, pipe heating, oil, chemicals, power, energy and water.

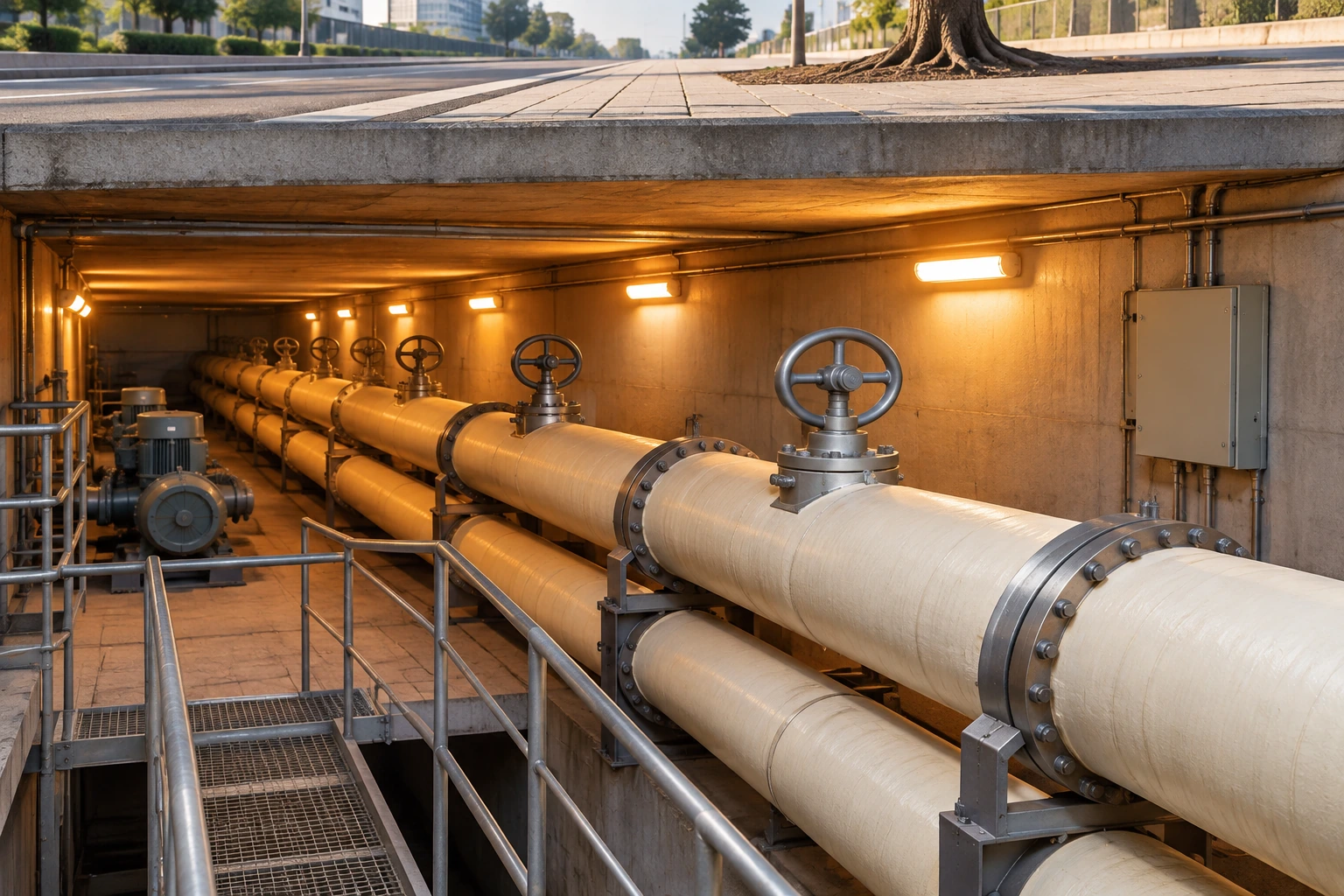

Pipe heating
Large pipework and heating equipment.
Oil
Pumpjacks, pipework and platforms in an oil field.
Chemicals
Processing columns, vessels and connecting pipework.
Power
Transformers, insulators and overhead conductors in a substation.
Energy
Rows of photovoltaic panels in an open solar field.
Water
Water-treatment basins, service walkways and railings.
